MCC310

MCC310 Series

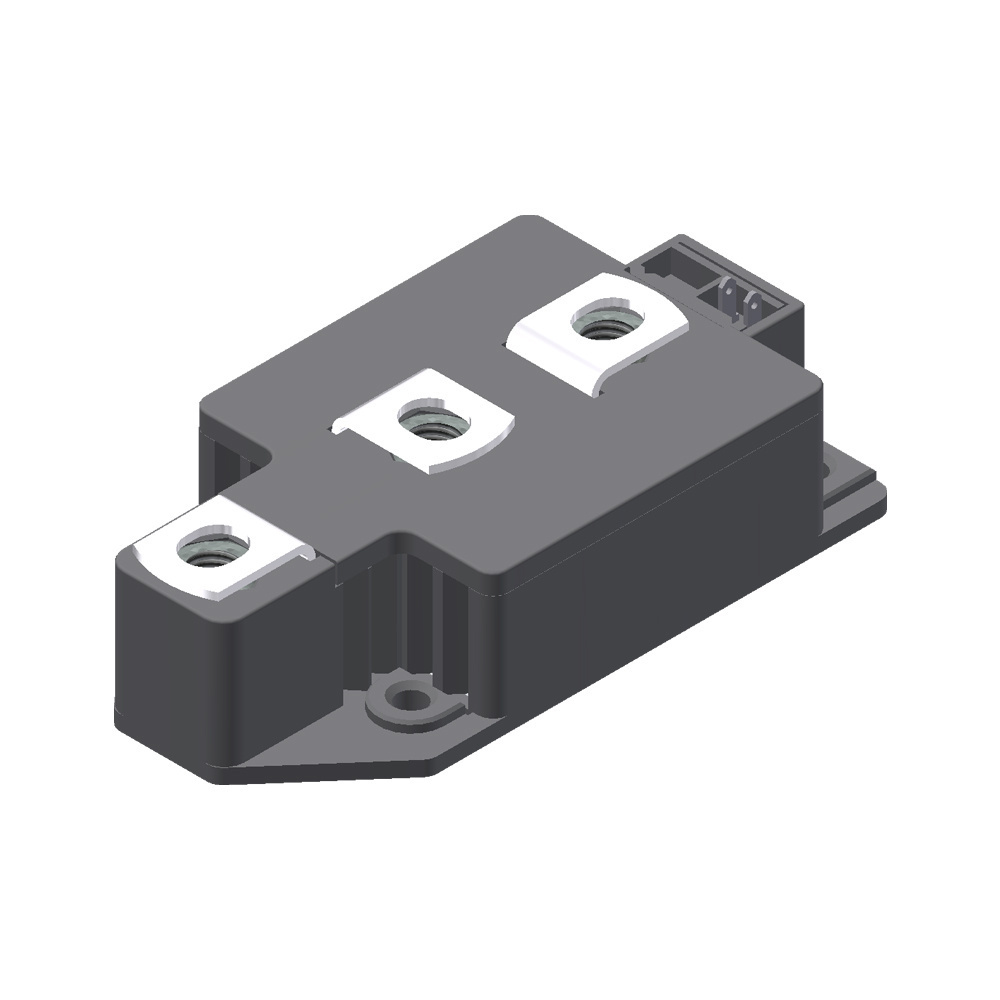

Bipolar Module - Thyristor Y2-DCB

Manufacturer: LITTELFUSE

Catalog

Bipolar Module - Thyristor Y2-DCB

Description

AI

The Dual Thyristor Modules Portfolio offers various packages and breakdown voltages up to 2200V.

Catalog

Bipolar Module - Thyristor Y2-DCB

Part	Current - On State (It (RMS)) (Max) [Max]	Package / Case	Voltage - Off State	Current - On State (It (AV)) (Max) [Max]	Current - Non Rep. Surge 50, 60Hz (Itsm)	Structure	Number of SCRs, Diodes	Current - Gate Trigger (Igt) (Max) [Max]	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Gate Trigger (Vgt) (Max) [Max] [custom]	Current - Hold (Ih) (Max) [Max]
LITTELFUSE MCC310-18IO1	500 A	Module	1.8 kV	320 A	9200 A 9800 A	Series Connection - All SCRs	2 SCRs	150 mA	Chassis Mount	-40 °C	140 °C	2 V	150 mA
LITTELFUSE MCC310-12IO1	500 A	Module	1.2 kV	320 A	9200 A 9800 A	Series Connection - All SCRs	2 SCRs	150 mA	Chassis Mount	-40 °C	140 °C	2 V	150 mA
LITTELFUSE MCC310-08IO1	500 A	Module	800 V	320 A	9200 A 9800 A	Series Connection - All SCRs	2 SCRs	150 mA	Chassis Mount	-40 °C	140 °C	2 V	150 mA
LITTELFUSE MCC310-14IO1	500 A	Module	1.4 kV	320 A	9200 A 9800 A	Series Connection - All SCRs	2 SCRs	150 mA	Chassis Mount	-40 °C	140 °C	2 V	150 mA
LITTELFUSE MCC310-16IO1	500 A	Y2-DCB	1.6 kV	320 A	9200 A 9800 A	Series Connection - All SCRs	2 SCRs	150 mA	Chassis Mount	-40 °C	140 °C	2 V	150 mA
