D1225 Series
Manufacturer: Sensata-Crydom
Beta
⌘K

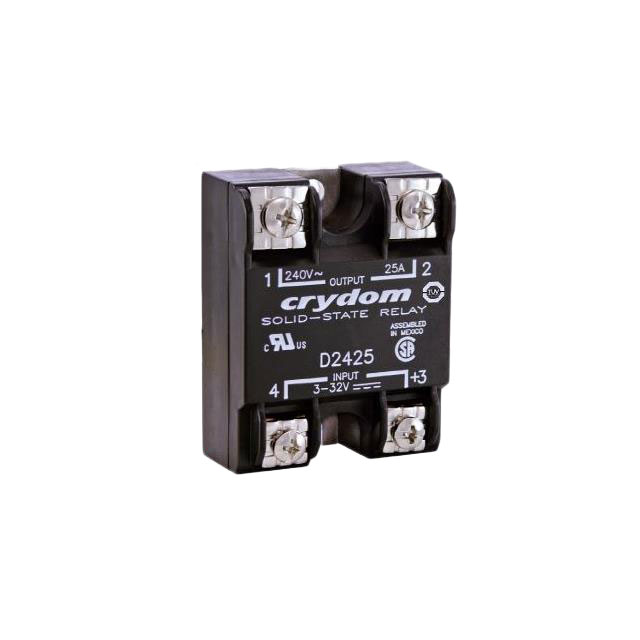

RELAY SSR 12MA 32V DC-IN 25A 32V AC-OUT 4-PIN
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Load Current | Voltage - Input [Min] | Voltage - Input [Max] | Mounting Type | Voltage - Load [Min] | Voltage - Load [Max] | Package / Case | Approval Agency | Termination Style | Circuit | Output Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sensata-Crydom | 80 °C | -40 C | 25 A | 3 V | 32 VDC | Chassis Mount | 24 V | 140 V | Hockey Puck | CE CSA TUV UL | Screw Terminal | SPST-NC (1 Form B) | AC Zero Cross |
 Sensata-Crydom | 80 °C | -40 C | 25 A | 3 V | 32 VDC | Chassis Mount | 24 V | 140 V | Hockey Puck | CE CSA TUV UL | Screw Terminal | AC Zero Cross | |
 Sensata-Crydom | 80 °C | -40 C | 25 A | 3 V | 32 VDC | Chassis Mount | 24 V | 140 V | Hockey Puck | CE CSA cURus TUV | Screw Terminal | AC Zero Cross |
