HSMS Series

Catalog

SINGLE COLOR LEDS RED DIFFUSED 626NM 10MCD

Part	Configuration	Lens Color	Voltage - Forward (Vf) (Typ)	Lens Transparency	Lens Style	Wavelength - Dominant	Package / Case	Height (Max) [z]	Viewing Angle	Color	Millicandela Rating	Mounting Type	Lens Size [y]	Lens Size [x]	Current - Test	Supplier Device Package	Wavelength - Peak	Size / Dimension [y]	Size / Dimension [x]	Height (Max) [z]	Lens Size [diameter]	Height (Max) [Max] [z]

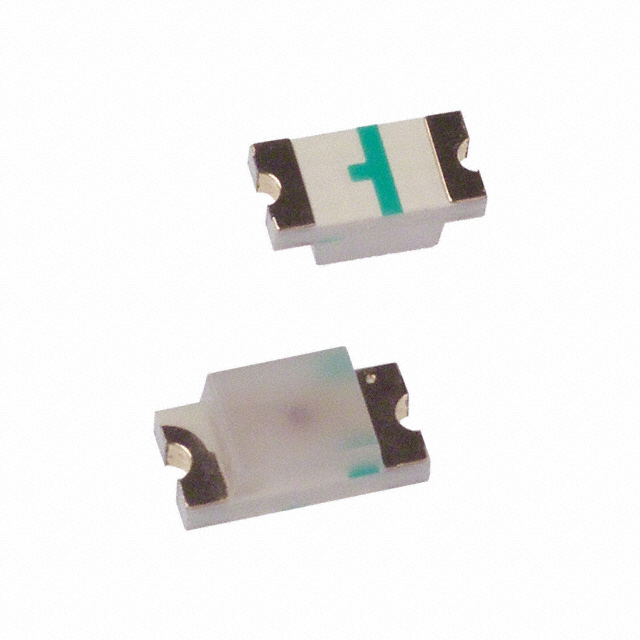

Broadcom Limited HSMS-C150	Standard	White	2.1 V	Diffused	Rectangle with Flat Top	626 nm	1206 (3216 Metric)	1.1 mm	170 °	Red	10 mcd	Surface Mount	1.6 mm	2 mm	20 mA	Chip LED	630 nm	1.6 mm	3.2 mm
Broadcom Limited HSMS-C240
Broadcom Limited HSMS-A100-L00J1	Standard	Colorless	2.2 V	Clear	Round with Flat Top	626 nm	2-PLCC		120 °	Red	15 mcd	Surface Mount			20 mA	2-PLCC	635 nm	2.8 mm	3.2 mm	2.1 mm	2.2 mm
Broadcom Limited HSMS-C170	Standard	White	2.1 V	Diffused	Rectangle with Flat Top	626 nm	0805		170 °	Red	10 mcd	Surface Mount	1.25 mm	1.4 mm	20 mA	Chip LED	630 nm	1.25 mm	2 mm			0.8 mm
