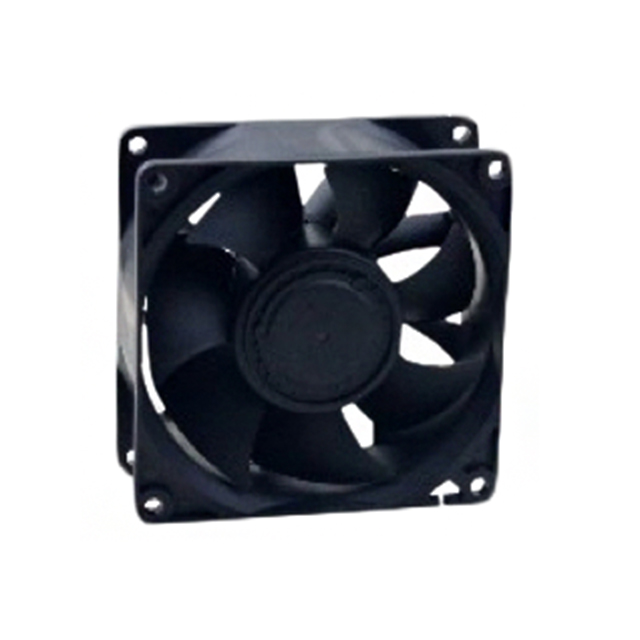

MR9238 Series

Catalog

FAN AXIAL 92X38MM 24VDC WIRE

Part	Current Rating (Amps)	Material - Blade	Material - Frame	Width [y]	Features	Size / Dimension [y]	Size / Dimension [x]	Voltage - Rated	RPM	Bearing Type	Air Flow	Air Flow	Termination	Approval Agency	Weight	Weight	Fan Type	Noise	Static Pressure	Static Pressure
Mechatronics Fan Group MR9238L24B-FSR	0.41 A	Plastic	Plastic	38 mm	Auto Restart	92 mm	92 mm	24 VDC	5000 RPM	Ball	3.06 m³/min	109.2 CFM	2 Wire Leads	CE cUL TUV UL	0.437 lb	198 g	Tubeaxial	50.5 dB(A)
Mechatronics Fan Group MR9238L12B-FSR	0.82 A	Plastic	Plastic	38 mm	Auto Restart	92 mm	92 mm	12 VDC	5000 RPM	Ball	3.06 m³/min	109.2 CFM	2 Wire Leads	CE cUL TUV UL	0.437 lb	198 g	Tubeaxial	50.5 dB(A)
Mechatronics Fan Group MR9238H48B1+6-FSR	400 mA	Plastic	Plastic	38 mm	Auto Restart PWM Control Speed Sensor (Tach)	92 mm	92 mm	48 VDC	7000 RPM	Ball	4.26 mł/min	152 CFM	4 Wire Leads	CE cUL TUV UL	0.437 lb	198 g	Tubeaxial	58.8 dB(A)	298.9 Pa	1.2 in H2O
Mechatronics Fan Group MR9238H48B2-FSR	400 mA	Plastic	Plastic	38 mm	Auto Restart Locked Rotor Sensor	92 mm	92 mm	48 VDC	7000 RPM	Ball	4.26 mł/min	152 CFM	3 Wire Leads	CE cUL TUV UL	0.437 lb	198 g	Tubeaxial	58.8 dB(A)	298.9 Pa	1.2 in H2O
Mechatronics Fan Group MR9238S12B-FSR	0.42 A	Plastic	Plastic	38 mm	Auto Restart	92 mm	92 mm	12 VDC	4000 RPM	Ball	2.46 mł/min	88 CFM	2 Wire Leads	CE cUL TUV UL	0.437 lb	198 g	Tubeaxial	45.3 dB(A)	99.6 Pa	0.4 in H2O
Mechatronics Fan Group MR9238M24B1+61-FSR	580 mA	Plastic	Plastic	38 mm	Auto Restart PWM Control Speed Sensor (Tach)	92 mm	92 mm	24 VDC	6000 RPM	Ball	3.67 mł/min	131 CFM	4 Wire Leads	CE cUL TUV UL	0.437 lb	198 g	Tubeaxial	55.4 dB(A)	219.2 Pa	0.88 in H2O
Mechatronics Fan Group MR9238M24B21-FSR	580 mA	Plastic	Plastic	38 mm	Auto Restart Locked Rotor Sensor	92 mm	92 mm	24 VDC	6000 RPM	Ball	3.67 mł/min	131 CFM	3 Wire Leads	CE cUL TUV UL	0.437 lb	198 g	Tubeaxial	55.4 dB(A)	219.2 Pa	0.88 in H2O
Mechatronics Fan Group MR9238E48B1+6-FSR	580 mA	Plastic	Plastic	38 mm	Auto Restart PWM Control Speed Sensor (Tach)	92 mm	92 mm	48 VDC	8000 RPM	Ball	4.84 m³/min	173 CFM	4 Wire Leads	CE cUL TUV UL	0.437 lb	198 g	Tubeaxial	63.3 dB(A)	383.6 Pa	1.54 in H2O
Mechatronics Fan Group MR9238M48B1+6-FSR	0.26 A	Plastic	Plastic	38 mm	Auto Restart PWM Control Speed Sensor (Tach)	92 mm	92 mm	48 VDC	6000 RPM	Ball	3.67 mł/min	131 CFM	4 Wire Leads	CE cUL TUV UL	0.437 lb	198 g	Tubeaxial	55.4 dB(A)	219.2 Pa	0.88 in H2O
Mechatronics Fan Group MR9238L12B2-FSR	0.82 A	Plastic	Plastic	38 mm	Auto Restart Locked Rotor Sensor	92 mm	92 mm	12 VDC	5000 RPM	Ball	3.06 m³/min	109.2 CFM	3 Wire Leads	CE cUL TUV UL	0.437 lb	198 g	Tubeaxial	50.5 dB(A)
