MPCH0740 Series
Manufacturer: KEMET
Beta
⌘K
FIXED IND 260NH SMD
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Height - Seated (Max) | Height - Seated (Max) [Max] | Mounting Type | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Shielding | Material - Core | Inductance Frequency - Test | Tolerance | Inductance | Package / Case | Current - Saturation (Isat) | DC Resistance (DCR) | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 KEMET | 125 °C | -40 C | 4 mm | 0.157 in | Surface Mount | 0.315 in | 0.264 " | 6.7 mm | 8 mm | Shielded | Metal Composite | 100 kHz | 20 % | 260 nH | Nonstandard | |||

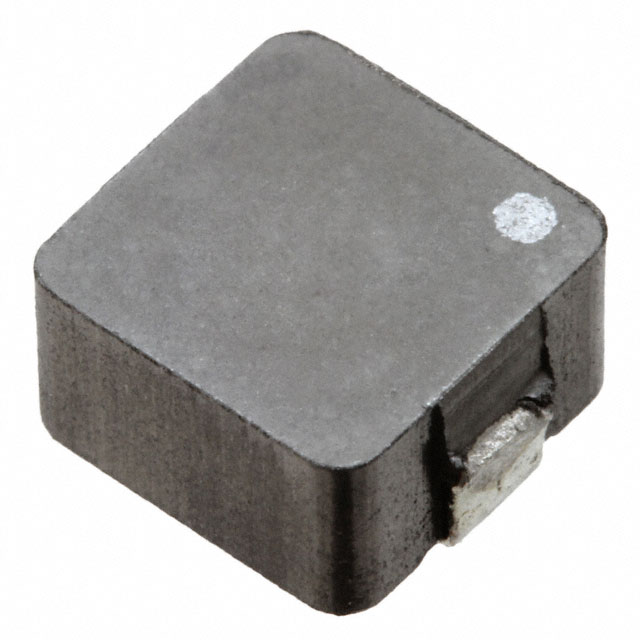

 KEMET | 125 °C | -40 C | 4 mm | 0.157 in | Surface Mount | 0.315 in | 0.264 " | 6.7 mm | 8 mm | Shielded | Metal Composite | 100 kHz | 20 % | 240 nH | Nonstandard | 20 A | 1 mOhm | 27 A |

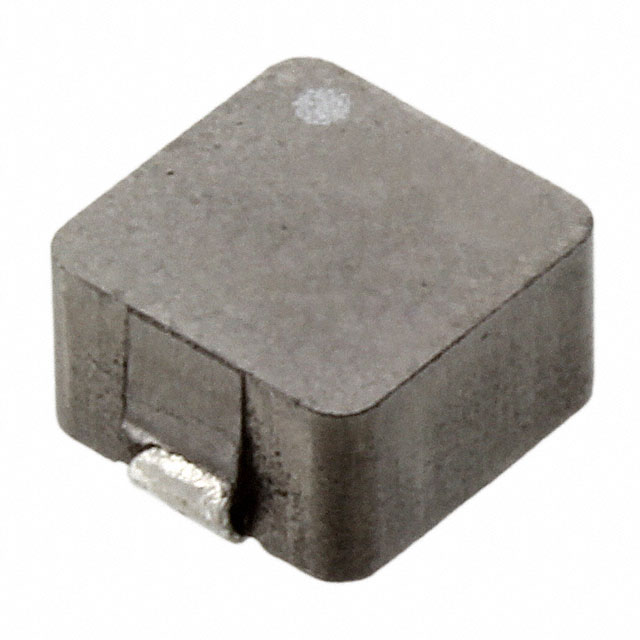

 KEMET | 125 °C | -40 C | 4 mm | 0.157 in | Surface Mount | 0.315 in | 0.264 " | 6.7 mm | 8 mm | Shielded | Metal Composite | 100 kHz | 20 % | 360 nH | Nonstandard | 22 A | 1.42 mOhm | 23 A |
