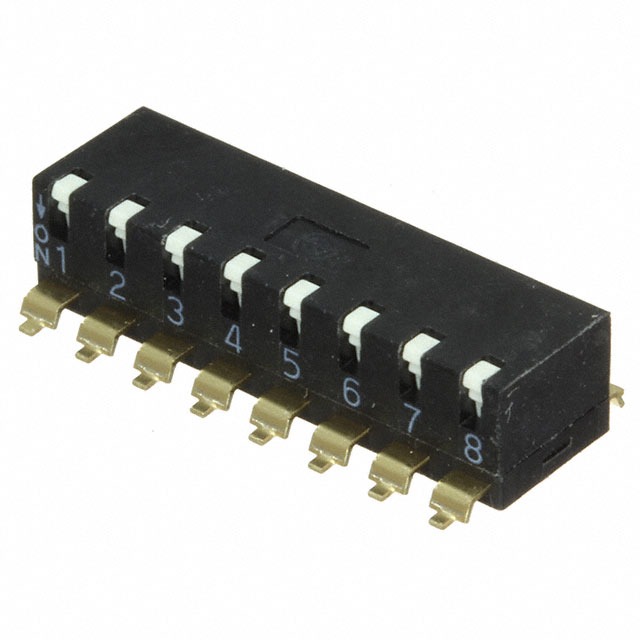

A6SR Series

Manufacturer: Omron Electronics Inc-EMC Div

Catalog

SWITCH PIANO DIP SPST 0.025A 24V

Part	Electrical Life	Length	Length	Mounting Type	Actuator Type	Height Above Board	Height Above Board	Voltage Rating	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Termination Style	Pitch	Pitch	Contact Finish	Circuit	Actuator Level	Number of Positions

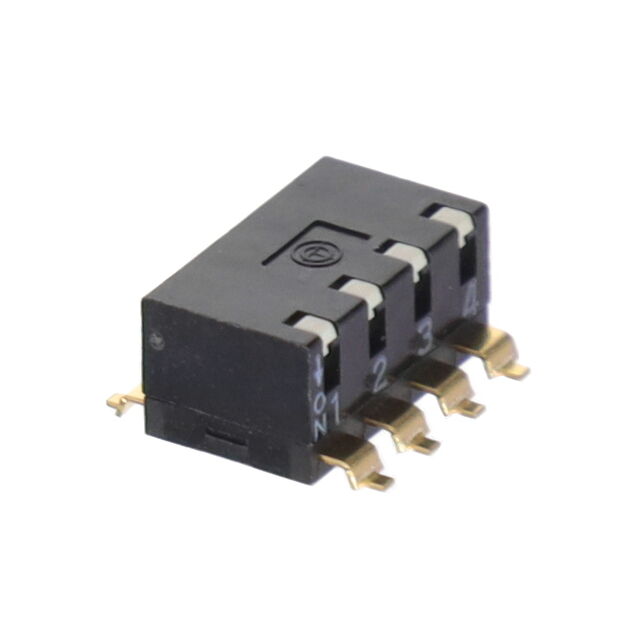

Omron Electronics Inc-EMC Div A6SR-4101-P	1000 Cycles	10.06 mm	0.396 "	Right Angle Surface Mount	Piano	5 mm	0.197 in	24 VDC	25 mA	-20 ░C	70 °C	Gull Wing	2.54 mm	0.1 "	Gold	SPST	Flush Recessed	4
Omron Electronics Inc-EMC Div A6SR-4104-P	1000 Cycles	10.06 mm	0.396 "	Right Angle Surface Mount	Piano	5 mm	0.197 in	24 VDC	25 mA	-20 ░C	70 °C	Gull Wing	2.54 mm	0.1 "	Gold	SPST	Raised	4

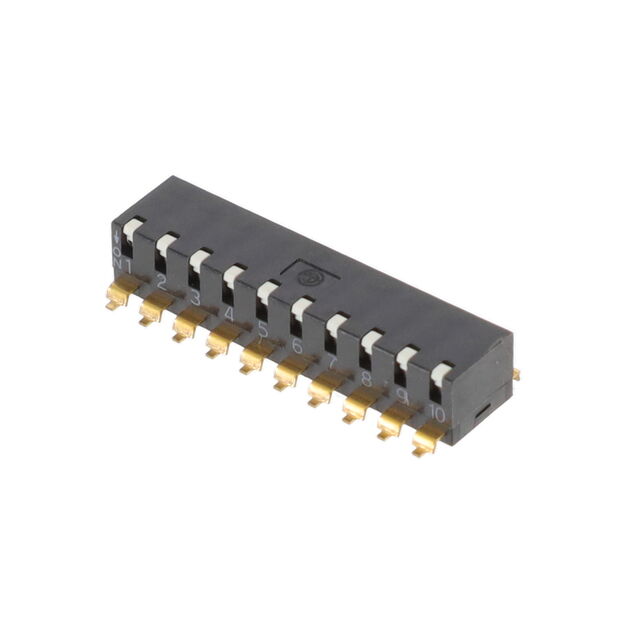

Omron Electronics Inc-EMC Div A6SR-0101	1000 Cycles	25.3 mm	0.996 in	Right Angle Surface Mount	Piano	5 mm	0.197 in	24 VDC	25 mA	-20 ░C	70 °C	Gull Wing	2.54 mm	0.1 "	Gold	SPST	Flush Recessed	10
Omron Electronics Inc-EMC Div A6SR-2101	1000 Cycles	4.98 mm	0.196 in	Right Angle Surface Mount	Piano	5 mm	0.197 in	24 VDC	25 mA	-20 ░C	70 °C	Gull Wing	2.54 mm	0.1 "	Gold	SPST	Flush Recessed	2

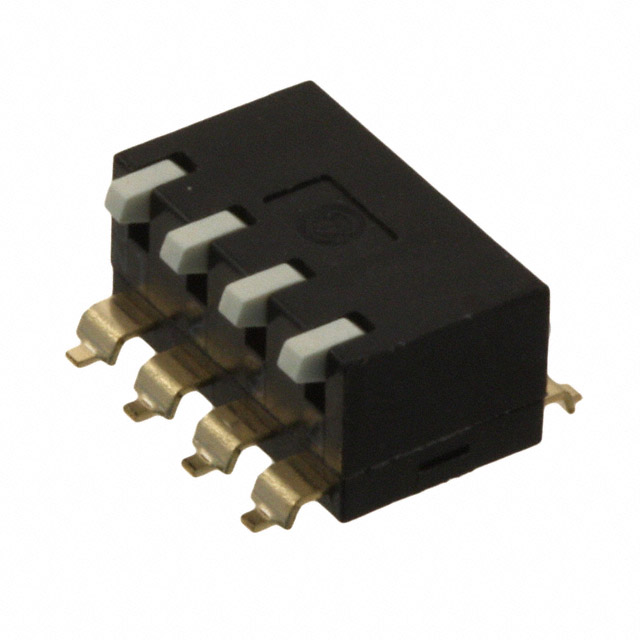

Omron Electronics Inc-EMC Div A6SR-4104	1000 Cycles	10.06 mm	0.396 "	Right Angle Surface Mount	Piano	5 mm	0.197 in	24 VDC	25 mA	-20 ░C	70 °C	Gull Wing	2.54 mm	0.1 "	Gold	SPST	Raised	4
Omron Electronics Inc-EMC Div A6SR-8101-R100	1000 Cycles	20.22 mm	0.796 in	Right Angle Surface Mount	Piano	5 mm	0.197 in	24 VDC	25 mA	-20 ░C	70 °C	Gull Wing	2.54 mm	0.1 "	Gold	SPST	Flush Recessed	8

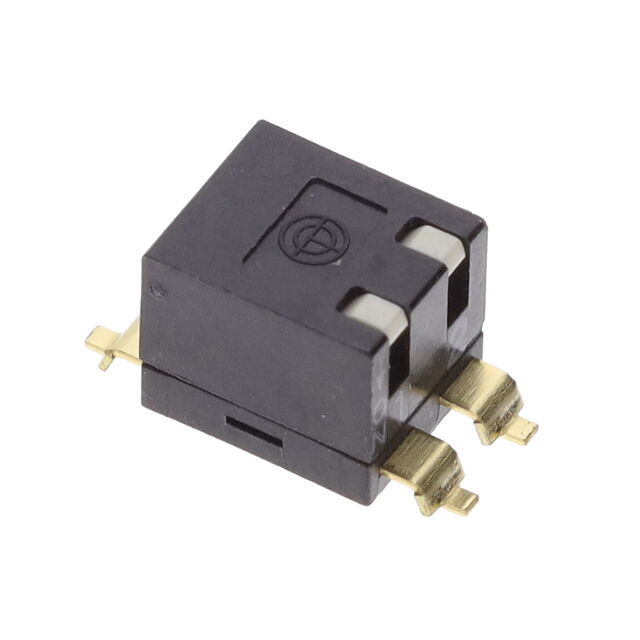

Omron Electronics Inc-EMC Div A6SR-2101-P	1000 Cycles	4.98 mm	0.196 in	Right Angle Surface Mount	Piano	5 mm	0.197 in	24 VDC	25 mA	-20 ░C	70 °C	Gull Wing	2.54 mm	0.1 "	Gold	SPST	Flush Recessed	2

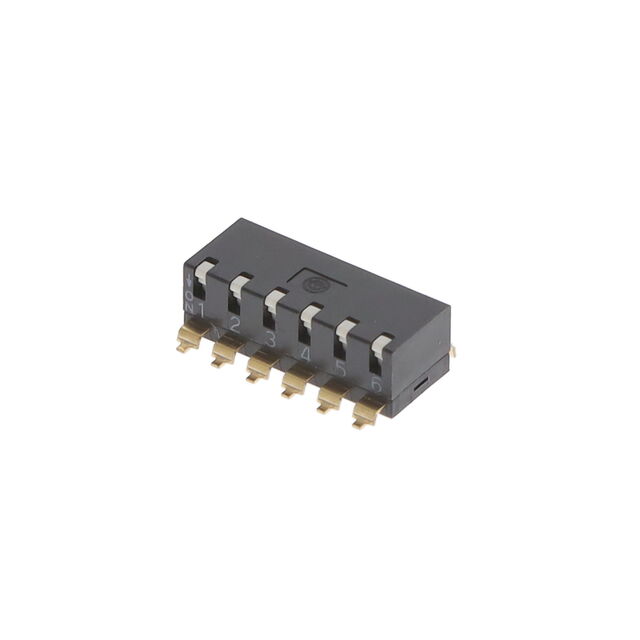

Omron Electronics Inc-EMC Div A6SR-6101	1000 Cycles	15.14 mm	0.596 in	Right Angle Surface Mount	Piano	5 mm	0.197 in	24 VDC	25 mA	-20 ░C	70 °C	Gull Wing	2.54 mm	0.1 "	Gold	SPST	Flush Recessed	6

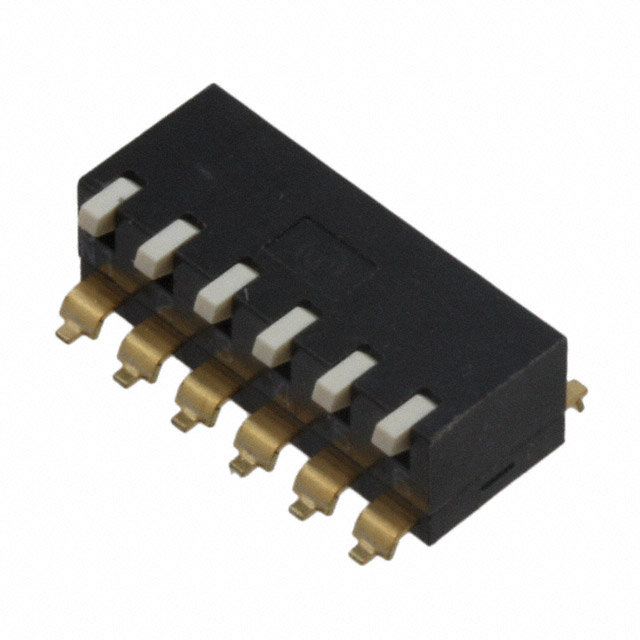

Omron Electronics Inc-EMC Div A6SR-6104-P	1000 Cycles	15.14 mm	0.596 in	Right Angle Surface Mount	Piano	5 mm	0.197 in	24 VDC	25 mA	-20 ░C	70 °C	Gull Wing	2.54 mm	0.1 "	Gold	SPST	Raised	6

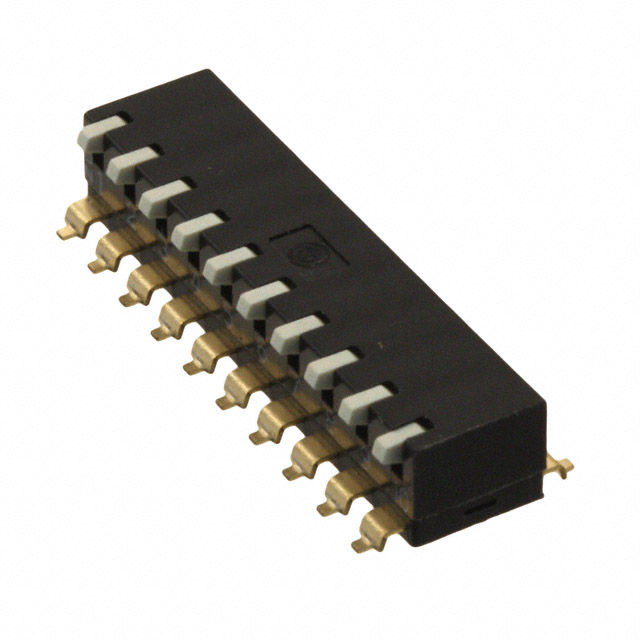

Omron Electronics Inc-EMC Div A6SR-0104	1000 Cycles	25.3 mm	0.996 in	Right Angle Surface Mount	Piano	5 mm	0.197 in	24 VDC	25 mA	-20 ░C	70 °C	Gull Wing	2.54 mm	0.1 "	Gold	SPST	Raised	10
