1176L Series
Manufacturer: ALPHA WIRE
Beta
⌘K

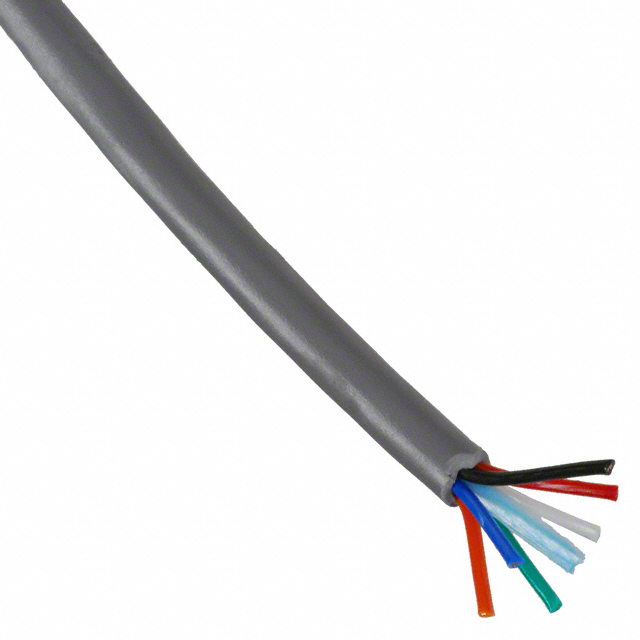

CABLE 6COND 22AWG SLATE 1000'
| Part | Conductor Insulation | Cable Type | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Conductor Strand [custom] | Conductor Strand [custom] | Number of Conductors | Wire Gauge | Jacket (Insulation) Material | Usage | Jacket Color | Length | Length | Voltage | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Low Smoke Zero Halogen (LSZH) | Multi-Conductor | 0.635 mm | 0.025 in | 30 AWG | 7 | 6 | 22 AWG | Low Smoke Zero Halogen (LSZH) | Communication Control | Slate | 304.8 m | 1000 ft | 300 VDC | 0.209 in | 5.31 mm | Copper Tinned |
ALPHA WIRE | Low Smoke Zero Halogen (LSZH) | Multi-Conductor | 0.635 mm | 0.025 in | 30 AWG | 7 | 6 | 22 AWG | Low Smoke Zero Halogen (LSZH) | Communication Control | Slate | 152.4 m | 500 ft | 300 VDC | 0.209 in | 5.31 mm | Copper Tinned |
