F3L300 Series

Manufacturer: INFINEON

Catalog

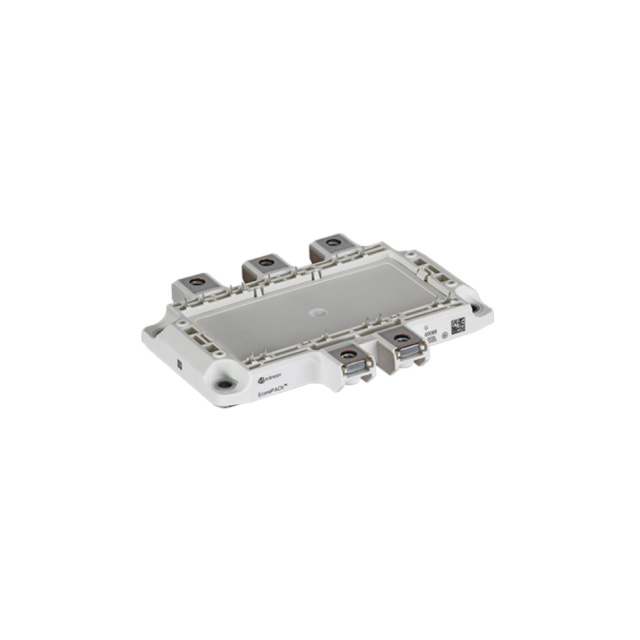

THE F3L300R12PT4_B26 IS A 3-LEVEL IGBT4 - T4 MODULE IN A ECONOPACK™ 4 HOUSING FOR INDUSTRIAL APPLICATIONS UP TO 1200 V AND 300 A.

Part	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Input	Voltage - Collector Emitter Breakdown (Max) [Max]	Current - Collector Cutoff (Max) [Max]	Mounting Type	Current - Collector (Ic) (Max) [Max]	Supplier Device Package	Vce(on) (Max) @ Vge, Ic	Configuration	Input Capacitance (Cies) @ Vce	IGBT Type	Power - Max [Max]
INFINEON F3L300R12PT4B26COSA1	-40 C	150 °C	Module	Standard	1200 V	1 mA	Chassis Mount	460 A	Module	2.15 V	Three Phase Inverter	18.5 nF
INFINEON F3L300R12ME4B23BOSA1	-40 C	150 °C	Module	Standard	1200 V	1 mA	Chassis Mount	450 A	Module	2.1 V	2 Independent	19 nF	Trench Field Stop	1550 W
INFINEON F3L300R12PT4PB26BOSA1
INFINEON F3L300R12ME4B22BOSA1	-40 C	150 °C	Module	Standard	1200 V	1 mA	Chassis Mount	450 A	Module	2.1 V	2 Independent	19 nF	Trench Field Stop	1550 W
INFINEON F3L300R12MT4PB23BPSA1	-40 °C	150 °C	Module	Standard	1200 V	1 mA	Chassis Mount		Module	2.1 V	Half Bridge	19 nF	Trench Field Stop	20 mW
