IPRF Series
Manufacturer: PEI-Genesis
Beta
⌘K

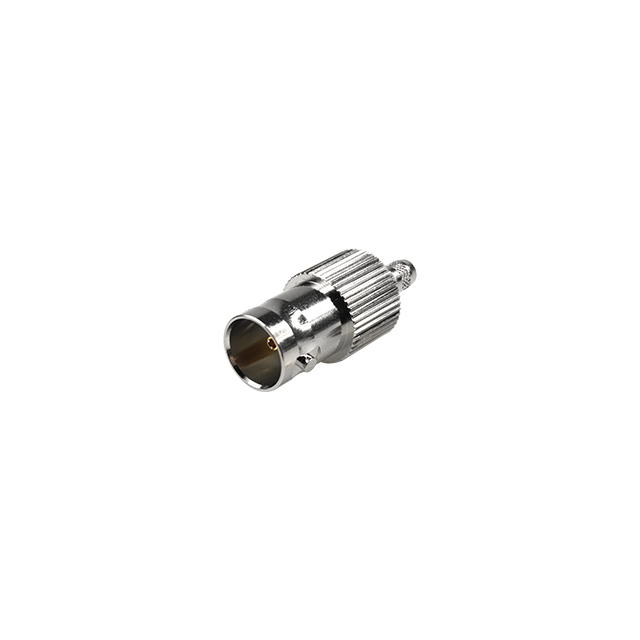

12G-SDI BNC CRIMP JACK
| Part | Fastening Type | Frequency - Max [Max] | Connector Style | Number of Ports | Connector Type | Ingress Protection | Contact Termination | Impedance | Shield Termination | Mounting Type | Center Contact Material | Housing Color | Mounting Feature | Cable Group | Operating Temperature [Min] | Operating Temperature [Max] | Body Material | Body Finish | Dielectric Material | Voltage Rating | Center Contact Plating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 PEI-Genesis | Threaded | 12 GHz | BNC | 1 | Female Socket Jack | IP68 - Dust Tight Waterproof | Crimp | ||||||||||||||
 PEI-Genesis | Snap-On | 6000 MHz | MMCX | 1 | Female Socket Jack | IP68 - Dust Tight Waterproof | Solder | 50 Ohms | Solder | Right Angle Through Hole | Beryllium Copper | Gold | |||||||||
 PEI-Genesis | Threaded | BNC | 1 | Female Socket Jack | IP68 - Dust Tight Waterproof | Crimp | Panel Mount | Bulkhead - Front Side Nut | |||||||||||||
 PEI-Genesis | Threaded | 12.4 GHz | SMA | 1 | Plug Male Pin | IP68 - Dust Tight Waterproof | Crimp | 50 Ohms | Crimp | Free Hanging (In-Line) | Brass | Gold | 188 316 Belden 7805A LMR-100 RG-174 URM95 | -65 ░C | 165 °C | Brass | Gold | Polytetrafluoroethylene (PTFE) | 500 V | Gold | |
 PEI-Genesis | Bayonet Lock | 12 GHz | BNC | 1 | Plug Male Pin | IP68 - Dust Tight Waterproof | Crimp | 75 Ohms | Crimp | Free Hanging (In-Line) | Brass | Silver | Belden 1855ENH | ||||||||
PEI-Genesis | Threaded | BNC | 1 | Female Socket Jack | IP68 - Dust Tight Waterproof | Crimp | Panel Mount | Bulkhead - Front Side Nut | |||||||||||||
 PEI-Genesis | Bayonet Lock | 12 GHz | BNC | 1 | Female Socket Jack | IP68 - Dust Tight Waterproof | Solder | 75 Ohms | Solder | Panel Mount | Beryllium Copper | Gold | Bulkhead - Front Side Nut | ||||||||
PEI-Genesis | Bayonet Lock | 12 GHz | BNC | 1 | Female Socket Jack | IP68 - Dust Tight Waterproof | Solder | 75 Ohms | Solder | Panel Mount | Beryllium Copper | Gold | Bulkhead - Front Side Nut | -65 ░C | 165 °C | Brass | Gold | Polytetrafluoroethylene (PTFE) | 500 V | Gold | |
PEI-Genesis | Threaded | 12.4 GHz | SMA | 1 | Plug Male Pin | IP68 - Dust Tight Waterproof | Crimp | 50 Ohms | Crimp | Free Hanging (In-Line) | Brass | Gold | 188 316 Belden 7805A LMR-100 RG-174 URM95 | ||||||||
PEI-Genesis | Snap-On | 6000 MHz | MMCX | 1 | Female Socket Jack | IP68 - Dust Tight Waterproof | Solder | 50 Ohms | Solder | Right Angle Through Hole | Beryllium Copper | Gold | -55 C | 155 C | Brass | Gold | Polytetrafluoroethylene (PTFE) | 170 V | Gold |
