PK14 Series

Catalog

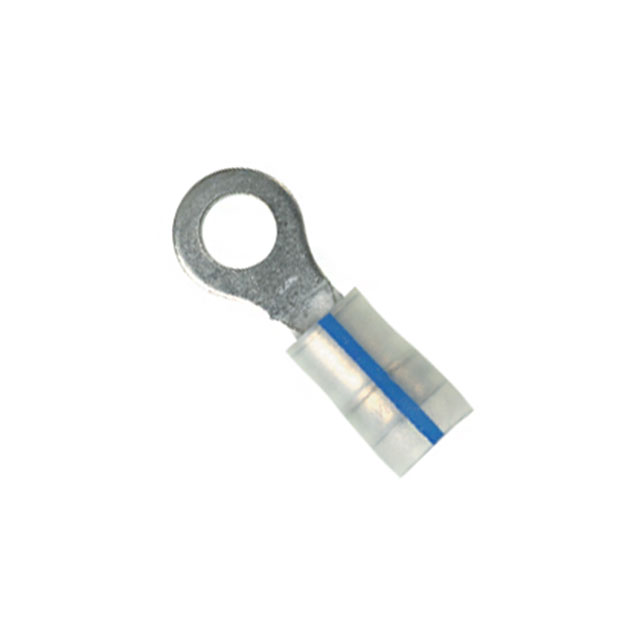

RING TONGUE TERMINAL 14-16AWG COPPER NATURAL/BLUE STRIPE 27.43MM TIN BOTTLE

Part	Material - Insulation	Insulation Diameter [diameter]	Insulation Diameter [diameter]	Contact Material	Color	Mounting Type	Thickness	Thickness	Terminal Type	Width - Outer Edges [x]	Width - Outer Edges [x]	Wire Gauge [Min]	Wire Gauge [Max]	Length - Overall [x]	Length - Overall [x]	Contact Finish	Termination	Features	Insulation	Stud/Tab Size	Width - Outer Edges	Width - Outer Edges
Panduit Corp PK14-14R-C	Polyvinylidene Fluoride (PVDF)	4.11 mm	0.162 in	Copper	Blue Stripe Natural	Free Hanging (In-Line)	0.76 mm	0.03 in	Circular	0.46 in	11.68 mm	14 AWG	18 AWG	27.43 mm	1.08 in	Tin	Crimp	Serrated Termination	Insulated	0.25 Stud
Panduit Corp PK14-10R-C	Polyvinylidene Fluoride (PVDF)	4.11 mm	0.162 in	Copper	Blue Stripe Natural	Free Hanging (In-Line)	0.76 mm	0.03 in	Circular			14 AWG	18 AWG	22.1 mm	0.87 in	Tin	Crimp	Serrated Termination	Insulated	10 Stud	7.87 mm	0.31 in
Panduit Corp PK14-6R-C	Polyvinylidene Fluoride (PVDF)	4.11 mm	0.162 in	Copper	Blue Stripe Natural	Free Hanging (In-Line)	0.76 mm	0.03 in	Circular			14 AWG	18 AWG	22.1 mm	0.87 in	Tin	Crimp	Serrated Termination	Insulated	6 Stud	7.87 mm	0.31 in
Panduit Corp PK14-8R-C	Polyvinylidene Fluoride (PVDF)	4.11 mm	0.162 in	Copper	Blue Stripe Natural	Free Hanging (In-Line)	0.76 mm	0.03 in	Circular			14 AWG	18 AWG	22.1 mm	0.87 in	Tin	Crimp	Serrated Termination	Insulated	8 Stud	7.87 mm	0.31 in
