2102155 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

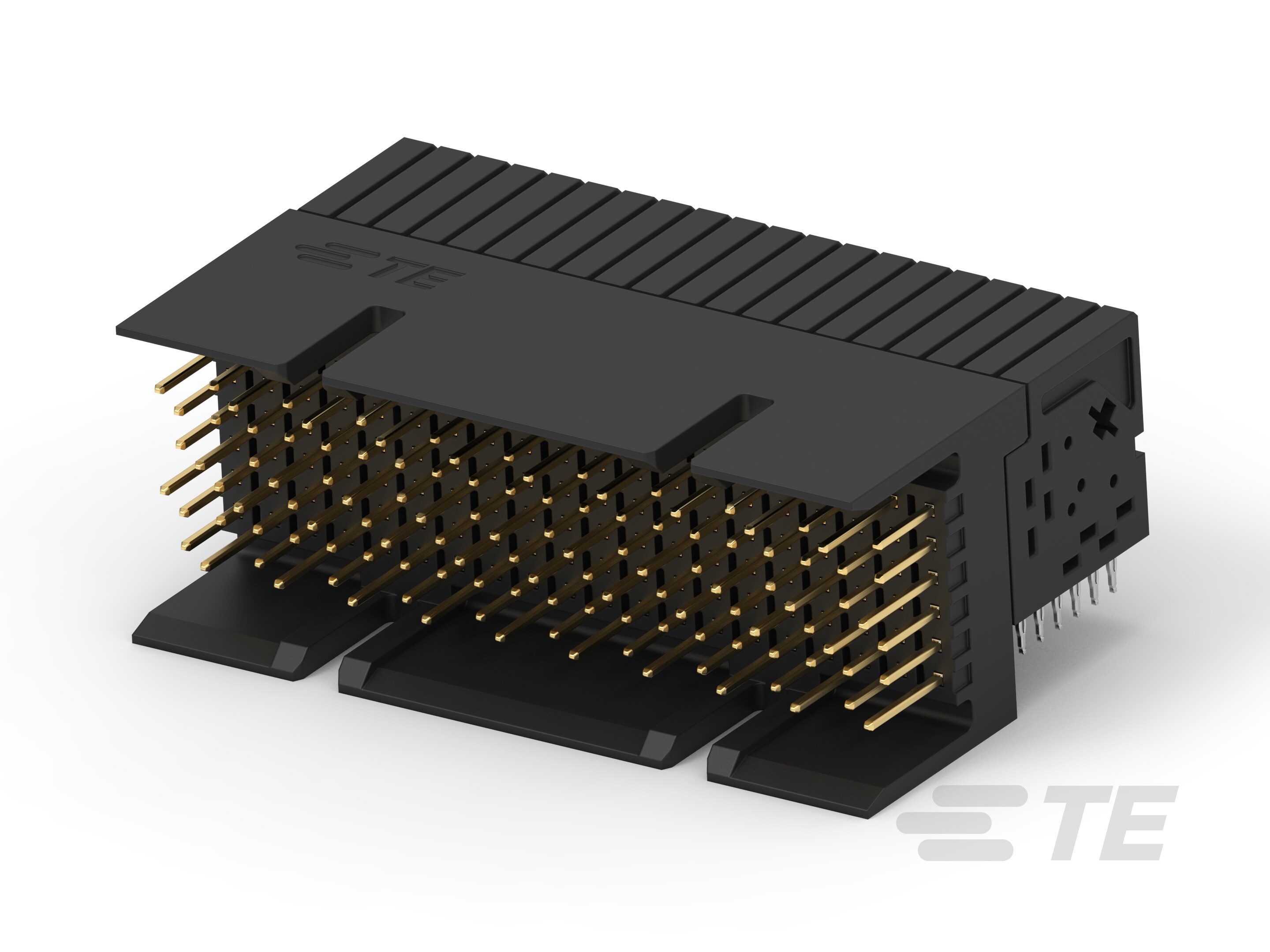

FORTIS ZD 3PR 10COL R/A FULL SHRD ASSY
| Part | Material Flammability Rating | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish Thickness | Contact Finish Thickness | Termination | Number of Rows | Connector Type | Connector Usage | Number of Positions Loaded | Number of Positions | Number of Columns | Mounting Type | Contact Layout, Typical | Contact Finish | Color | Features | Current Rating (Amps) | Pitch | Pitch | Contact Layout, Typical |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | UL94 V-0 | -65 ░C | 125 °C | 50 µin | 1.27 µm | Press-Fit | 9 | Header Male Pins | Daughtercard | All | 90 | 10 | Board Edge Right Angle Through Hole | 30 | Gold | Black | Shielded | ||||
 TE Connectivity AMP Connectors | UL94 V-0 | -65 ░C | 125 °C | 50 µin | 1.27 µm | Press-Fit | 9 | Receptacle Male Pins | All | 90 | 10 | Board Edge Right Angle Through Hole | Gold | Black | Shielded | 1.5 A | 1.9 mm | 0.075 in | 30 Differential Pairs |
