3004-1511 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

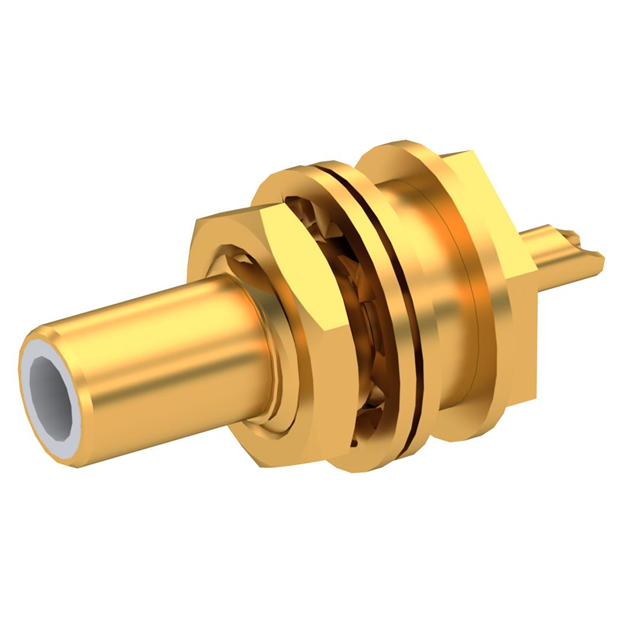

SLB / STRAIGHT JACK RECEPTACLE M
| Part | Center Contact Plating | Insertion Loss | Body Material | Dielectric Material | Mating Cycles | Operating Temperature [Min] | Operating Temperature [Max] | Body Finish | Impedance | Features | Mounting Feature | Connector Style | Shield Termination | Connector Type | Contact Termination | Frequency - Max [Max] | Center Contact Material | Fastening Type | Number of Ports | Mounting Type | Housing Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | Gold | 0.3 dB | Brass | Polytetrafluoroethylene (PTFE) | 500 | -65 ░C | 165 °C | Gold | 50 Ohms | Extended Insulation | Bulkhead - Front Side Nut | SLB | Solder | Jack Male Pin | Solder Cup | 4 GHz | Brass | Snap-On | 1 | Panel Mount | Gold |
