69167 Series

Catalog

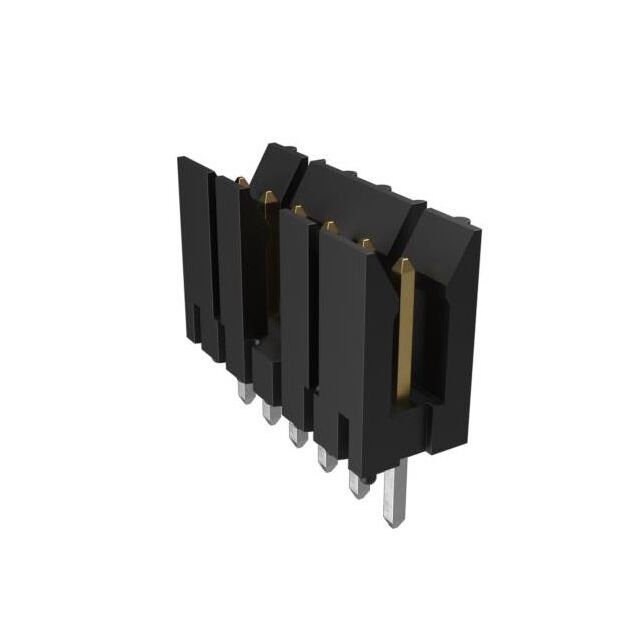

CONN HEADER VERT 12POS 2.54MM

Part	Connector Type	Fastening Type	Termination	Contact Length - Post [x]	Contact Length - Post [x]	Number of Positions Loaded	Insulation Height	Insulation Height	Insulation Color	Shrouding	Overall Contact Length	Overall Contact Length	Contact Finish - Mating	Number of Rows	Contact Length - Mating [x]	Contact Length - Mating	Contact Material	Material Flammability Rating	Contact Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Mounting Type	Number of Positions	Contact Shape	Style	Pitch - Mating	Pitch - Mating
Amphenol ICC (FCI) 69167-212HLF	Header	Friction Lock	Solder	0.12 in	3.05 mm	All	9.8 mm	0.386 in	Black	Shrouded - 2 Wall	0.465 in	11.81 mm	Gold or Gold GXT™	1	0.23 in	5.84 mm	Phosphor Bronze	UL94 V-0	Male Pin	15 µin	0.38 µm	Through Hole	12	Square	Board to Cable/Wire	0.1 in	2.54 mm
Amphenol ICC (FCI) 69167-110	Header	Friction Lock	Solder	0.12 in	3.05 mm	All	9.8 mm	0.386 in	Black	Shrouded - 2 Wall	0.465 in	11.81 mm	Gold or Gold GXT™	1	0.23 in	5.84 mm	Phosphor Bronze	UL94 V-0	Male Pin	30 Áin	0.76 Ám	Through Hole	10	Square	Board to Cable/Wire	0.1 in	2.54 mm

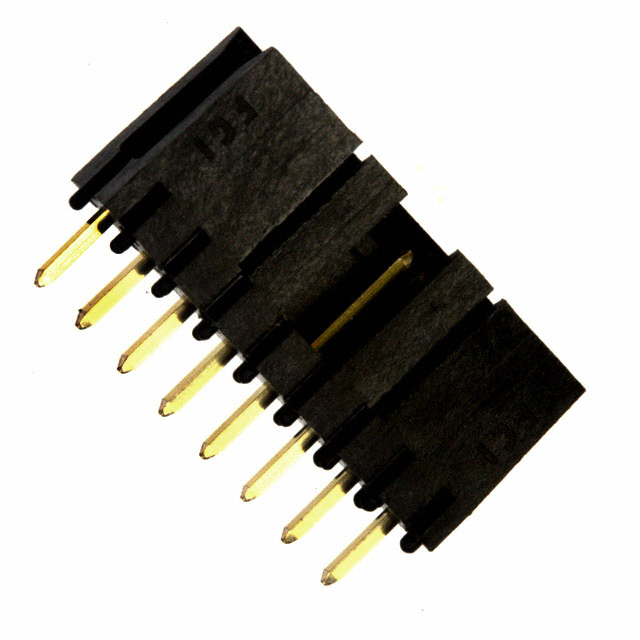

Amphenol ICC (FCI) 69167-208	Header	Friction Lock	Solder	0.12 in	3.05 mm	All	9.8 mm	0.386 in	Black	Shrouded - 2 Wall	0.465 in	11.81 mm	Gold or Gold GXT™	1	0.23 in	5.84 mm	Phosphor Bronze	UL94 V-0	Male Pin	15 µin	0.38 µm	Through Hole	8	Square	Board to Cable/Wire	0.1 in	2.54 mm
Amphenol ICC (FCI) 69167-410	Header	Friction Lock	Solder	0.12 in	3.05 mm	All	9.8 mm	0.386 in	Black	Shrouded - 2 Wall	0.465 in	11.81 mm		1	0.23 in	5.84 mm	Phosphor Bronze	UL94 V-0	Male Pin	100 çin	2.54 çm	Through Hole	10	Square	Board to Cable/Wire	0.1 in	2.54 mm
Amphenol ICC (FCI) 69167-404	Header	Friction Lock	Solder	0.12 in	3.05 mm	All	9.8 mm	0.386 in	Black	Shrouded - 2 Wall	0.465 in	11.81 mm		1	0.23 in	5.84 mm	Phosphor Bronze	UL94 V-0	Male Pin	100 çin	2.54 çm	Through Hole	4	Square	Board to Cable/Wire	0.1 in	2.54 mm
Amphenol ICC (FCI) 69167-408HLF	Header	Friction Lock	Solder	0.12 in	3.05 mm	All	9.8 mm	0.386 in	Black	Shrouded - 2 Wall	0.465 in	11.81 mm		1	0.23 in	5.84 mm	Phosphor Bronze	UL94 V-0	Male Pin	100 çin	2.54 çm	Through Hole	8	Square	Board to Cable/Wire	0.1 in	2.54 mm

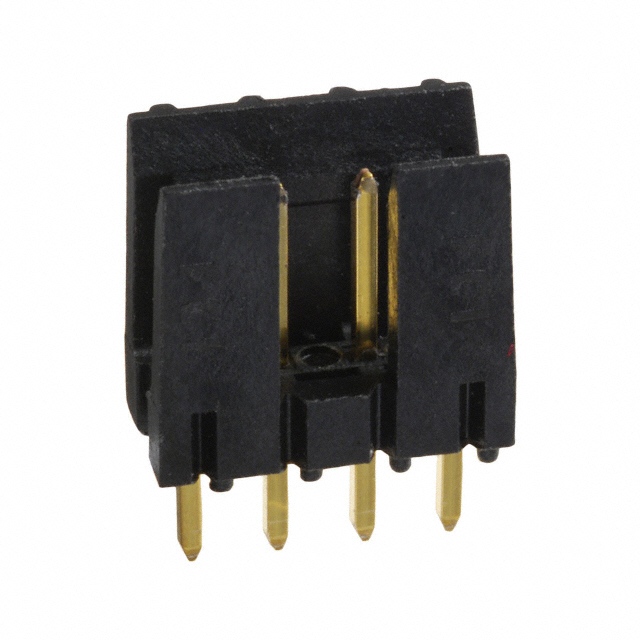

Amphenol ICC (FCI) 69167-104	Header	Friction Lock	Solder	0.12 in	3.05 mm	All	9.8 mm	0.386 in	Black	Shrouded - 2 Wall	0.465 in	11.81 mm	Gold or Gold GXT™	1	0.23 in	5.84 mm	Phosphor Bronze	UL94 V-0	Male Pin	30 Áin	0.76 Ám	Through Hole	4	Square	Board to Cable/Wire	0.1 in	2.54 mm
Amphenol ICC (FCI) 69167-109	Header	Friction Lock	Solder	0.12 in	3.05 mm	All	9.8 mm	0.386 in	Black	Shrouded - 2 Wall	0.465 in	11.81 mm	Gold or Gold GXT™	1	0.23 in	5.84 mm	Phosphor Bronze	UL94 V-0	Male Pin	30 Áin	0.76 Ám	Through Hole	9	Square	Board to Cable/Wire	0.1 in	2.54 mm
Amphenol ICC (FCI) 69167-414HLF	Header	Friction Lock	Solder	0.12 in	3.05 mm	All	9.8 mm	0.386 in	Black	Shrouded - 2 Wall	0.465 in	11.81 mm		1	0.23 in	5.84 mm	Phosphor Bronze	UL94 V-0	Male Pin	100 çin	2.54 çm	Through Hole	14	Square	Board to Cable/Wire	0.1 in	2.54 mm
Amphenol ICC (FCI) 69167-104HLF	Header	Friction Lock	Solder	0.12 in	3.05 mm	All	9.8 mm	0.386 in	Black	Shrouded - 2 Wall	0.465 in	11.81 mm	Gold or Gold GXT™	1	0.23 in	5.84 mm	Phosphor Bronze	UL94 V-0	Male Pin	30 Áin	0.76 Ám	Through Hole	4	Square	Board to Cable/Wire	0.1 in	2.54 mm
