HT-13 Series

Catalog

CONN RING CIRC 10-12AWG #6 CRIMP

Part	Thickness	Thickness	Contact Material	Contact Finish	Length - Overall [x]	Length - Overall [x]	Termination	Features	Wire Gauge [Min]	Wire Gauge [Max]	Insulation	Mounting Type	Stud/Tab Size	Width - Outer Edges [x]	Width - Outer Edges [x]	Terminal Type	Width - Outer Edges	Width - Outer Edges [y]

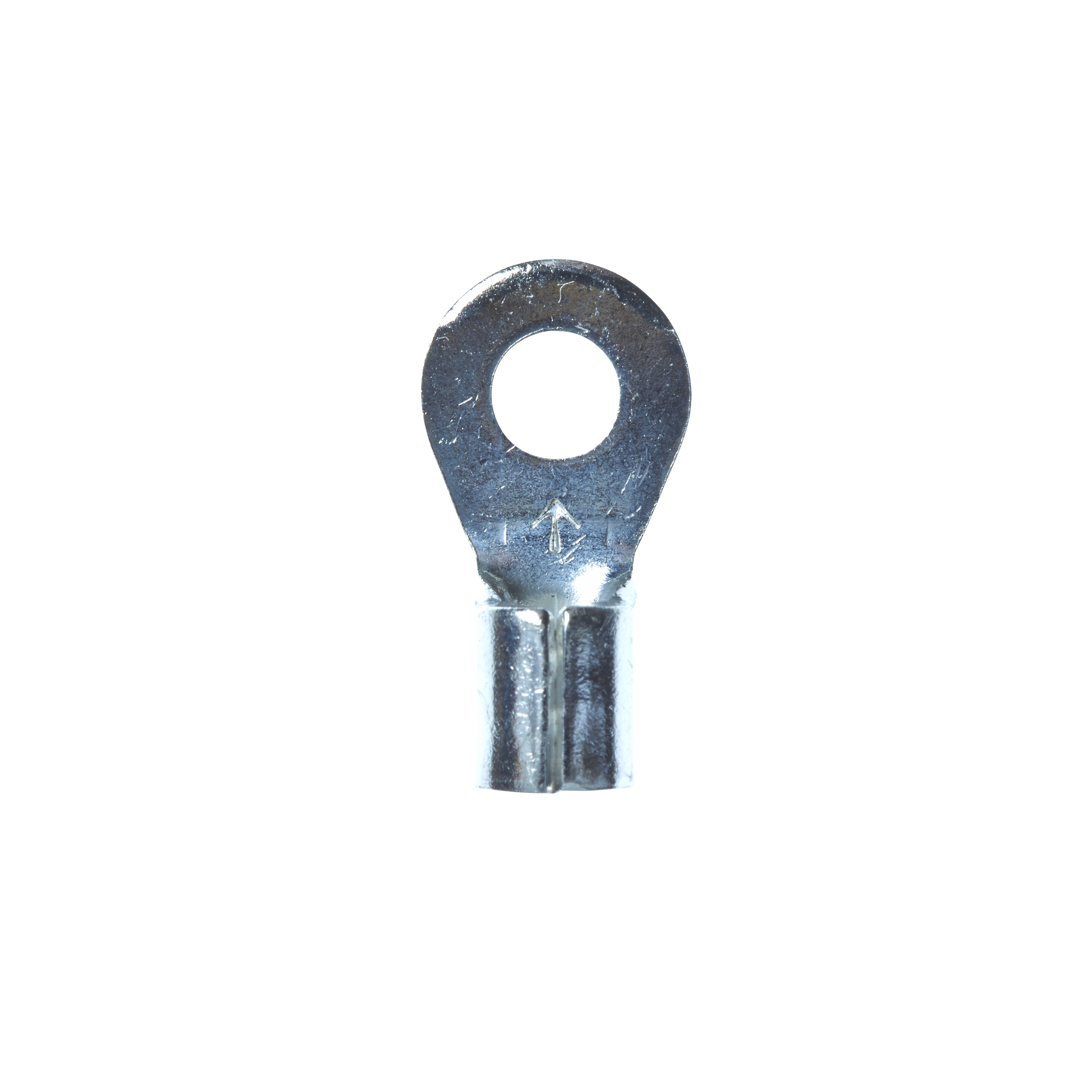

3M Electronic Specialty HT-13-6	0.04 in	1.02 mm	Steel	Nickel	18.54 mm	0.73 in	Crimp	Butted Seam High Temperature	10 AWG	12 AWG	Non-Insulated	Free Hanging (In-Line)	6 Stud	9.65 mm	0.38 in	Circular
3M Electronic Specialty HT-13-14	0.04 in	1.02 mm	Steel	Nickel	25.15 mm	0.99 in	Crimp	Butted Seam High Temperature	10 AWG	12 AWG	Non-Insulated	Free Hanging (In-Line)	0.25 Stud			Circular	15.49 mm	0.61 in
3M Electronic Specialty HT-13-38	0.04 in	1.02 mm	Steel	Nickel	25.15 mm	0.99 in	Crimp	Butted Seam High Temperature	10 AWG	12 AWG	Non-Insulated	Free Hanging (In-Line)	0.375 Stud			Circular	15.49 mm	0.61 in
