XP3N Series
Manufacturer: YAGEO
Beta
⌘K

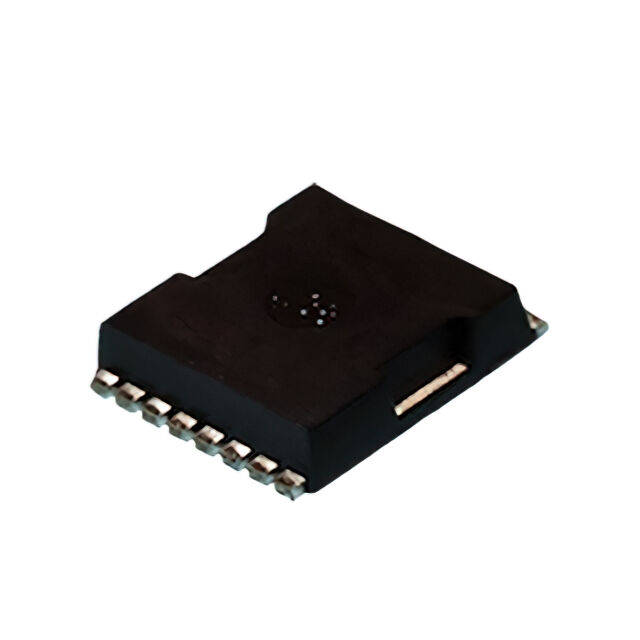

FET N-CH 30V 54.2A 245A PMPAK
| Part | Rds On (Max) | Current - Continuous Drain (Id) (Tc) | Current - Continuous Drain (Id) (Ta) | Package Name | Package Length | Package Width | Mounting Type | Drive Voltage (Min Rds On) | Drive Voltage (Max Rds On) | Input Capacitance (Ciss) (Max) | Vgs (Max) | Operating Temperature (Min) | Operating Temperature (Max) | Vgs(th) (Max) | Gate Charge (Max) | Package / Case | Drain to Source Voltage (Vdss) | Technology | FET Type | Power Dissipation (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 YAGEO | 1.05 mOhm | 245 A | 54.2 A 54.2 A | PMPAK® | 5 mm | 6 mm | Surface Mount | 10 V | 4.5 V | 12320 pF | 20 V | -55 °C | 150 °C | 2.2 V | 120 nC | 8-PowerLDFN | 30 V | MOSFET (Metal Oxide) | N-Channel | 5 W 104 W |
