Power Inductors - SMD 1uH 29A 6.5mm 20% SMT
Power Inductors - SMD 1uH 29A 6.5mm 20% SMT
| Part | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Tolerance | Inductance | Mounting Type | Type | Current - Saturation (Isat) | Package / Case | Operating Temperature [Max] | Operating Temperature [Min] | Inductance Frequency - Test | DC Resistance (DCR) [Max] | Ratings | Current Rating (Amps) | Shielding |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

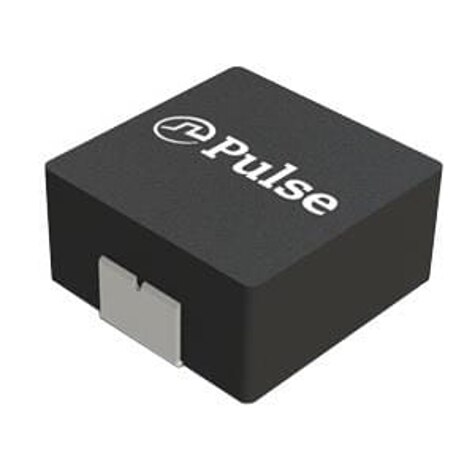

 Pulse Electronics | 6.5 mm | 0.256 in | 0.531 in | 12.6 mm | 0.496 in | 13.5 mm | 20 % | 1 µH | Surface Mount | Molded | 36 A | Nonstandard | 155 C | -55 C | 100 kHz | 1.8 mOhm | AEC-Q200 | 29 A | Shielded |
