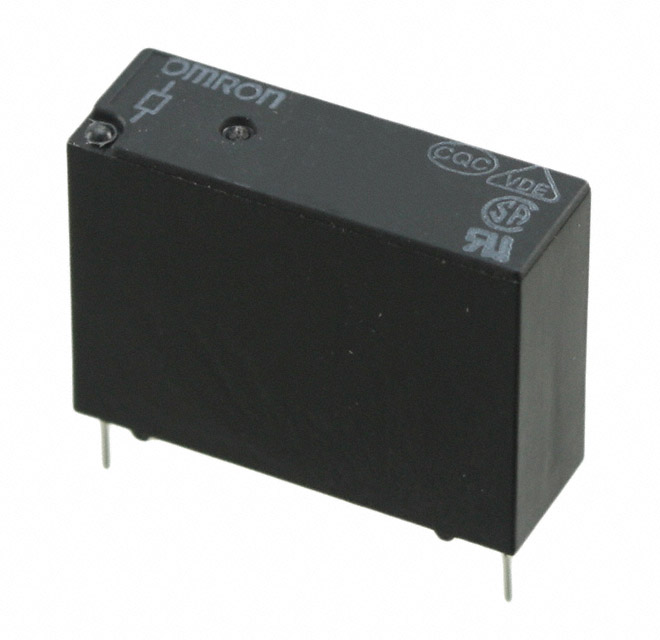

G5T-1A Series

Manufacturer: Omron Electronics Inc-EMC Div

Catalog

RELAY GEN PURPOSE SPST 5A 12V

Part	Release Time	Approval Agency	Coil Current	Operating Temperature [Min]	Operating Temperature [Max]	Contact Rating (Current)	Load - Max Switching	Contact Form	Must Operate Voltage	Operate Time	Coil Voltage	Coil Resistance	Seal Rating	Termination Style	Mounting Type	Relay Type	Switching Voltage [Max]	Must Release Voltage	Coil Type
Omron Electronics Inc-EMC Div G5T-1A-ASI DC12	10 ms	CSA UL VDE	16.7 mA	-40 °C	70 °C	5 A	150 W 1250 VA	SPST-NO (1 Form A)	9 VDC	10 ms	12 VDC	720 Ohms	Sealed - Flux Protection	PC Pin	Through Hole	General Purpose	30 VDC 250 VAC	0.6 VDC	Non Latching
Omron Electronics Inc-EMC Div G5T-1A DC12	10 ms	CSA UL VDE	16.7 mA	-40 °C	70 °C	5 A	150 W 1250 VA	SPST-NO (1 Form A)	9 VDC	10 ms	12 VDC	720 Ohms	Sealed - Flux Protection	PC Pin	Through Hole	General Purpose	30 VDC 250 VAC	0.6 VDC	Non Latching
Omron Electronics Inc-EMC Div G5T-1A-ASI DC24	10 ms	CSA UL VDE	8.3 mA	-40 °C	70 °C	5 A	150 W 1250 VA	SPST-NO (1 Form A)	18 VDC	10 ms	24 VDC	2.88 kOhms	Sealed - Flux Protection	PC Pin	Through Hole	General Purpose	30 VDC 250 VAC	1.2 VDC	Non Latching
Omron Electronics Inc-EMC Div G5T-1A DC5	10 ms	CSA UL VDE	40 mA	-40 °C	70 °C	5 A	150 W 1250 VA	SPST-NO (1 Form A)	3.75 VDC	10 ms	5 VDC	125 Ohms	Sealed - Flux Protection	PC Pin	Through Hole	General Purpose	30 VDC 250 VAC	0.25 VDC	Non Latching
Omron Electronics Inc-EMC Div G5T-1A DC24	10 ms	CSA UL VDE	8.3 mA	-40 °C	70 °C	5 A	150 W 1250 VA	SPST-NO (1 Form A)	18 VDC	10 ms	24 VDC	2.88 kOhms	Sealed - Flux Protection	PC Pin	Through Hole	General Purpose	30 VDC 250 VAC	1.2 VDC	Non Latching
Omron Electronics Inc-EMC Div G5T-1A DC9	10 ms	CSA UL VDE	22.2 mA	-40 °C	70 °C	5 A	150 W 1250 VA	SPST-NO (1 Form A)	6.75 VDC	10 ms	9 VDC	405 Ohms	Sealed - Flux Protection	PC Pin	Through Hole	General Purpose	30 VDC 250 VAC	0.45 VDC	Non Latching
