2ED1323 Series
Manufacturer: INFINEON
Beta
⌘K
THE 2ED1323S12P IS A 1200 V, 2.3 A SOURCE AND 2.3 A SINK CURRENT HIGH-SIDE/LOW-SIDE GATE DRIVER IC WITH AMC (ACTIVE MILLER CLAMP), SCC (SHORT CIRCUIT CLAMP)
| Part | Logic Voltage - VIL, VIH | Supplier Device Package | High Side Voltage - Max (Bootstrap) [Max] | Package / Case | Rise / Fall Time (Typ) | Rise / Fall Time (Typ) | Voltage - Supply [Min] | Voltage - Supply [Max] | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Channel Type | Gate Type | Driven Configuration | Number of Drivers | Input Type | Current - Peak Output (Source, Sink) [custom] | Current - Peak Output (Source, Sink) [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

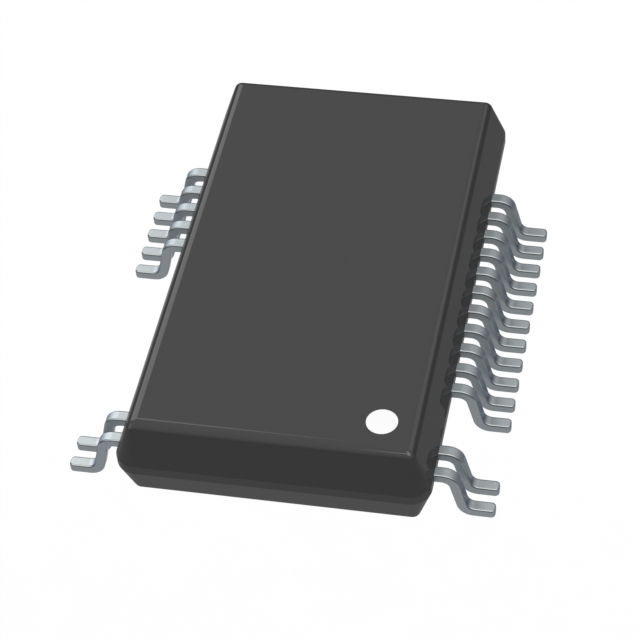

 INFINEON | 0.7 V | PG-DSO-20-U03 | 1.2 kV | 20-BSSOP (0.295" 7.50mm Width) | 48 ns | 48 ns | 13 V | 25 V | -40 °C | 150 °C | Surface Mount | Synchronous | IGBT | Half-Bridge | 1 | Non-Inverting | 2.3 A | 2.3 A |
