PTH04000W Series

3-A, 3.3/5-V Input Adjustable Switching Regulator with Auto-Track Sequencing

Catalog

3-A, 3.3/5-V Input Adjustable Switching Regulator with Auto-Track Sequencing

Part	Features	Package / Case	Number of Outputs	Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Applications	Voltage - Input (Min) [Min]	Current - Output (Max) [Max]	Voltage - Input (Max) [Max]	Mounting Type	Voltage - Output 1 [Max]	Voltage - Output 1 [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Efficiency

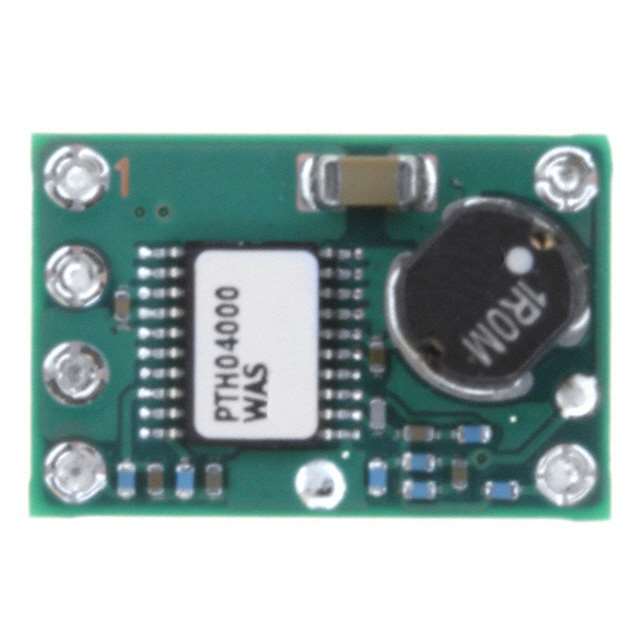

Texas Instruments PTH04000WAS	OCP OTP Remote On/Off UVLO	6-SMD Module	1	Non-Isolated PoL Module	0.75 in	0.5 in	9.1 mm	19.1 mm	12.7 mm	0.36 in	ITE (Commercial)	3 V	3 A	5.5 V	Surface Mount	3.6 V	0.9 V	85 °C	-40 °C	92 %
Texas Instruments PTH04000WAH		6-DIP Module	1	Non-Isolated PoL Module	0.75 in	0.5 in	8.6 mm	19.1 mm	12.7 mm	0.34 in	ITE (Commercial)	3 V	3 A	5.5 V	Through Hole	3.6 V	0.9 V	85 °C	-40 °C	92 %
Texas Instruments PTH04000WAST	OCP OTP Remote On/Off UVLO	6-SMD Module	1	Non-Isolated PoL Module	0.75 in	0.5 in	9.1 mm	19.1 mm	12.7 mm	0.36 in	ITE (Commercial)	3 V	3 A	5.5 V	Surface Mount	3.6 V	0.9 V	85 °C	-40 °C	92 %

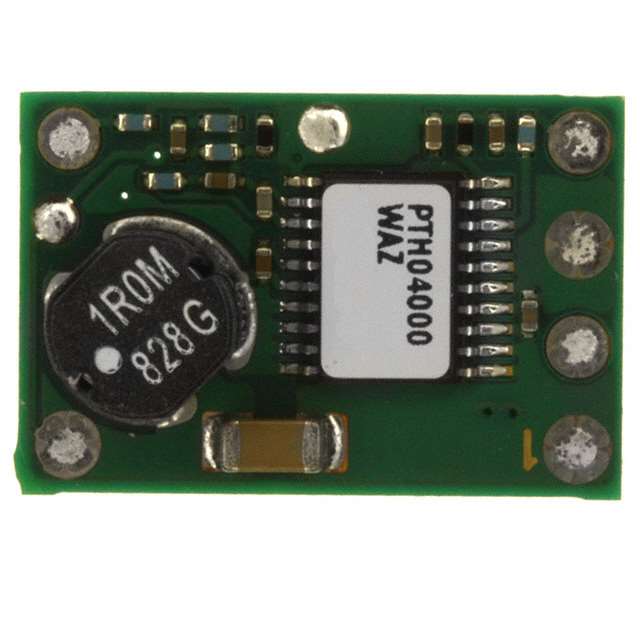

Texas Instruments PTH04000WAZ	OCP OTP Remote On/Off UVLO	6-SMD Module	1	Non-Isolated PoL Module	0.75 in	0.5 in	9.1 mm	19.1 mm	12.7 mm	0.36 in	ITE (Commercial)	3 V	3 A	5.5 V	Surface Mount	3.6 V	0.9 V	85 °C	-40 °C	92 %
Texas Instruments PTH04000WAZT	OCP OTP Remote On/Off UVLO	6-SMD Module	1	Non-Isolated PoL Module	0.75 in	0.5 in	9.1 mm	19.1 mm	12.7 mm	0.36 in	ITE (Commercial)	3 V	3 A	5.5 V	Surface Mount	3.6 V	0.9 V	85 °C	-40 °C	92 %

Catalog

3-A, 3.3/5-V Input Adjustable Switching Regulator with Auto-Track Sequencing

Key Features

• Up to 3-A Output Current at 85°C3.3-V / 5-V Input VoltageWide-Output Voltage Adjust (0.9 V to 3.6 V)Efficiencies Up To 94%On/Off InhibitUndervoltage Lockout (UVLO)Output Overcurrent Protection (Nonlatching, Auto-Reset)Overtemperature ProtectionAmbient Temperature Range: -40°C to 85°CPoint-of-Load Alliance (POLA)™ CompatibleSurface Mount PackageSafety Agency Approvals: - UL/IEC/CSA-22.2 60950-1APPLICATIONSTelecommunications, Instrumentation, and General-Purpose CircuitsPOLA, Auto-Track, TMS320 are trademarks of Texas Instruments.Up to 3-A Output Current at 85°C3.3-V / 5-V Input VoltageWide-Output Voltage Adjust (0.9 V to 3.6 V)Efficiencies Up To 94%On/Off InhibitUndervoltage Lockout (UVLO)Output Overcurrent Protection (Nonlatching, Auto-Reset)Overtemperature ProtectionAmbient Temperature Range: -40°C to 85°CPoint-of-Load Alliance (POLA)™ CompatibleSurface Mount PackageSafety Agency Approvals: - UL/IEC/CSA-22.2 60950-1APPLICATIONSTelecommunications, Instrumentation, and General-Purpose CircuitsPOLA, Auto-Track, TMS320 are trademarks of Texas Instruments.

Description

The PTH04000W is a highly integrated, low-cost switching regulator module that delivers up to 3 A of output current. Occupying a small PCB area, the PTH04000W provides output current at a high efficiency and with minimal power dissipation, thereby eliminating the need for a heat sink. Their small size (0.75 inch × 0.5 inch), high efficiency, and low cost makes these modules practical for a variety of applications. The input voltage range of the PTH04000W is from 3 V to 5.5 V, allowing operation from either a 3.3-V or 5-V input bus. Using state-of-the-art switched-mode power-conversion technology, the PTH04000W can step down to voltages as low as 0.9 V from a 5-V input bus, with typically less than 1 W of power dissipation. The output voltage can be adjusted to any voltage over the range, 0.9 V to 3.6 V, using a single external resistor. This series includes Auto-Track™ sequencing. This feature simplifies the task of supply voltage sequencing in a power system by enabling modules to track each other, or any external voltage, during power up and power down. Other operating features include an undervoltage lockout (UVLO), on/off inhibit, output overcurrent protection, and overtemperature protection. Target applications include telecommunications, test and measurement applications, and high-end consumer products. The modules are available in both through-hole and surface-mount package options, including tape and reel. The PTH04000W is also compatible with TI's roadmap for RoHS and lead-free compliance. The PTH04000W is a highly integrated, low-cost switching regulator module that delivers up to 3 A of output current. Occupying a small PCB area, the PTH04000W provides output current at a high efficiency and with minimal power dissipation, thereby eliminating the need for a heat sink. Their small size (0.75 inch × 0.5 inch), high efficiency, and low cost makes these modules practical for a variety of applications. The input voltage range of the PTH04000W is from 3 V to 5.5 V, allowing operation from either a 3.3-V or 5-V input bus. Using state-of-the-art switched-mode power-conversion technology, the PTH04000W can step down to voltages as low as 0.9 V from a 5-V input bus, with typically less than 1 W of power dissipation. The output voltage can be adjusted to any voltage over the range, 0.9 V to 3.6 V, using a single external resistor. This series includes Auto-Track™ sequencing. This feature simplifies the task of supply voltage sequencing in a power system by enabling modules to track each other, or any external voltage, during power up and power down. Other operating features include an undervoltage lockout (UVLO), on/off inhibit, output overcurrent protection, and overtemperature protection. Target applications include telecommunications, test and measurement applications, and high-end consumer products. The modules are available in both through-hole and surface-mount package options, including tape and reel. The PTH04000W is also compatible with TI's roadmap for RoHS and lead-free compliance.
