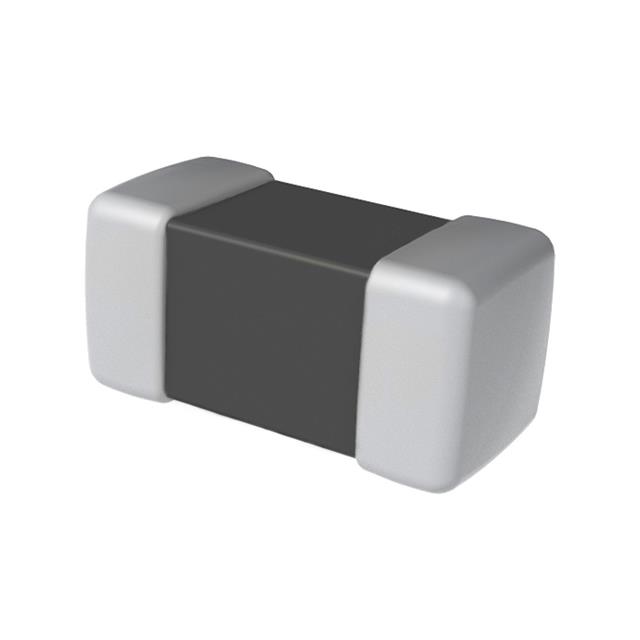

L-PWS Series

Manufacturer: KEMET

Catalog

POWER INDUCTORS - SMD 1207 15UH 10% 300MA

Part	Type	Inductance Frequency - Test	Package / Case	Package / Case	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Current Rating (Amps)	Mounting Type	Inductance	DC Resistance (DCR)	Supplier Device Package	Shielding	Operating Temperature [Min]	Operating Temperature [Max]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Tolerance	Material - Core	Frequency - Self Resonant	Height - Seated (Max) [Max]
KEMET L1207C150KPWST	Drum Core Wirewound	2.52 MHz	3218 Metric	1207	3.2 mm	0.071 in	0.126 "	1.8 mm	0.3 A	Surface Mount	15 µH	320 mOhm	1207	Unshielded	-40 C	105 ░C	0.079 in	2 mm	10 %	Ferrite	25 MHz
KEMET L0806C330MPWST	Drum Core Wirewound	2.52 MHz		0806 (2016 Metric)	2 mm	0.063 "	0.079 in	1.6 mm	85 mA	Surface Mount	33 µH	1.7 Ohm	0806	Unshielded	-40 C	105 ░C	1.8 mm		20 %	Ferrite	14 MHz	0.071 in
KEMET L1207C470MPWST	Drum Core Wirewound	2.52 MHz	3218 Metric	1207	3.2 mm	0.071 in	0.126 "	1.8 mm	205 mA	Surface Mount	47 µH	920 mOhm	1207	Unshielded	-40 C	105 ░C	0.079 in	2 mm	20 %	Ferrite	12 MHz
KEMET L0806C100KPWST	Drum Core Wirewound	2.52 MHz		0806 (2016 Metric)	2 mm	0.063 "	0.079 in	1.6 mm	155 mA	Surface Mount	10 µH	500 mOhm	0806	Unshielded	-40 C	105 ░C	1.8 mm		10 %	Ferrite	32 MHz	0.071 in
KEMET L0806C150KPWST	Drum Core Wirewound	2.52 MHz		0806 (2016 Metric)	2 mm	0.063 "	0.079 in	1.6 mm	130 mA	Surface Mount	15 µH	700 mOhm	0806	Unshielded	-40 C	105 ░C	1.8 mm		10 %	Ferrite	28 MHz	0.071 in
KEMET L1007C471MPWST	Drum Core Wirewound	0.796 MHz		1007 (2518 Metric)	2.5 mm	0.071 in	0.098 in	1.8 mm	25 mA	Surface Mount	470 µH	10 Ohm	1007	Unshielded	-40 C	105 ░C	0.079 in	2 mm	20 %	Ferrite	3.5 MHz
KEMET L1007R4R7MPWST	Drum Core Wirewound	7.96 MHz		1007 (2518 Metric)	2.5 mm	0.071 in	0.098 in	1.8 mm	235 mA	Surface Mount	4.7 ÁH	100 mOhm	1007	Unshielded	-40 C	105 ░C	0.079 in	2 mm	20 %	Ferrite	46 MHz
