Schaffner FN3025 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

POWER LINE FILTER EMC/RFI 0HZ TO 60HZ 50A 520VAC TERMINAL BLOCK CHASSIS MOUNT MEDICAL

Part	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Rated AC (Phase to Ground/Neutral)	Filter Type	Mounting Type	Configuration	Frequency - Operating	Approval Agency	Voltage - Rated AC (Phase to Phase)	Applications	Current	Termination Style

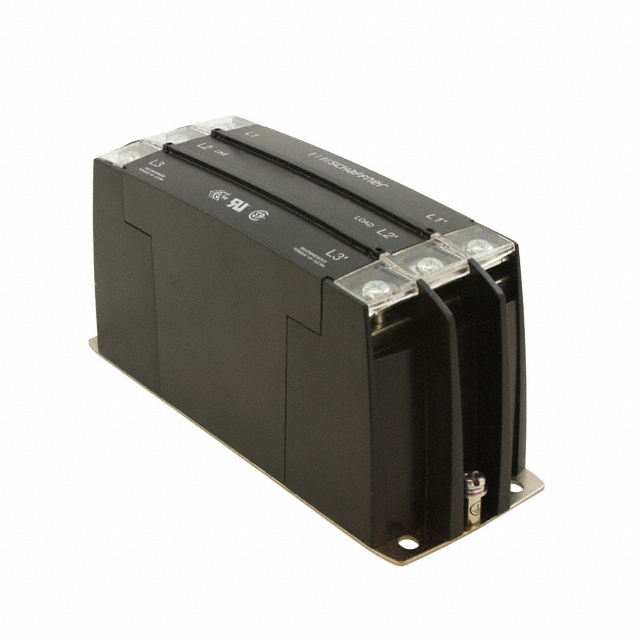

TE Connectivity AMP Connectors FN3025HL-50-72	100 °C	-25 °C	300 V	Three Phase (Delta)	Chassis Mount	Single Stage	60 Hz	CSA ENEC UR	520 V	General Purpose	50 A	Terminal Block

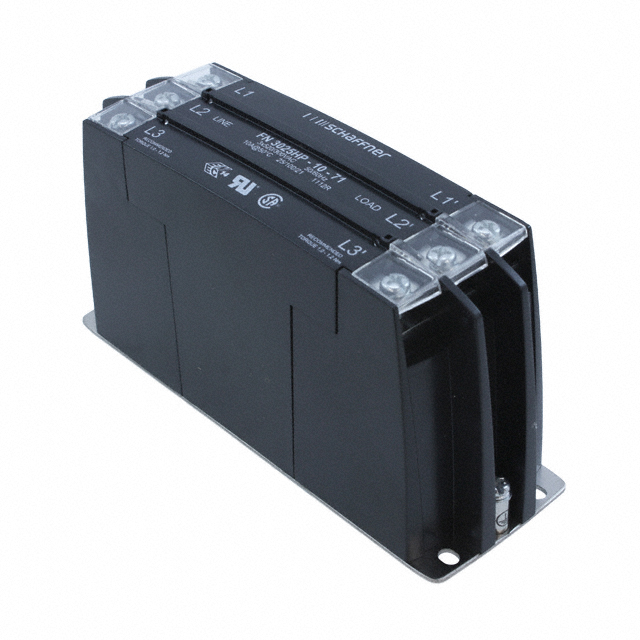

TE Connectivity AMP Connectors FN3025HP-10-71	100 °C	-25 °C	300 V	Three Phase (Delta)	Chassis Mount	Single Stage	60 Hz	CSA ENEC UR	520 V	General Purpose	10 A	Terminal Block
TE Connectivity AMP Connectors FN3025HL-10-71	100 °C	-25 °C	300 V	Three Phase (Delta)	Chassis Mount	Single Stage	60 Hz	CSA ENEC UR	520 V	General Purpose	10 A	Terminal Block
TE Connectivity AMP Connectors FN3025HL-20-71	100 °C	-25 °C	300 V	Three Phase (Delta)	Chassis Mount	Single Stage	60 Hz	CSA ENEC UR	520 V	General Purpose	20 A	Terminal Block
TE Connectivity AMP Connectors FN3025HP-10-71	100 °C	-25 °C	300 V	Three Phase (Delta)	Chassis Mount	Single Stage	60 Hz	CSA ENEC UR	520 V	General Purpose	10 A	Terminal Block
TE Connectivity AMP Connectors FN3025HP-30-71	100 °C	-25 °C	300 V	Three Phase (Delta)	DIN Rail	Single Stage	60 Hz	CSA ENEC UR	520 V	General Purpose	30 A	Terminal Block
TE Connectivity AMP Connectors FN3025HL-50-72	100 °C	-25 °C	300 V	Three Phase (Delta)	Chassis Mount	Single Stage	60 Hz	CSA ENEC UR	520 V	General Purpose	50 A	Terminal Block
TE Connectivity AMP Connectors FN3025HP-30-71	100 °C	-25 °C	300 V	Three Phase (Delta)	DIN Rail	Single Stage	60 Hz	CSA ENEC UR	520 V	General Purpose	30 A	Terminal Block
TE Connectivity AMP Connectors FN3025HP-40-71	100 °C	-25 °C	300 V	Three Phase (Delta)	Chassis Mount	Single Stage	60 Hz	CE CSA ENEC UKCA UR	520 V	General Purpose	40 A	Terminal Block
TE Connectivity AMP Connectors FN3025HL-20-71	100 °C	-25 °C	300 V	Three Phase (Delta)	Chassis Mount	Single Stage	60 Hz	CSA ENEC UR	520 V	General Purpose	20 A	Terminal Block
