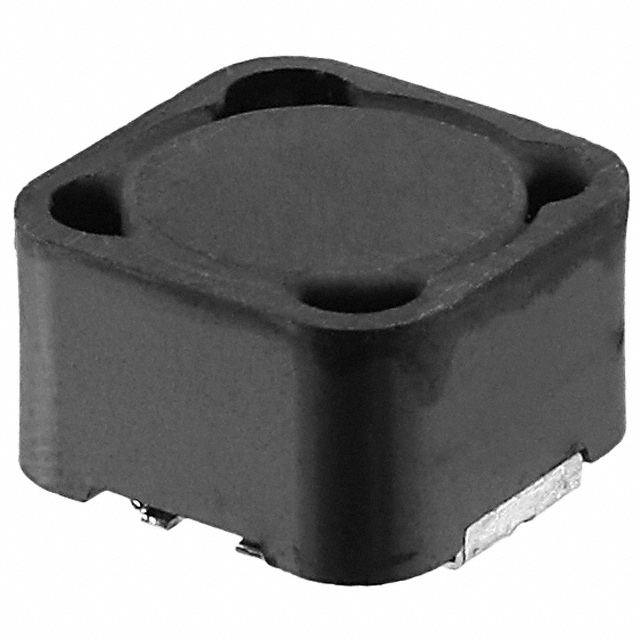

P1172NL/P1173NL Series
Manufacturer: Pulse Electronics
Beta
⌘K
POWER INDUCTORS - SMD SHD DRUM CORE IND
| Part | Frequency - Self Resonant | Operating Temperature [Max] | Operating Temperature [Min] | Type | Package / Case | Current Rating (Amps) | Inductance Frequency - Test | DC Resistance (DCR) [Max] | Inductance | Current - Saturation (Isat) | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Tolerance | Mounting Type | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Shielding |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Pulse Electronics | 20 MHz | 130 °C | -40 C | Wirewound | Nonstandard | 5.2 A | 100 kHz | 21.8 mOhm | 10 µH | 5.5 A | 12.24 mm | 12.24 mm | 0.482 in | 0.482 " | 20 % | Surface Mount | 8 mm | 0.315 in | Shielded |
