8777 Series
Manufacturer: Belden Inc.
Beta
⌘K

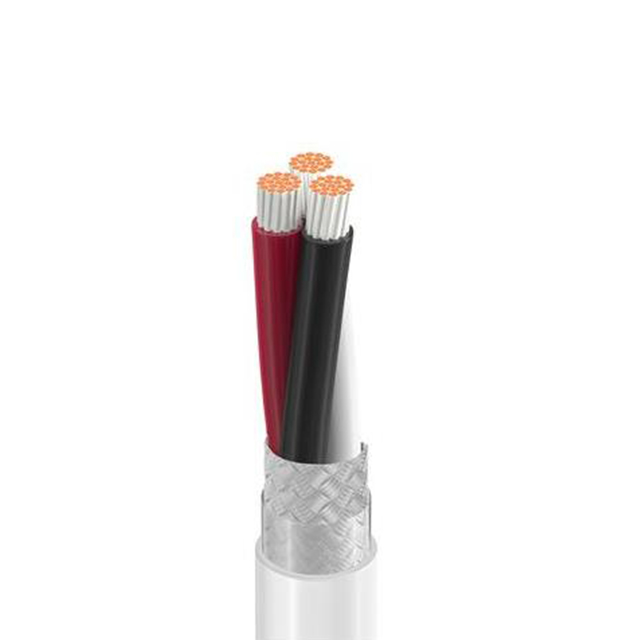

MULTIPAIR CABLE, AUDIO CONTROL, SHIELDED, 3 PAIR, 22 AWG, 100 FT, 30.48 M
| Part | Shield Coverage | Shield Material | Operating Temperature [Max] | Operating Temperature [Min] | Conductor Material | Conductor Insulation | Length [x] | Length [x] | Cable Type | Wire Gauge | Conductor Strand [custom] | Conductor Strand [custom] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Number of Conductors | Shield Type | Jacket (Insulation) Material | Features | Jacket Color | Length | Length | Length | Ratings |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 100 % | Aluminum Polyester | 80 °C | -20 ░C | Copper Tinned | Polypropylene (PP) | 100 ft | 30.5 m | Multi-Pair | 22 AWG | 30 AWG | 7 | 6.93 mm | 0.273 " | 0.864 mm | 0.034 in | 6 | Foil | Poly-Vinyl Chloride (PVC) | Drain Wire | Chrome | ||||
 Belden Inc. | 100 % | Aluminum | 80 °C | -20 ░C | Copper Tinned | Polypropylene (PP) | Multi-Pair | 22 AWG | 30 AWG | 7 | 6.93 mm | 0.273 " | 0.864 mm | 0.034 in | 6 | Foil | Poly-Vinyl Chloride (PVC) | Drain Wire | Chrome | 3281 ' | 1000 m | Enter Number of Feet in Order Quantity | UL Style 2919 | ||
Belden Inc. | 100 % | Aluminum | 80 °C | -20 ░C | Copper Tinned | Polypropylene (PP) | Multi-Pair | 22 AWG | 30 AWG | 7 | 6.93 mm | 0.273 " | 0.864 mm | 0.034 in | 6 | Foil | Poly-Vinyl Chloride (PVC) | Drain Wire | Chrome | 250 ft | 76.2 m | UL Style 2919 |
