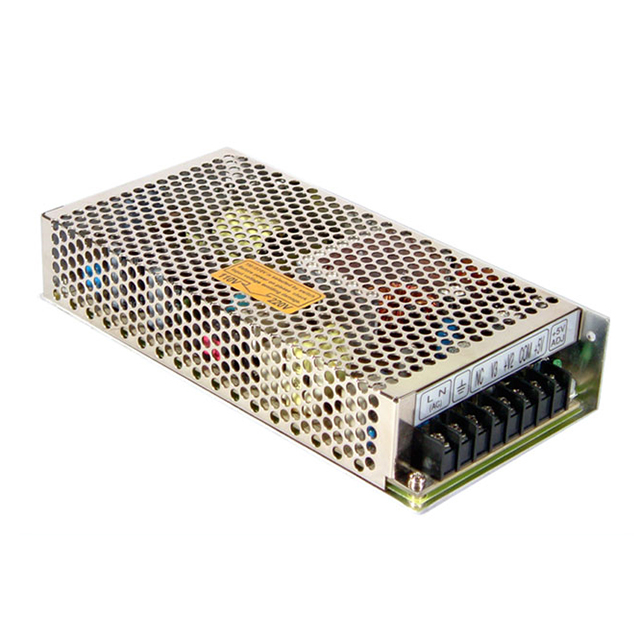

RD-125 Series

Catalog

AC/DC CONVERTER 12V 48V 138W

Part	Voltage - Output 2	Mounting Type	Approval Agency	Voltage - Isolation	Efficiency	Current - Output 2	Type	Voltage - Output 1	Power (Watts)	Features	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Number of Outputs	Voltage - Input [Max]	Voltage - Input [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Applications	Current - Output 1
MEAN WELL USA Inc. RD-125-1248	48 V	Chassis Mount	CB CE cURus TUV	3000 V	86 %	2.3 A	Enclosed	12 V	138 W	Adjustable Output	199 mm	1.5 in	98 mm	7.83 in	3.86 "	38 mm	2	132 VAC 264 VAC 373 VDC	88 VAC 176 VAC 248 VDC	70 °C	-25 °C	ITE (Commercial)	2.3 A
MEAN WELL USA Inc. RD-125A	12 V	Chassis Mount	CB CE cURus TUV	3000 V		7.7 A	Enclosed	5 V	131 W	Adjustable Output	199 mm	1.5 in	98 mm	7.83 in	3.86 "	38 mm	2	132 VAC 264 VAC 373 VDC	88 VAC 176 VAC 248 VDC	70 °C	-25 °C	ITE (Commercial)	7.7 A
MEAN WELL USA Inc. RD-125-2412	12 V	Chassis Mount	CB CE cURus TUV	3000 V	85 %	3.7 A	Enclosed	24 V	133 W	Adjustable Output	199 mm	1.5 in	98 mm	7.83 in	3.86 "	38 mm	2	132 VAC 264 VAC 373 VDC	88 VAC 176 VAC 248 VDC	70 °C	-25 °C	ITE (Commercial)	3.7 A
MEAN WELL USA Inc. RD-125-1224	24 V	Chassis Mount	CB CE cURus TUV	3000 V	85 %	3.7 A	Enclosed	12 V	133 W	Adjustable Output	199 mm	1.5 in	98 mm	7.83 in	3.86 "	38 mm	2	132 VAC 264 VAC 373 VDC	88 VAC 176 VAC 248 VDC	70 °C	-25 °C	ITE (Commercial)	3.7 A
MEAN WELL USA Inc. RD-125-2448	48 V	Chassis Mount	CB CE cURus TUV	3000 V	86 %	2 A	Enclosed	24 V	144 W	Adjustable Output	199 mm	1.5 in	98 mm	7.83 in	3.86 "	38 mm	2	132 VAC 264 VAC 373 VDC	88 VAC 176 VAC 248 VDC	70 °C	-25 °C	ITE (Commercial)	2 A
