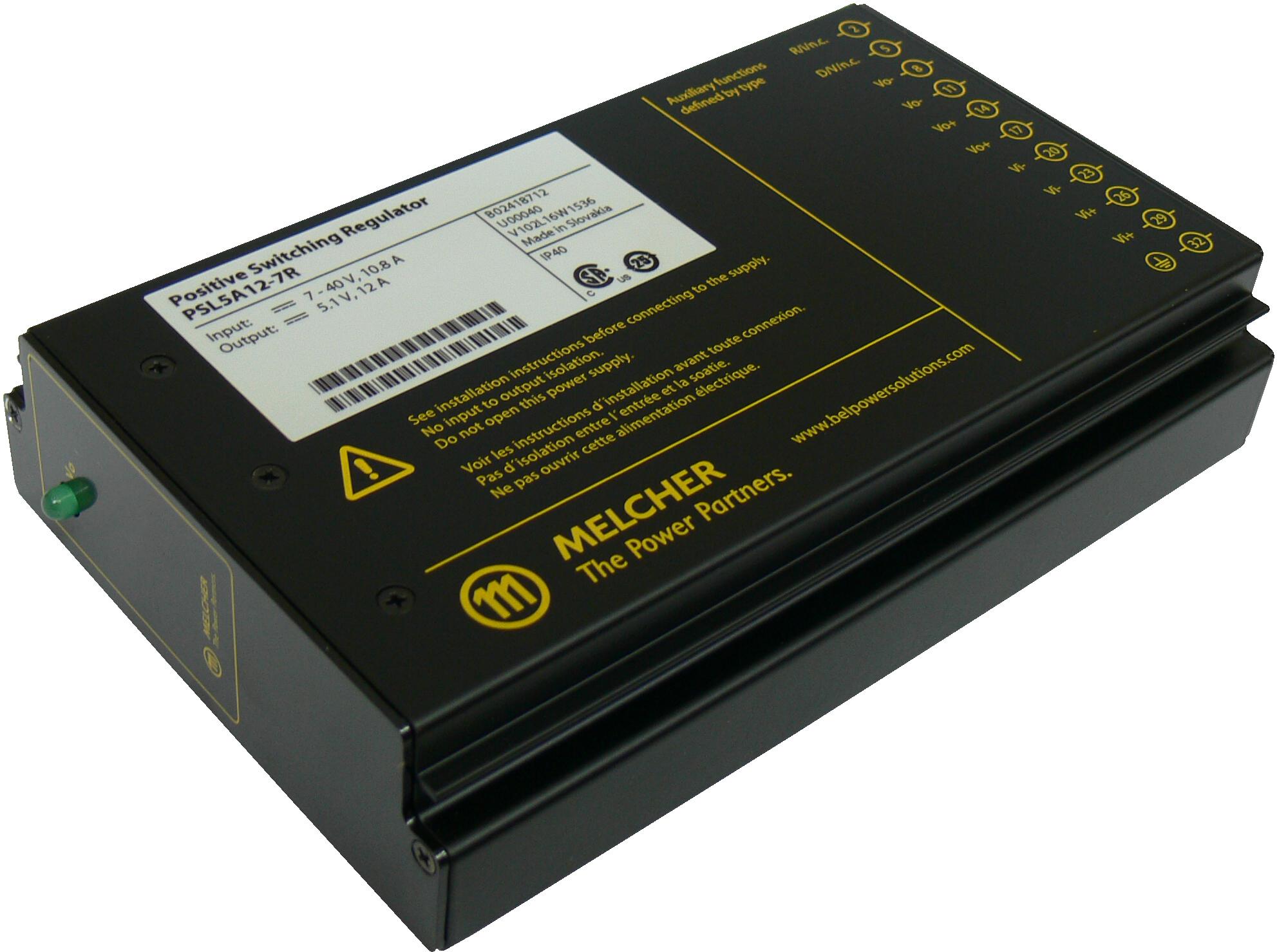

PSC, PSL Series
Manufacturer: Bel Fuse Inc.
Beta
⌘K
NON-ISOLATED DC/DC CONVERTERS POSITIVE SWITCHING REGULATOR
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Efficiency | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [z] | Voltage - Output 1 | Current - Output (Max) [Max] | Mounting Type | Voltage - Input (Max) [Max] | Voltage - Input (Min) [Min] | Number of Outputs | Type | Applications | Power (Watts) | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bel Fuse Inc. | 71 °C | -25 °C | 89 % | 3.46 in | 151 mm | 5.94 " | 1.27 " | 32.2 mm | 88 mm | 12 V | 6 A | Chassis Mount | 144 V | 18 V | 1 | Conformal Coated Enclosed | ITE (Commercial) Railway | 72 W | cCSAus CE |
 Bel Fuse Inc. | 71 °C | -40 C | 79 % | 1.44 in | 168.5 mm | 6.63 in | 4.21 in | 107 mm | 36.5 mm | 5.1 V | 10 A | Chassis Mount | 80 V | 8 V | 1 | Conformal Coated Enclosed | ITE (Commercial) Railway | 51 W | cCSAus CE |
 Bel Fuse Inc. | 71 °C | -25 °C | 95 % | 1.44 in | 168.5 mm | 6.63 in | 4.21 in | 107 mm | 36.5 mm | 24 V | 8 A | Chassis Mount | 80 V | 29 V | 1 | Conformal Coated Enclosed | ITE (Commercial) Railway | 192 W | cCSAus CE |
