55A1841 Series
Manufacturer: TE Connectivity Aerospace, Defense and Marine
Beta
⌘K

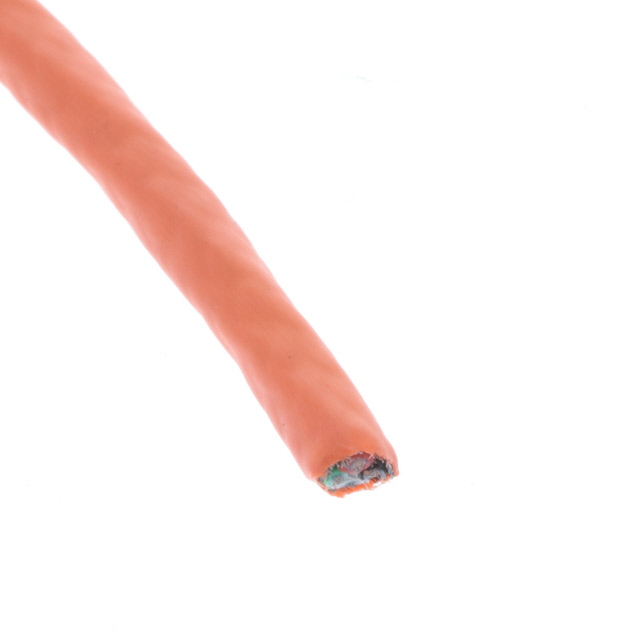

CABLE 4COND 24AWG ORG SHLD 500'
| Part | Shield Type | Length [x] | Length [x] | Jacket Color | Shield Material | Shield Coverage | Length | Jacket (Insulation) Material | Number of Conductors | Cable Type | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Insulation | Length | Operating Temperature [Min] | Operating Temperature [Max] | Wire Gauge | Voltage | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Conductor Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Aerospace, Defense and Marine | Braid | 25 ft 50 ft 100 ft 500 ' | 7.62 m 30.5 m 152.4 m | Orange | Copper Tinned | 85 % | 15.24 m 300 mm | Ethylene Tetrafluoroethylene (ETFE) | 4 | Multi-Conductor | 0.142 in | 3.61 mm | Ethylene Tetrafluoroethylene (ETFE) | 1 ft | -65 ░C | 150 °C | 24 AWG | 600 V | 0.203 mm | 0.008 in | Copper Tinned |
