400F0-15 Series
Manufacturer: CNC Tech
Beta
⌘K

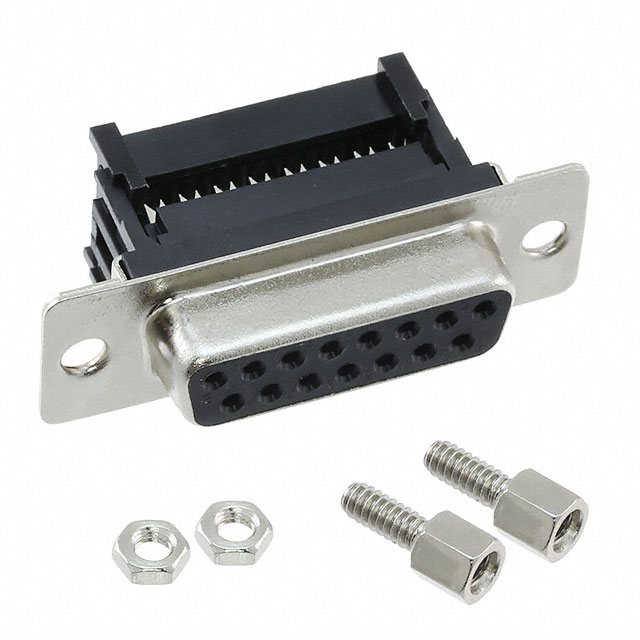

CONN D-SUB RCPT 15POS IDC
| Part | Dielectric Material | Contact Material | Voltage Rating | Operating Temperature [Min] | Operating Temperature [Max] | Connector Type | Shell Size, Connector Layout | Flange Feature | Number of Positions | Material Flammability Rating | Mounting Type | Contact Type | Shell Material, Finish | Number of Rows [custom] | Contact Finish | Termination | Connector Style | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CNC Tech | Polybutylene Terephthalate (PBT) Glass Filled | Brass | 250 V | -40 C | 105 ░C | Receptacle Female Sockets | 2 | 4-40 Mating Side Female Screwlock | 15 | UL94 V-0 | Free Hanging (In-Line) | Signal | Nickel Plated Steel | 2 | Gold | IDC Ribbon Cable | D-Sub | Feed Through |
 CNC Tech | Polybutylene Terephthalate (PBT) Glass Filled | Brass | 250 V | -40 C | 105 ░C | Receptacle Female Sockets | 2 | 4-40 Mating Side Female Screwlock | 15 | UL94 V-0 | Free Hanging (In-Line) | Signal | Nickel Plated Steel | 2 | Gold | IDC Ribbon Cable | D-Sub | Feed Through Strain Relief |
