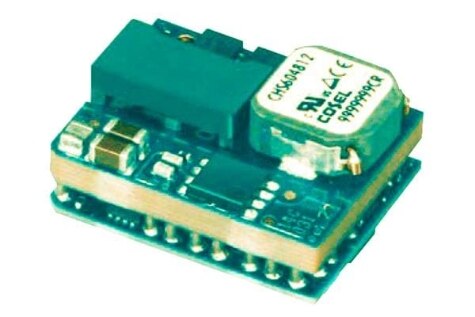

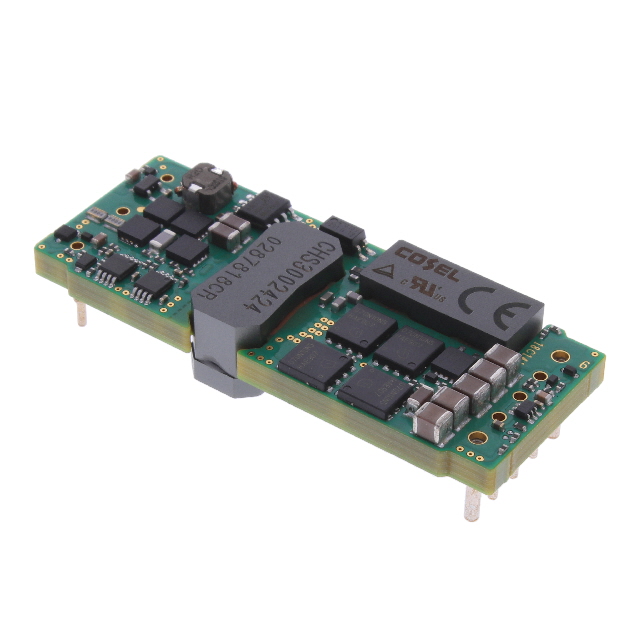

CHS300 Series
Isolated DC/DC Converters - Through Hole 252W 18-36Vin 24V 10.5A Remote on/off
Manufacturer: Cosel USA, Inc.
Catalog
Isolated DC/DC Converters - Through Hole 252W 18-36Vin 24V 10.5A Remote on/off
Isolated DC/DC Converters - Through Hole 252W 18-36Vin 24V 10.5A Remote on/off
Isolated DC/DC Converters - Through Hole 252W 18-36Vin 24V 10.5A Remote on/off
Isolated DC/DC Converters - Through Hole 252W 18-36Vin 24V 10.5A Remote on/off
| Part | Features | Standard Number | Number of Outputs | Supplier Device Package | Voltage - Isolation | Type | Voltage - Input (Min) [Min] | Applications | Voltage - Output 1 | Mounting Type | Current - Output (Max) [Max] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [z] | Power (Watts) | Control Features | Approval Agency | Package / Case | Operating Temperature [Max] | Operating Temperature [Min] | Efficiency | Voltage - Input (Max) [Max] | Size / Dimension [z] | Size / Dimension [y] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Cosel USA, Inc. | Adjustable Output Remote On/Off | 60950-1 62368-1 | 1 | Eighth Brick | 2250 VDC | Isolated Module | 18 V | ITE (Commercial) | 32 V | Through Hole | 7.9 A | 11 mm | 22.9 mm | 0.9 in | 58.4 mm | 2.3 in | 0.43 in | 253 W | Active High Enable | CE cURus TUV UKCA | Eighth Brick | 85 °C | -40 C | 94 % | 36 V | ||
Cosel USA, Inc. | Adjustable Output | 1 | 2250 VDC | Isolated Module | 18 V | ITE (Commercial) | 32 V | Through Hole | 7.9 A | 11 mm | 22.9 mm | 0.9 in | 58.4 mm | 2.3 in | 0.43 in | 253 W | Active Low Enable | CE cURus TUV | 8-DIP Module | 85 °C | -40 °C | 94 % | 36 V | ||||
Cosel USA, Inc. | Adjustable Output | 1 | 2250 VDC | Isolated Module | 18 V | ITE (Commercial) | 28 V | Through Hole | 9 A | 11 mm | 22.9 mm | 0.9 in | 58.4 mm | 2.3 in | 0.43 in | 252 W | Active Low Enable | CE cURus TUV | 8-DIP Module | 85 °C | -40 °C | 94 % | 36 V | ||||
Cosel USA, Inc. | Adjustable Output | 60950-1 62368-1 | 1 | Eighth Brick | 2250 VDC | Isolated Module | 18 V | ITE (Commercial) | 32 V | Through Hole | 7.9 A | 11 mm | 22.9 mm | 0.9 in | 58.4 mm | 2.3 in | 0.43 in | 253 W | CE cURus TUV UKCA | Eighth Brick | 85 °C | -40 C | 94 % | 36 V | |||
Cosel USA, Inc. | Adjustable Output Baseplate | 60950-1 62368-1 | 1 | Eighth Brick | 2250 VDC | Isolated Module | 18 V | ITE (Commercial) | 24 V | Through Hole | 10.5 A | 0.92 " | 58.9 mm | 2.32 in | 0.5 in | 252 W | CE cURus TUV UKCA | Eighth Brick | 85 °C | -40 C | 94 % | 36 V | 12.7 mm | 23.3 mm | |||
Cosel USA, Inc. | Adjustable Output | 60950-1 62368-1 | 1 | Eighth Brick | 2250 VDC | Isolated Module | 18 V | ITE (Commercial) | 32 V | Through Hole | 7.9 A | 11 mm | 22.9 mm | 0.9 in | 58.4 mm | 2.3 in | 0.43 in | 253 W | CE cURus TUV UKCA | Eighth Brick | 85 °C | -40 C | 94 % | 36 V | |||
Cosel USA, Inc. | Adjustable Output | 60950-1 62368-1 | 1 | Eighth Brick | 2250 VDC | Isolated Module | 18 V | ITE (Commercial) | 28 V | Through Hole | 9 A | 11 mm | 22.9 mm | 0.9 in | 58.4 mm | 2.3 in | 0.43 in | 252 W | CE cURus TUV UKCA | Eighth Brick | 85 °C | -40 C | 94 % | 36 V | |||
Cosel USA, Inc. | Adjustable Output | 60950-1 62368-1 | 1 | Eighth Brick | 2250 VDC | Isolated Module | 18 V | ITE (Commercial) | 28 V | Through Hole | 9 A | 11 mm | 22.9 mm | 0.9 in | 58.4 mm | 2.3 in | 0.43 in | 252 W | CE cURus TUV UKCA | Eighth Brick | 85 °C | -40 C | 94 % | 36 V | |||
Cosel USA, Inc. | Adjustable Output | 1 | 2250 VDC | Isolated Module | 18 V | ITE (Commercial) | 24 V | Through Hole | 10.5 A | 11 mm | 22.9 mm | 0.9 in | 58.4 mm | 2.3 in | 0.43 in | 252 W | Active Low Enable | CE cURus TUV | 8-DIP Module | 85 °C | -40 °C | 94 % | 36 V | ||||
Cosel USA, Inc. | Adjustable Output | 60950-1 62368-1 | 1 | Eighth Brick | 2250 VDC | Isolated Module | 18 V | ITE (Commercial) | 28 V | Through Hole | 9 A | 11 mm | 22.9 mm | 0.9 in | 58.4 mm | 2.3 in | 0.43 in | 252 W | CE cURus TUV UKCA | Eighth Brick | 85 °C | -40 C | 94 % | 36 V |
