PE-51 Series
Board Mount Current Sensors THT Current Sense 5000uH 50Ohms
Manufacturer: Pulse Electronics
Catalog
Board Mount Current Sensors THT Current Sense 5000uH 50Ohms
Beta
⌘K
Board Mount Current Sensors THT Current Sense 5000uH 50Ohms
Board Mount Current Sensors THT Current Sense 5000uH 50Ohms
Board Mount Current Sensors THT Current Sense 5000uH 50Ohms
| Part | Type | DC Resistance (DCR) [custom] | DC Resistance (DCR) [custom] | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Current Ratio | Inductance | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Termination Style | Current Rating (Amps) | Frequency Range [Max] | Frequency Range [Min] | Mounting Type | DC Resistance (DCR) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

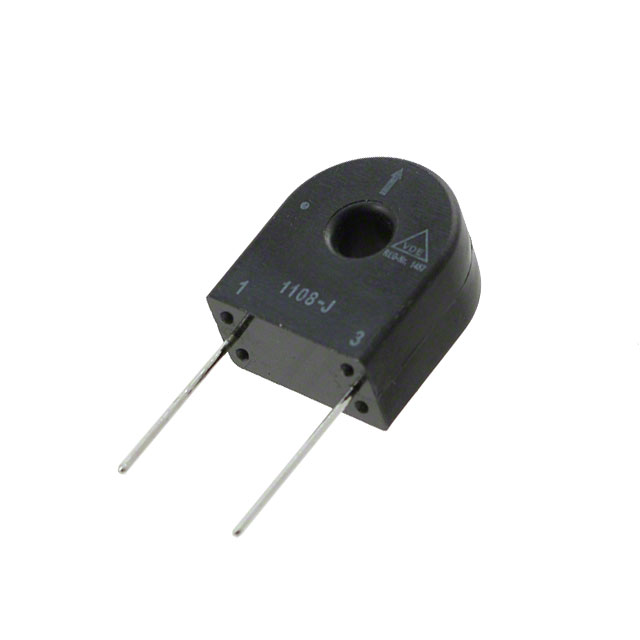

 Pulse Electronics | Invasive | 100 Ohm | 1.4 Ohm | 20.32 mm | 0.8 " | 100:1 | 20 mH | 9.9 mm | 17.01 mm | 0.39 in | 0.67 " | PC Pin | 20 A | 200 kHz | 20 kHz | Through Hole | |

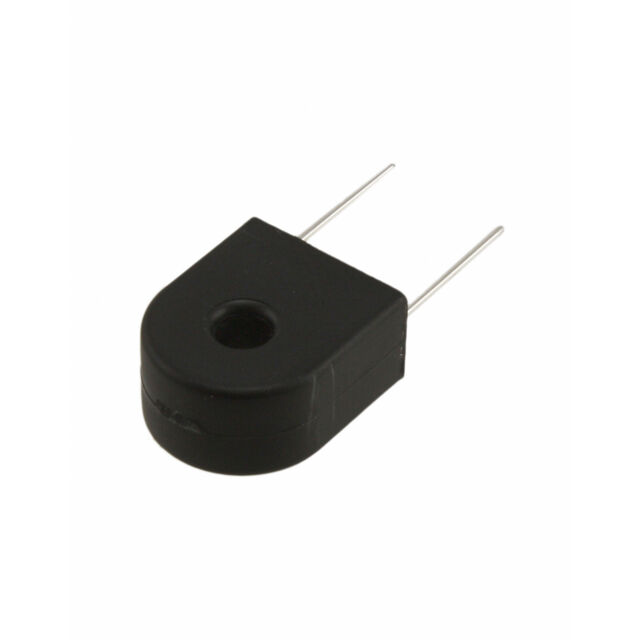

 Pulse Electronics | Invasive | 20.32 mm | 0.8 " | 50:1 | 5 mH | 9.9 mm | 17.01 mm | 0.39 in | 0.67 " | PC Pin | 20 A | 200 kHz | 20 kHz | Through Hole | 50 Ohm 700 mOhm | ||

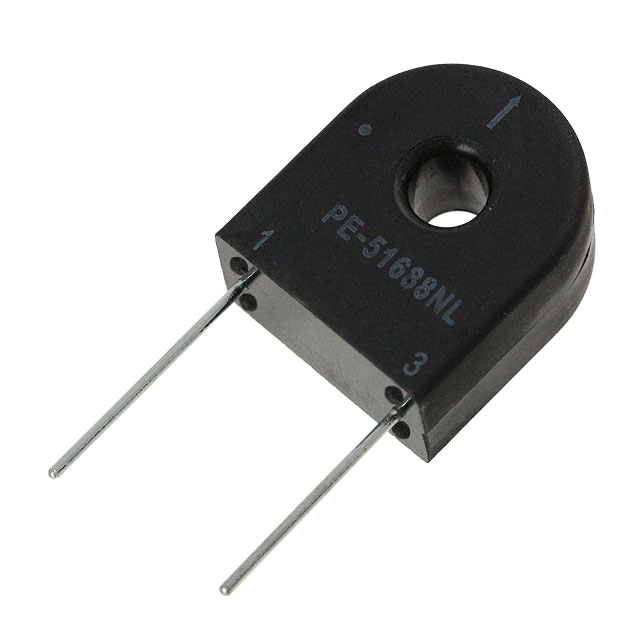

 Pulse Electronics | Invasive | 200 Ohm | 4.5 Ohm | 20.32 mm | 0.8 " | 200:1 | 80 mH | 9.9 mm | 17.01 mm | 0.39 in | 0.67 " | PC Pin | 20 A | 200 kHz | 20 kHz | Through Hole |
