Q45V Series

Catalog

RANGE: 0.08 - 9 M; INPUT: 90-250

Part	Ingress Protection	Cable Length	Cable Length	Response Time	Output Configuration	Light Source	Voltage - Supply [Min]	Voltage - Supply [Max]	Sensing Method	Connection Method	Sensing Distance	Sensing Distance	Operating Temperature [Max]	Operating Temperature [Min]	Adjustment Type	Sensing Distance [Min]	Sensing Distance [Min]	Sensing Distance [Max]	Sensing Distance [Max]	Sensing Distance [Max]
BANNER ENGINEERING Q45VR2LV W/30	IEC IEC IP67 IP67 NEMA 6P	354.33 in	9 m	15 ms	SPDT - Dark-ON/Light-ON	Red (680nm)	90 VAC	250 VAC	Retroreflective NonPolarized	Cable	9 m	29.53 '	70 °C	-40 C	Adjustable Potentiometer

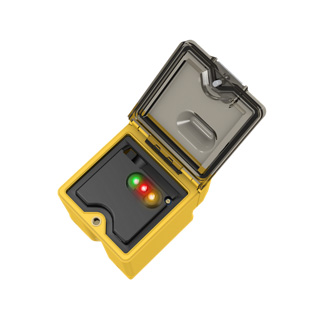

BANNER ENGINEERING Q45VR3LV W/30	IEC IEC IP67 IP67 NEMA 6P	78.74 "	2 m	15 ms	SPDT	Red (680nm)	12 VDC 24 VAC	250 VAC 250 VDC	Retroreflective NonPolarized	Cable with Connector			55 °C	-25 °C	Adjustable Potentiometer	80 mm	3.15 "	9000 mm	354.33 in
BANNER ENGINEERING Q45VR3LV	IEC IEC IP67 IP67 NEMA 6P	78.74 "	2 m	15 ms	SPDT	Red (680nm)	12 VDC 24 VAC	250 VDC 250 VAC	Retroreflective NonPolarized	Cable			55 °C	-25 °C	Adjustable	800 mm	31.5 in		354.33 in	9000 mm
BANNER ENGINEERING Q45VR2LV	IEC IEC IP67 IP67 NEMA 6P	78.74 "	2 m	15 ms	Light-On/Dark-On	LED	90 VAC	250 VAC	Retroreflective NonPolarized	Cable	9 m	29.53 '	70 °C	-40 C	Adjustable Potentiometer

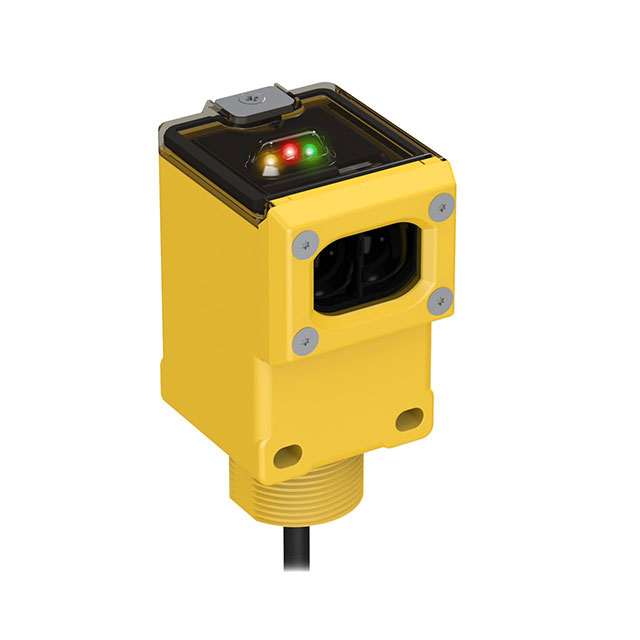

BANNER ENGINEERING Q45VR3R	IEC IEC IP67 IP67 NEMA 6P	78.74 "	2 m	15 ms	SPDT	Infrared (880nm)	12 VDC 24 VAC	250 VDC 250 VAC	Through-Beam	Cable	60 m	196.85 ft	55 °C	-25 °C	Adjustable
BANNER ENGINEERING Q45VR3LPQ	IEC IEC IP67 IP67 NEMA 6P			15 ms	SPDT	Red (680nm)	12 VDC 24 VAC	250 VDC 250 VAC	Polarized Retroreflective	Connector			55 °C	-25 °C	Adjustable	15 cm	5.91 "	6 m	236.22 "
BANNER ENGINEERING Q45VR3FQ	IEC IEC IP67 IP67 NEMA 6P			15 ms	SPDT	Infrared (880nm)	12 VDC 24 VAC	250 VDC 250 VAC	Fiber Optic	Connector			55 °C	-25 °C	Adjustable

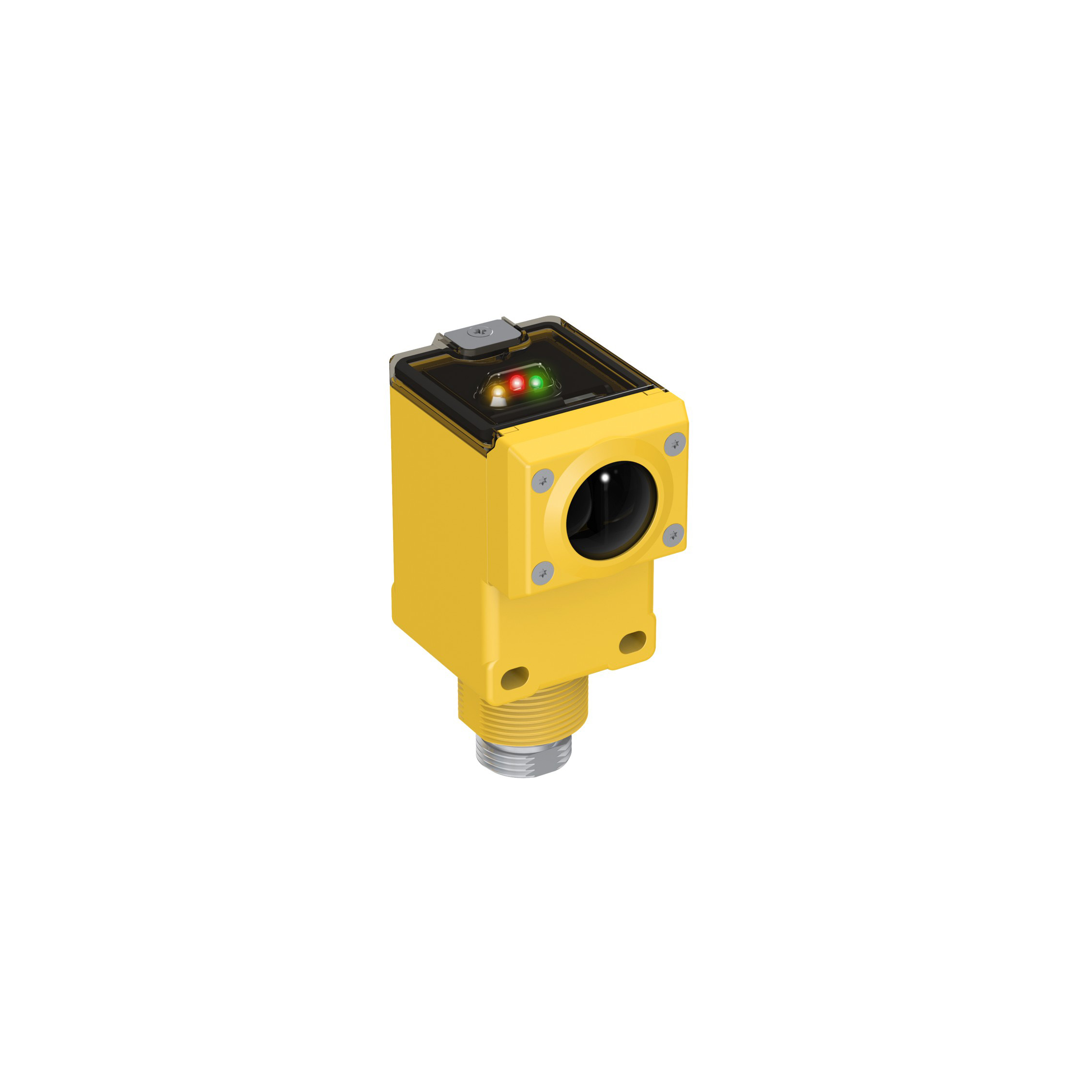

BANNER ENGINEERING Q45VR2CVQ	IEC IEC IP67 IP67 NEMA 6P			15 ms	SPDT - Dark-ON/Light-ON	Red (680nm)	90 VAC	250 VAC	Convergent	Connector	38 mm	1.496 in	70 °C	-40 C	Adjustable Potentiometer
BANNER ENGINEERING Q45VR3LP	IEC IEC IP67 IP67 NEMA 6P	78.74 "	2 m	15 ms	SPDT	Red (680nm)	12 VDC 24 VAC	250 VDC 250 VAC	Polarized Retroreflective	Cable			55 °C	-25 °C	Adjustable	15 cm	5.91 "	6 m	236.22 "
BANNER ENGINEERING Q45VR3LVQ	IEC IEC IP67 IP67 NEMA 6P			15 ms	SPDT	Red (680nm)	12 VDC 24 VAC	250 VDC 250 VAC	Retroreflective NonPolarized	Connector			55 °C	-25 °C	Adjustable	800 mm	31.5 in		354.33 in	9000 mm
