LB Series

Catalog

POWER INDUCTORS - SMD 963-LSQBA201616T330M RPLCMT PN 0806 33UH 2210MOHMS 85MA

Part	Supplier Device Package	Tolerance	Package / Case	Type	Current Rating (Amps)	Inductance	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Mounting Type	Material - Core	Shielding	Frequency - Self Resonant	Inductance Frequency - Test	DC Resistance (DCR)	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	DC Resistance (DCR) [Max]	Package / Case	Ratings	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
Taiyo Yuden LB2016T330M	0806 (2016 Metric)	20 %	0806 (2016 Metric)	Drum Core Wirewound	85 mA	33 µH	105 ░C	-25 °C	1.6 mm	0.079 in	0.063 "	2 mm	Surface Mount	Ferrite	Unshielded	14 MHz	2.52 MHz	1.7 Ohm	1.8 mm	0.071 in
Taiyo Yuden LB2518T470KV		10 %	1007 (2518 Metric)	Wirewound	85 mA	47 µH	105 ░C	-40 C	1.8 mm	0.098 in	0.071 in	2.5 mm	Surface Mount		Unshielded	12 MHz	2.52 MHz		0.079 in		2 mm	1.235 Ohm
Taiyo Yuden LB2518T4R7M	1007 (2518 Metric)	20 %	1007 (2518 Metric)	Drum Core Wirewound	0.24 A	4.7 ÁH	105 ░C	-25 °C	1.8 mm	0.098 in	0.071 in	2.5 mm	Surface Mount	Ferrite	Semi-Shielded Unshielded	46 MHz	7.96 MHz	130 mOhm	0.079 in		2 mm
Taiyo Yuden LB2518T150MV		20 %	1007 (2518 Metric)	Wirewound	0.145 A	15 µH	105 ░C	-40 C	1.8 mm	0.098 in	0.071 in	2.5 mm	Surface Mount		Unshielded	23 MHz	2.52 MHz		0.079 in		2 mm	416 mOhm

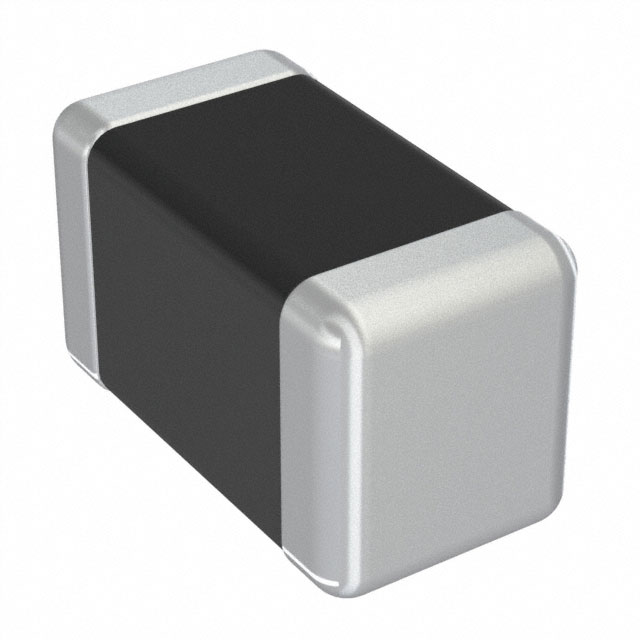

Taiyo Yuden LB3218T151MV	1207	20 %	1207	Wirewound	0.105 A	150 µH	105 ░C	-40 C	1.8 mm	0.126 "	0.071 in	3.2 mm	Surface Mount		Unshielded	7 MHz	0.796 MHz		0.079 in		2 mm	4.16 Ohm	3218 Metric
Taiyo Yuden LB3218T102KV	1207	10 %	1207	Wirewound	0.039 A	1 mH	105 ░C	-40 C	1.8 mm	0.126 "	0.071 in	3.2 mm	Surface Mount		Unshielded	2.4 MHz	252 kHz	35.1 Ohm	0.079 in		2 mm		3218 Metric
Taiyo Yuden LB2012T100KV	0805 (2012 Metric)	10 %	0805	Wirewound	120 mA	10 µH	105 ░C	-40 C	1.25 mm	0.079 in	0.049 "	2 mm	Surface Mount		Unshielded	32 MHz	2.52 MHz	700 mOhm						AEC-Q200	0.057 in	1.45 mm
Taiyo Yuden LB2518T681MV		20 %	1007 (2518 Metric)	Wirewound	0.02 A	680 µH	105 ░C	-40 C	1.8 mm	0.098 in	0.071 in	2.5 mm	Surface Mount		Unshielded	3 MHz	0.796 MHz		0.079 in		2 mm	22.1 Ohm
Taiyo Yuden LB3218T221MV	1207	20 %	1207	Wirewound	80 mA	220 µH	105 ░C	-40 C	1.8 mm	0.126 "	0.071 in	3.2 mm	Surface Mount		Unshielded	5 MHz	0.796 MHz		0.079 in		2 mm	7.02 Ohm	3218 Metric
Taiyo Yuden LB2518T101MV		20 %	1007 (2518 Metric)	Wirewound	60 mA	100 µH	105 ░C	-40 C	1.8 mm	0.098 in	0.071 in	2.5 mm	Surface Mount		Unshielded	9 MHz	0.796 MHz		0.079 in		2 mm	2.73 Ohm
