Planar Series

Catalog

FERRITE CORES & ACCESSORIES 3160N 25% MN-ZN PC95 FERRITE CORE

Part	Height	Height	Gap	Effective Magnetic Volume (Ve) mm³	Material	Supplier Device Package [y]	Supplier Device Package	Supplier Device Package [x]	Core Type	Finish	Core Factor (ΣI/A) mm⁻¹	Effective Length (le) mm [x]	Tolerance	Width	Width [y]	Length	Length	Minimum Core Cross Section (Amin) mm² [custom]	Inductance Factor (Al)	Minimum Core Cross Section (Amin) mm² [Min]	Width [x]	Width [x]	Height [z]	Height [z]	Effective Area (Ae) mm²	Supplier Device Package	Width [y]	Length [x]	Effective Area (Ae) mm² [custom]	Core Factor (ΣI/A) mm⁻¹ [custom]	Effective Length (le) mm [custom]	Supplier Device Package [z]

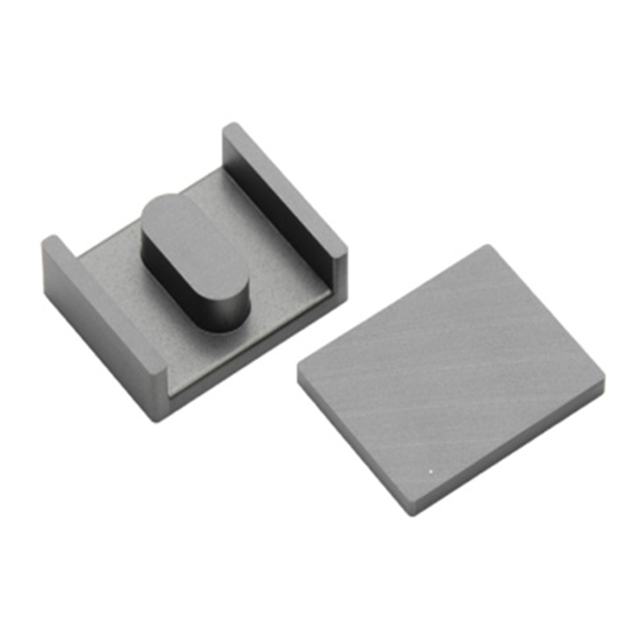

TDK Corporation PC95ELT13X4.4-Z	0.125 in	3.18 mm	Ungapped	357 mm³	PC95	4.4	ELT	13	ELH PLT	Uncoated	0.67 mm⁻¹	23.1 mm	25 %	10.4 mm	0.409 in	0.512 in	13 mm	22.4 mm²	3.16 µH
TDK Corporation PC95EL20X7.7-Z			Ungapped	1400 mm³	PC95		EL		EL	Uncoated	0.47 mm⁻¹	54.6 mm	25 %			0.787 in	20 mm		5.63 µH	52.9 mm²	0.63 in	16 mm	0.151 in	3.83 mm	25.6 mm²	7.7 20

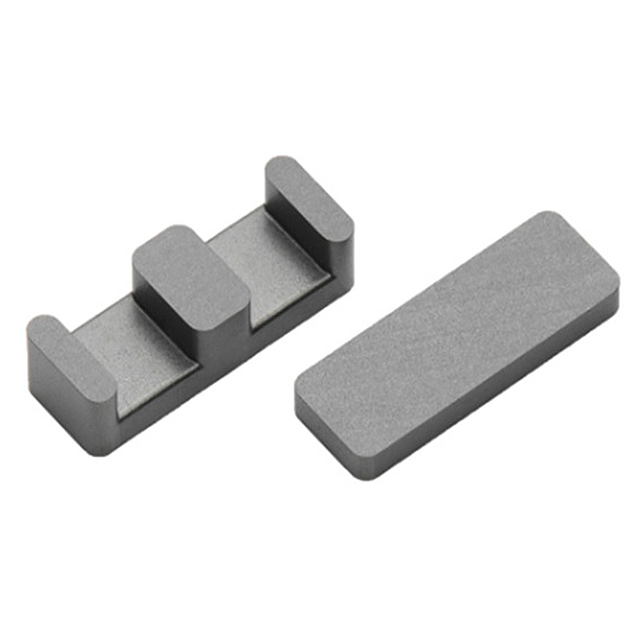

TDK Corporation PC95EI14/5/5-Z			Ungapped	251 mm³	PC95		EI 14 x 5 x 5		HE PLT	Uncoated	1.11 mm⁻¹	15 mm	25 %			0.551 in	14 mm		1.55 µH	15 mm²	0.197 in	5 mm	0.197 in	5 mm	16.7 mm²
TDK Corporation PC95EL25X8.6-Z			Ungapped	2570 mm³	PC95	8.6	EL	25	EL	Uncoated		30 mm	25 %		0.787 in		25 mm		7.54 µH	83 mm²			0.169 in	4.29 mm			20 mm	0.984 in	85.6 mm²	0.35 mm⁻¹

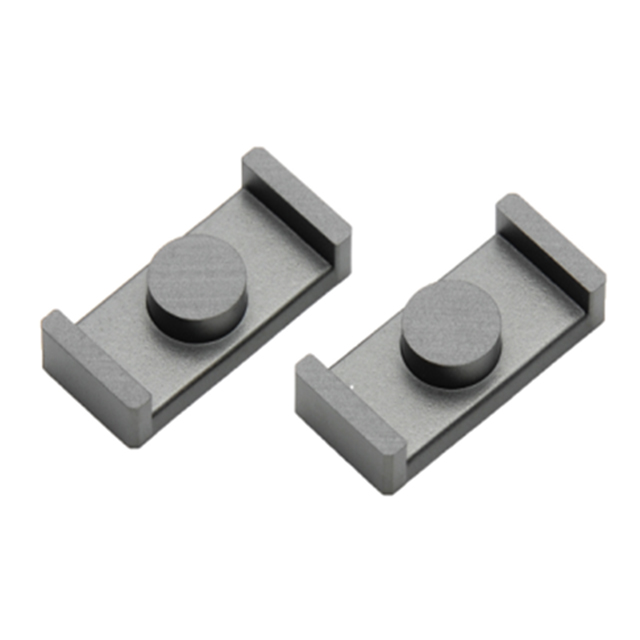

TDK Corporation PC95ER25/5.5/18-Z	0.108 in	2.75 mm	Ungapped	1400 mm³	PC95	5.5	ER	25	ER	Uncoated	0.49 mm⁻¹		25 %			0.996 in	25.3 mm		4.4 µH	38.5 mm²	0.709 "	18 mm			26.1 mm²						53.7 mm	18
