BC050 Series
Manufacturer: GCT
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K
BOARD TO BOARD & MEZZANINE CONNECTORS 6W 1.0MM PITCH PIN HDR DIL SMT VERT NO PEG GFT&R W/CAP
| Part | Number of Positions | Number of Rows | Contact Finish - Mating | Number of Positions Loaded | Fastening Type | Row Spacing - Mating | Contact Material | Shrouding | Insulation Height | Current Rating (Per Contact) | Termination | Pitch - Mating | Contact Shape | Mounting Type | Insulation Material | Operating Temperature (Min) | Operating Temperature (Max) | Contact Type | Insulation Color | Contact Length - Mating | Material Flammability Rating | Contact Finish Thickness - Mating | Voltage Rating | Voltage Rating (Type) | Connector Type | Style | Contact Finish - Post | Contact Finish Thickness - Post | Contact Finish Thickness - Post (string_set) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
6 | 2 | Gold | All | Push-Pull | 0.039 in | Copper Alloy | Unshrouded | 0.039 in | 1 A | Solder | 0.039 in | Square | Surface Mount | Liquid Crystal Polymer (LCP) | -40 °C | 105 °C | Male Pin | Black | 0.15 in | UL94 V-0 | Flash | 250 V | DC | Header | Board | Gold | |||
18 | 2 | Gold | All | Push-Pull | 0.039 in | Copper Alloy | Unshrouded | 0.039 in | 1 A | Solder | 0.039 in | Square | Surface Mount | Liquid Crystal Polymer (LCP) | -40 °C | 105 °C | Male Pin | Black | 0.079 in | UL94 V-0 | Flash | 250 V | DC | Header | Board | Gold | |||
8 | 2 | Gold | All | Push-Pull | 0.039 in | Copper Alloy | Unshrouded | 0.039 in | 1 A | Solder | 0.039 in | Square | Surface Mount | Liquid Crystal Polymer (LCP) | -40 °C | 105 °C | Male Pin | Black | 0.079 in | UL94 V-0 | Flash | 250 V | DC | Header | Board | Gold | |||

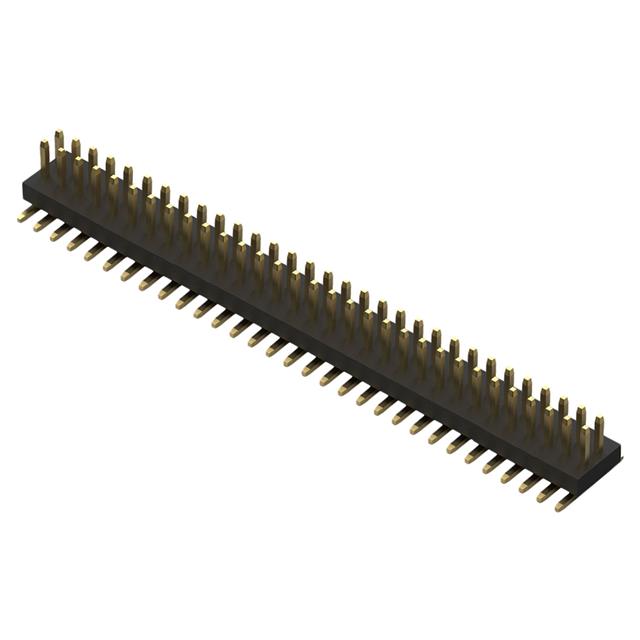

62 | 2 | Gold | All | Push-Pull | 0.039 in | Copper Alloy | Unshrouded | 0.039 in | 1 A | Solder | 0.039 in | Square | Surface Mount | Liquid Crystal Polymer (LCP) | -40 °C | 105 °C | Male Pin | Black | 0.15 in | UL94 V-0 | Flash | 250 V | DC | Header | Board | Gold | Flash | Flash | |

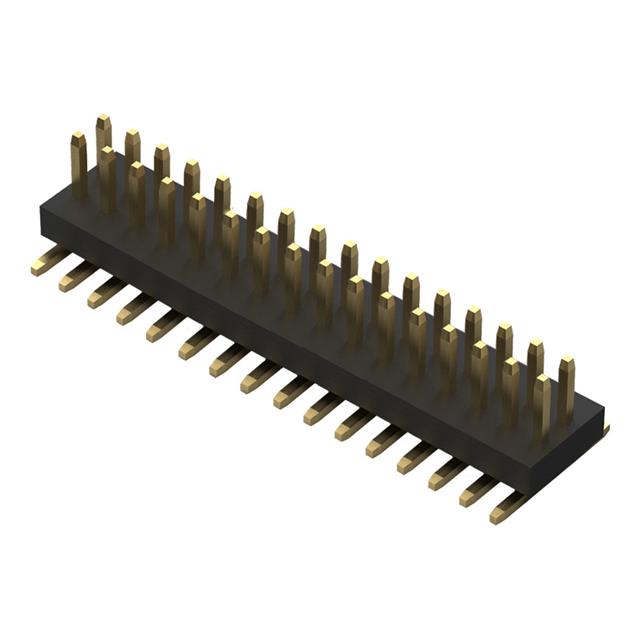

32 | 2 | Gold | All | Push-Pull | 0.039 in | Copper Alloy | Unshrouded | 0.039 in | 1 A | Solder | 0.039 in | Square | Surface Mount | Liquid Crystal Polymer (LCP) | -40 °C | 105 °C | Male Pin | Black | 0.079 in | UL94 V-0 | Flash | 250 V | DC | Header | Board | Gold | Flash | Flash | |

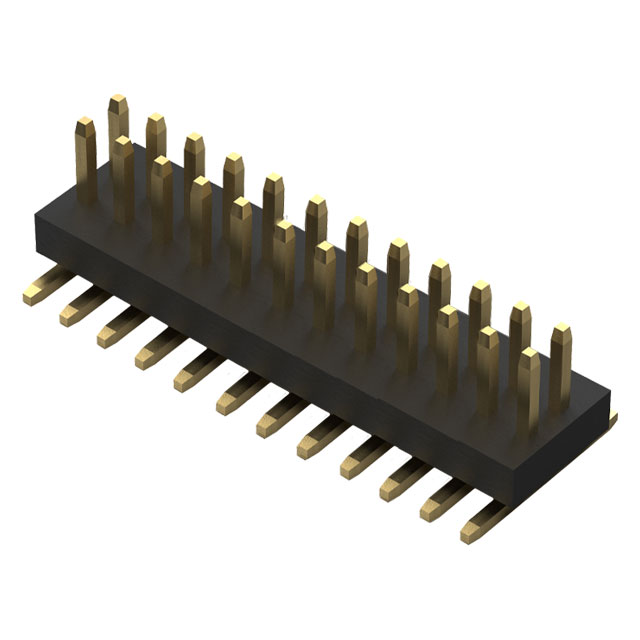

24 pos | 2 | Gold | All | Push-Pull | 0.039 in | Copper Alloy | Unshrouded | 0.039 in | 1 A | Solder | 0.039 in | Square | Surface Mount | Liquid Crystal Polymer (LCP) | -40 °C | 105 °C | Male Pin | Black | 0.079 in | UL94 V-0 | Flash | 250 V | DC | Header | Board | Gold | Flash | Flash | |

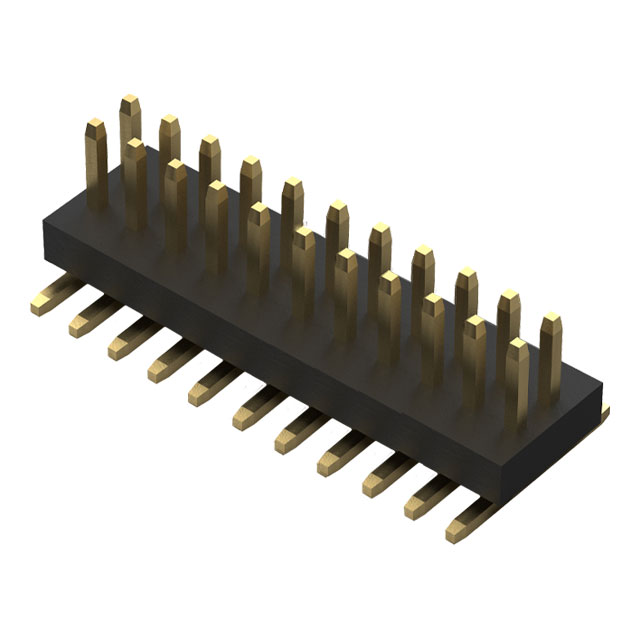

22 | 2 | Gold | All | Push-Pull | 0.039 in | Copper Alloy | Unshrouded | 0.039 in | 1 A | Solder | 0.039 in | Square | Surface Mount | Liquid Crystal Polymer (LCP) | -40 °C | 105 °C | Male Pin | Black | 0.079 in | UL94 V-0 | Flash | 250 V | DC | Header | Board | Gold | Flash | Flash | |
10 | 2 | Gold | All | Push-Pull | 0.039 in | Copper Alloy | Unshrouded | 0.039 in | 1 A | Solder | 0.039 in | Square | Surface Mount | Liquid Crystal Polymer (LCP) | -40 °C | 105 °C | Male Pin | Black | 0.079 in | UL94 V-0 | Flash | 250 V | DC | Header | Board | Gold |
