776280 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

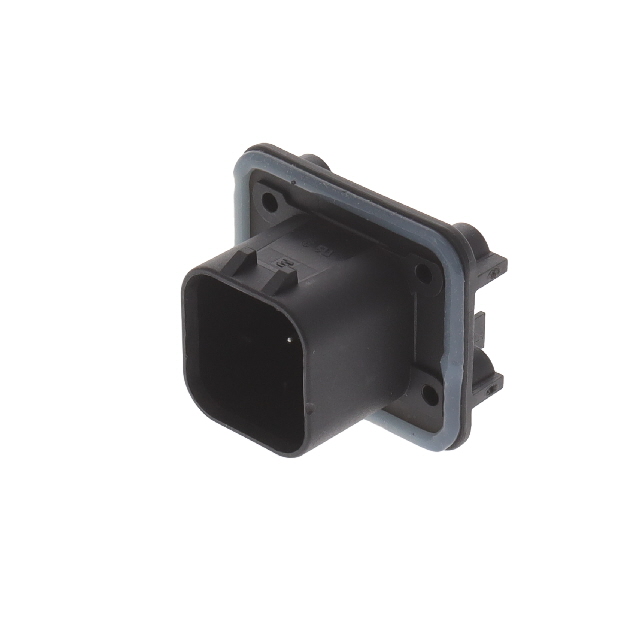

CONN HEADER R/A 8POS 4MM
| Part | Applications | Voltage Rating | Insulation Material | Style | Number of Positions | Contact Material | Contact Shape | Features | Row Spacing - Mating | Row Spacing - Mating | Fastening Type | Current Rating (Amps) | Operating Temperature [Min] | Operating Temperature [Max] | Insulation Color | Pitch - Mating | Pitch - Mating | Termination | Shrouding | Number of Rows [custom] | Connector Type | Mounting Type | Number of Positions Loaded | Contact Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Automotive Industrial | 250 VAC | Polybutylene Terephthalate (PBT) Glass Filled | Board to Cable/Wire | 8 | Brass | Circular | Board Guide Sealed | 4 mm | 0.157 " | Locking Ramp | Varies by Wire Gauge | -40 C | 105 ░C | Orange | 4 mm | 0.157 in | Solder | Shrouded - 4 Wall | 3 | Header | Panel Mount Right Angle Through Hole | All | Male Pin |
