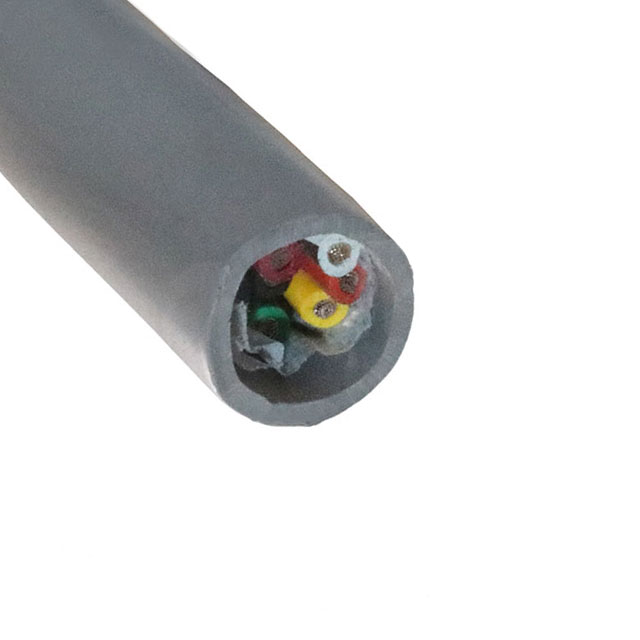

5449/12 Series
Manufacturer: ALPHA WIRE
Beta
⌘K
CBL 12COND 14AWG SLT 1000=1000'
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Usage | Conductor Material | Conductor Insulation | Jacket (Insulation) Material | Number of Conductors | Jacket Color | Features | Ratings | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Strand [custom] | Conductor Strand [custom] | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Cable Type | Wire Gauge | Voltage | Length [x] | Length [x] | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | -30 ░C | 105 ░C | Communication Control | Copper Tinned | Poly-Vinyl Chloride (PVC) | Poly-Vinyl Chloride (PVC) | 12 | Slate | Biological Compatibility Rip Cord | ISO 10993 UL Style 2501 | 17.86 mm | 0.703 in | 41 | 30 | 1.6 mm | 0.063 in | Multi-Conductor | 14.5 AWG | 600 V | ||||
ALPHA WIRE | -30 ░C | 105 ░C | Communication Control | Copper Tinned | Poly-Vinyl Chloride (PVC) | Poly-Vinyl Chloride (PVC) | 12 | Slate | Biological Compatibility Rip Cord | ISO 10993 UL Style 2501 | 17.86 mm | 0.703 in | 41 | 30 | 1.6 mm | 0.063 in | Multi-Conductor | 14.5 AWG | 600 V | 100 ft | 30.5 m | ||
ALPHA WIRE | -30 ░C | 105 ░C | Communication Control | Copper Tinned | Poly-Vinyl Chloride (PVC) | Poly-Vinyl Chloride (PVC) | 12 | Slate | Biological Compatibility Rip Cord | ISO 10993 UL Style 2501 | 17.86 mm | 0.703 in | 41 | 30 | 1.6 mm | 0.063 in | Multi-Conductor | 14.5 AWG | 600 V | 152.4 m | 500 ft |
