R20940 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

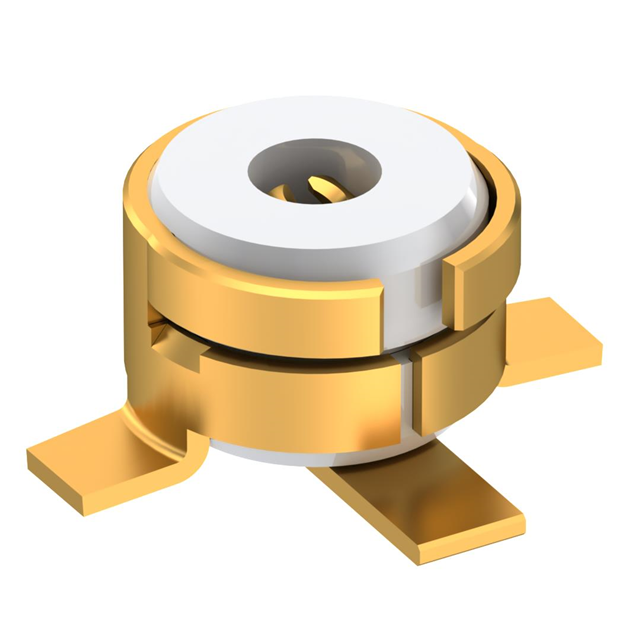

MMS / STRAIGHT JACK RECEPTACLE F
| Part | Voltage Rating | Operating Temperature [Max] | Operating Temperature [Min] | Mating Cycles | Body Material | Body Finish | Dielectric Material | Center Contact Plating | Number of Ports | Contact Termination | Fastening Type | Frequency - Max [Max] | Connector Type | Housing Color | Mounting Type | Shield Termination | Center Contact Material | Impedance | Connector Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | 50 V | 125 °C | -40 C | 50 | Phosphor Bronze | Gold | Polytetrafluoroethylene (PTFE) | Gold | 1 | Solder | Snap-On | 6000 MHz | Jack Male Pin | Gold | Surface Mount | Solder | Beryllium Copper | 50 Ohms | |
 Radiall USA, Inc. | 50 V | 125 °C | -40 C | 50 | Phosphor Bronze | Gold | Polytetrafluoroethylene (PTFE) | Gold | 1 | Solder | Snap-On | 6000 MHz | Receptacle Female Socket | Gold | Surface Mount | Solder | Beryllium Copper | 50 Ohms | MMS |
 Radiall USA, Inc. | 50 V | 125 °C | -40 C | 50 | Phosphor Bronze | Gold | Polytetrafluoroethylene (PTFE) | Gold | 1 | Solder | Snap-On | 6000 MHz | Receptacle Female Socket | Gold | Surface Mount | Solder | Beryllium Copper | 50 Ohms |
