M4635 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

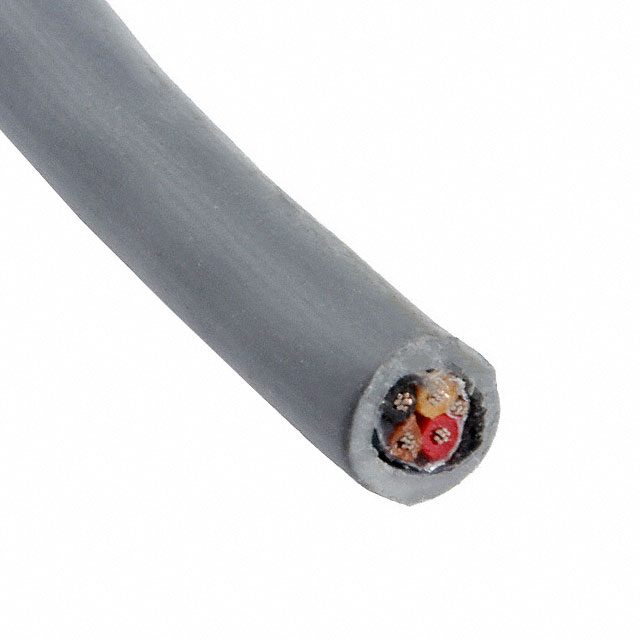

CABLE 4COND 22AWG SHLD 3000'
| Part | Shield Coverage | Shield Material | Number of Conductors | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Jacket Color | Ratings | Features | Cable Type | Voltage | Jacket (Insulation) Material | Conductor Insulation | Operating Temperature [Max] | Operating Temperature [Min] | Wire Gauge | Conductor Strand [custom] | Conductor Strand [custom] | Conductor Material | Length | Length | Shield Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 100 % | Aluminum | 4 | 0.192 in | 4.88 mm | 0.813 mm | 0.032 in | Slate | UL Style 2464 | Drain Wire Rip Cord | Multi-Conductor | 300 VDC | Poly-Vinyl Chloride (PVC) | Poly-Vinyl Chloride (PVC) | 80 °C | -20 ░C | 22 AWG | 28 AWG | 7 | Copper Tinned | 914.4 m | 3000 ' | Foil |
