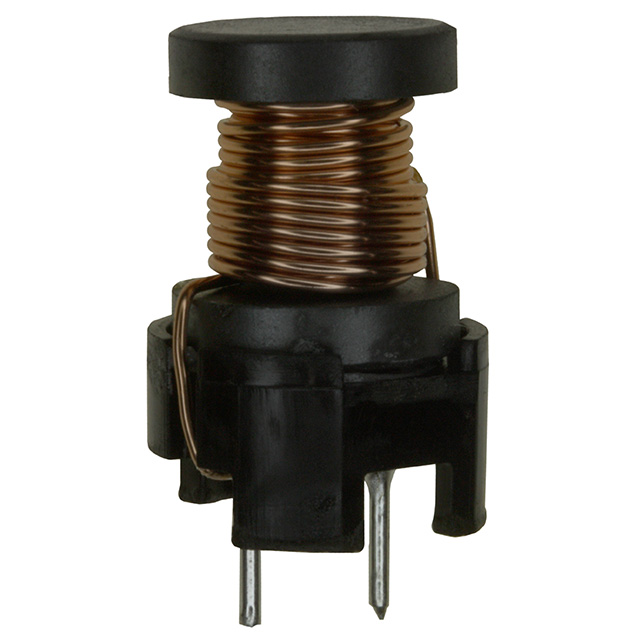

ELC-18 Series
Manufacturer: Panasonic Industrial Automation Sales
Beta
⌘K
FIXED IND 120UH 2.8A 47 MOHM TH
| Part | Type | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Mounting Type | Material - Core | Current Rating (Amps) | Size / Dimension [diameter] | Size / Dimension [diameter] | Inductance Frequency - Test | Package / Case | Tolerance | Shielding | Inductance | DC Resistance (DCR) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Panasonic Industrial Automation Sales | Drum Core Wirewound | 25.1 mm | 0.988 " | Through Hole | Ferrite | 2.8 A | 0.748 in | 19 mm | 10 kHz | Radial Vertical Cylinder | 10 % | Shielded | ||
Panasonic Industrial Automation Sales | Drum Core Wirewound | 25.1 mm | 0.988 " | Through Hole | Ferrite | 5 A | 0.748 in | 19 mm | 10 kHz | Radial Vertical Cylinder | 10 % | Shielded | 22 µH | 22 mOhm |
 Panasonic Industrial Automation Sales | Drum Core Wirewound | 27 mm | 1.063 in | Through Hole | Ferrite | 3 A | 0.787 in | 20 mm | 10 kHz | Radial Vertical Cylinder (Open) | 10 % | Unshielded | 65 mOhm | |
Panasonic Industrial Automation Sales | Drum Core Wirewound | 27 mm | 1.063 in | Through Hole | Ferrite | 6.5 A | 0.787 in | 20 mm | 10 kHz | Radial Vertical Cylinder (Open) | 20 % | Unshielded | 10 µH | 17 mOhm |
Panasonic Industrial Automation Sales | Drum Core Wirewound | 27 mm | 1.063 in | Through Hole | Ferrite | 0.55 A | 0.787 in | 20 mm | 10 kHz | Radial Vertical Cylinder (Open) | 10 % | Unshielded | 4.7 mH | |
Panasonic Industrial Automation Sales | Drum Core Wirewound | 25.1 mm | 0.988 " | Through Hole | Ferrite | 2 A | 0.748 in | 19 mm | 10 kHz | Radial Vertical Cylinder | 10 % | Shielded | 270 µH | 83 mOhm |
Panasonic Industrial Automation Sales | Drum Core Wirewound | 27 mm | 1.063 in | Through Hole | Ferrite | 7.8 A | 0.787 in | 20 mm | 10 kHz | Radial Vertical Cylinder (Open) | 20 % | Unshielded | 4.7 ÁH | 12 mOhm |
Panasonic Industrial Automation Sales | Drum Core Wirewound | 27 mm | 1.063 in | Through Hole | Ferrite | 7.4 A | 0.787 in | 20 mm | 10 kHz | Radial Vertical Cylinder (Open) | 20 % | Unshielded | 5.6 µH | 13 mOhm |
Panasonic Industrial Automation Sales | Drum Core Wirewound | 25 mm | 0.984 " | Through Hole | Ferrite | 1.9 A | 0.748 in | 19 mm | 10 kHz | Radial Vertical Cylinder (Open) | 10 % | Shielded | 330 µH | 110 mOhm |
Panasonic Industrial Automation Sales | Drum Core Wirewound | 25.1 mm | 0.988 " | Through Hole | Ferrite | 6.2 A | 0.748 in | 19 mm | 10 kHz | Radial Vertical Cylinder | 20 % | Shielded | 8.2 µH | 13 mOhm |
