AOC24 Series

Catalog

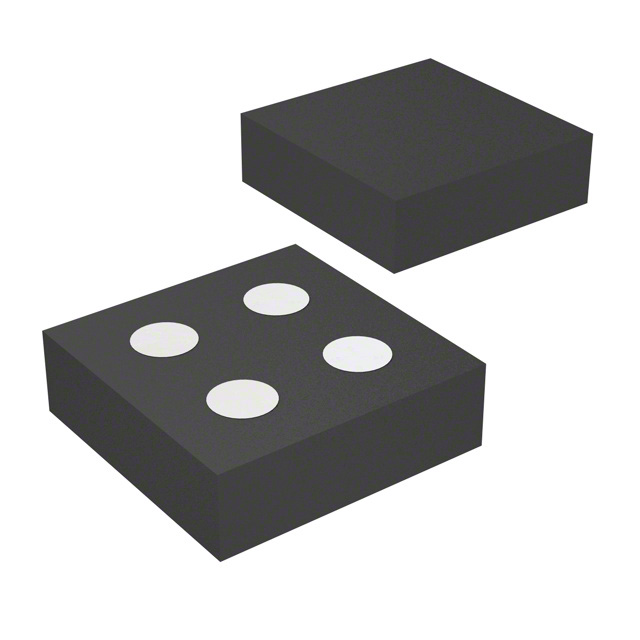

MOSFET P-CH 30V 3A 4ALPHADFN

Part	Gate Charge (Qg) (Max) @ Vgs [Max]	Drive Voltage (Max Rds On, Min Rds On)	Technology	Operating Temperature [Max]	Operating Temperature [Min]	Drain to Source Voltage (Vdss)	Input Capacitance (Ciss) (Max) @ Vds	FET Type	Current - Continuous Drain (Id) @ 25°C	Power Dissipation (Max) [Max]	Vgs (Max)	Vgs(th) (Max) @ Id	Mounting Type	Package / Case	Supplier Device Package	Rds On (Max) @ Id, Vgs	Gate Charge (Qg) (Max) @ Vgs	Vgs (Max) [Min]	Vgs (Max) [Max]	Input Capacitance (Ciss) (Max) @ Vds [Max]	Rds On (Max) @ Id, Vgs [Max]	Supplier Device Package [y]	Supplier Device Package [x]
Alpha & Omega Semiconductor Inc. AOC2401	40 nC	2.5 V 10 V	MOSFET (Metal Oxide)	150 °C	-55 °C	30 V	1327 pF	P-Channel	3 A	550 mW	12 V	1.3 V	Surface Mount	4-SMD No Lead	4-AlphaDFN (1.57x1.57)	41 mOhm
Alpha & Omega Semiconductor Inc. AOC2413		1.2 V 2.5 V	MOSFET (Metal Oxide)	150 °C	-55 °C	8 V	1935 pF	P-Channel	3.5 A	550 mW		650 mV	Surface Mount	4-SMD No Lead	4-AlphaDFN (1.57x1.57)	28 mOhm	27 nC	-5 V	5 V
Alpha & Omega Semiconductor Inc. AOC2415		1.5 V 4.5 V	MOSFET (Metal Oxide)	150 °C	-55 °C	20 V		P-Channel	3.5 A	550 mW		1 V	Surface Mount	4-SMD No Lead	4-AlphaDFN (1.57x1.57)	33 mOhm	28 nC		8 V	1685 pF
Alpha & Omega Semiconductor Inc. AOC2423		2.5 V 10 V	MOSFET (Metal Oxide)	150 °C	-55 °C	20 V		P-Channel	2 A	600 mW	12 V	1.2 V	Surface Mount	4-SMD No Lead	4-AlphaDFN		10 nC			470 pF	80 mOhm	0.97	0.97
Alpha & Omega Semiconductor Inc. AOC2422	15 nC	1.2 V 2.5 V	MOSFET (Metal Oxide)	150 °C	-55 °C	8 V	870 pF	N-Channel	3.5 A	600 mW		800 mV	Surface Mount	4-SMD No Lead	4-AlphaDFN	33 mOhm		-5 V	5 V			0.97	0.97
