R14342 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K
TNC / SWITCH EDGE CARD SMT RIGHT
| Part | Body Material | Center Contact Plating | Operating Temperature [Max] | Operating Temperature [Min] | Insertion Loss | Voltage Rating | Body Finish | Dielectric Material | Housing Color | Connector Type | Fastening Type | Shield Termination | Impedance | Connector Style | Number of Ports | Center Contact Material | Frequency - Max [Max] | Contact Termination | Mounting Type | Mating Cycles | Mounting Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

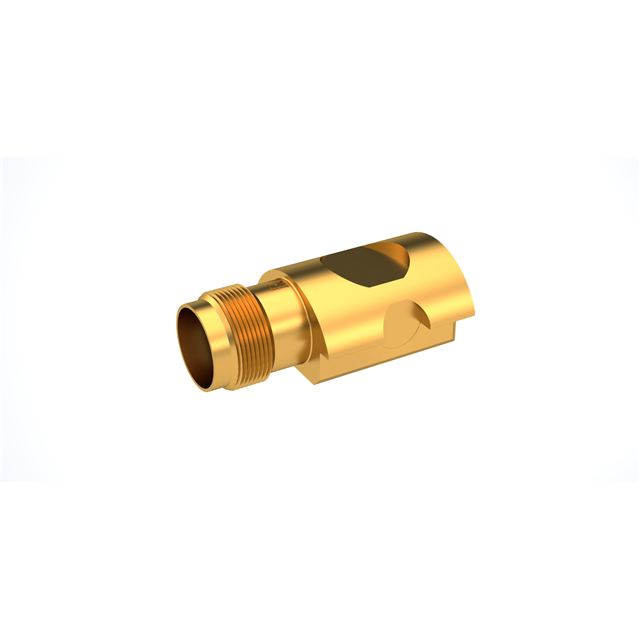

 Radiall USA, Inc. | Brass | Gold | 85 °C | -40 C | 0.18 dB | 300 VDC | Gold | Polyetheretherketone (PEEK) | Gold | Female Socket Jack | Threaded | Solder | 50 Ohms | TNC | 1 | Beryllium Copper | 3 GHz | Solder | Board Edge Cutout Surface Mount | ||

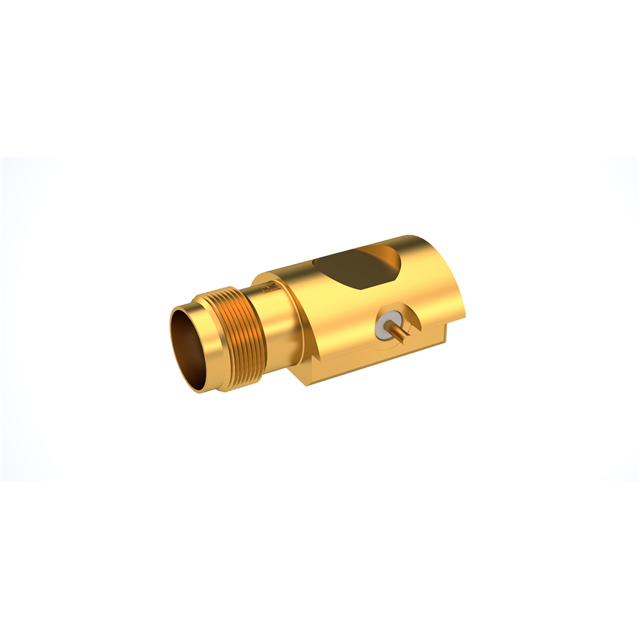

 Radiall USA, Inc. | Brass | Gold | 85 °C | -40 C | 0.18 dB | 300 VDC | Gold | Polyetheretherketone (PEEK) | Gold | Female Socket Jack | Threaded | Solder | 50 Ohms | TNC | 1 | Beryllium Copper | 3 GHz | Solder | Board Edge Cutout Surface Mount | ||

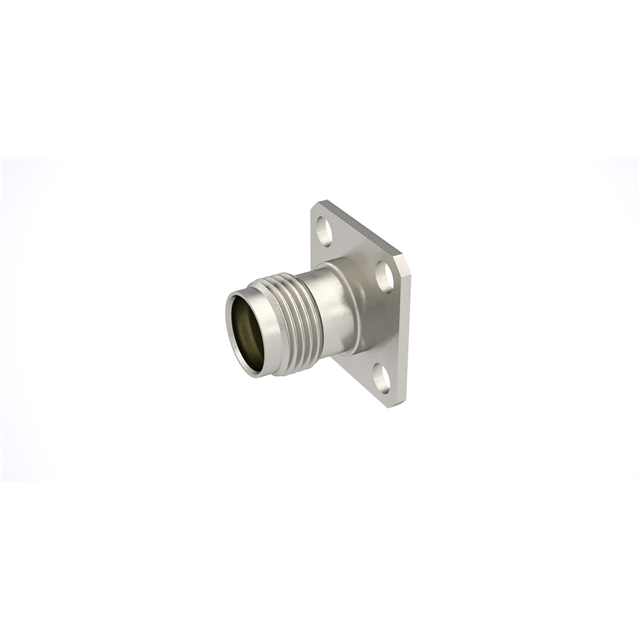

 Radiall USA, Inc. | Brass | Gold | 165 °C | -65 ░C | 0.18 dB | 500 V | Nickel | Polytetrafluoroethylene (PTFE) | Silver | Female Socket Jack | Threaded | Solder | 50 Ohms | TNC | 1 | Beryllium Copper | 11 GHz | Solder | Panel Mount Through Hole | 500 | Flange |
Radiall USA, Inc. | Brass | Gold | 85 °C | -40 C | 0.18 dB | 300 VDC | Gold | Polyetheretherketone (PEEK) | Gold | Female Socket Jack | Threaded | Solder | 50 Ohms | TNC | 1 | Beryllium Copper | 3 GHz | Solder | Board Edge Cutout Surface Mount | ||
 Radiall USA, Inc. | Brass | Gold | 85 °C | -40 C | 0.18 dB | 300 VDC | Gold | Polyetheretherketone (PEEK) | Gold | Female Socket Jack | Threaded | Solder | 50 Ohms | TNC | 1 | Beryllium Copper | 3 GHz | Solder | Board Edge Cutout Surface Mount |
