LMT84-Q1 Series

1.5V-Capable, 10 uA Analog Output Temperature Sensor in SC70 and TO-92

Catalog

1.5V-Capable, 10 uA Analog Output Temperature Sensor in SC70 and TO-92

Part	Resolution	Sensing Temperature - Local [Max]	Sensing Temperature - Local [Min]	Test Condition [Max]	Test Condition [Min]	Qualification	Grade	Sensor Type	Output Type	Supplier Device Package	Voltage - Supply [Max]	Voltage - Supply [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Accuracy - Highest (Lowest)	Package / Case	Mounting Type	Supplied Contents	Sensing Range [Max]	Sensing Range [Min]	Utilized IC / Part	Interface
Texas Instruments LMT84LPGM	5.5 mV/°C	150 °C	-50 °C	150 °C	0 °C	AEC-Q100	Automotive	Analog Local	Analog Voltage	TO-92-3	5.5 V	1.5 V	150 °C	-50 °C	2.7 °C	TO-226-3 TO-92-3 Short Body	Through Hole

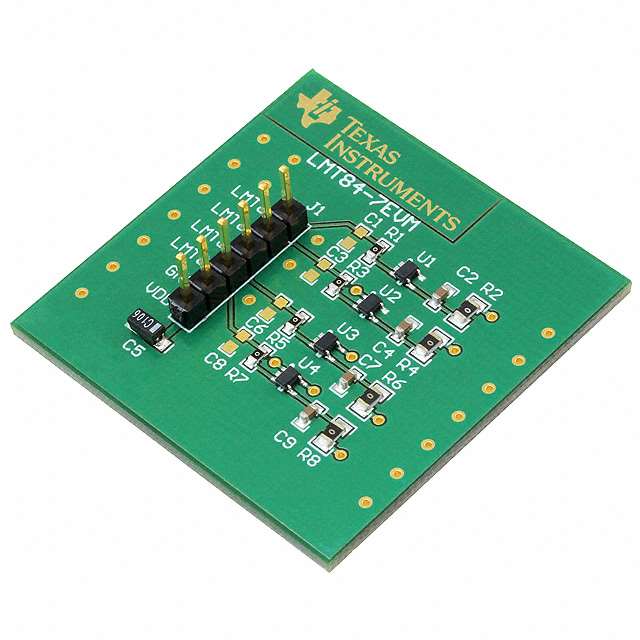

Texas Instruments LMT84-7EVM								Temperature										Board(s)	150 °C	-50 °C	LMT84 LMT85 LMT86 LMT87	Analog
Texas Instruments LMT84LPG	5.5 mV/°C	150 °C	-50 °C	150 °C	0 °C	AEC-Q100	Automotive	Analog Local	Analog Voltage	TO-92-3	5.5 V	1.5 V	150 °C	-50 °C	2.7 °C	TO-226-3 TO-92-3 Short Body	Through Hole
Texas Instruments LMT84DCKT	5.5 mV/°C	150 °C	-50 °C	150 °C	0 °C			Analog Local	Analog Voltage	SC-70-5	5.5 V	1.5 V	150 °C	-50 °C	2.7 °C	5-TSSOP SC-70-5 SOT-353	Surface Mount
Texas Instruments LMT84LP	5.5 mV/°C	150 °C	-50 °C	150 °C	-50 °C	AEC-Q100	Automotive	Analog Local	Analog Voltage	TO-92-3	5.5 V	1.5 V	150 °C	-50 °C	2.7 °C	TO-226-3 TO-92-3	Through Hole
Texas Instruments LMT84QDCKRQ1	5.5 mV/°C	150 °C	-50 °C	150 °C	-50 °C	AEC-Q100	Automotive	Analog Local	Analog Voltage	SC-70	5.5 V	1.5 V	150 °C	-50 °C	2.7 °C	6-TSSOP SC-88 SOT-363	Surface Mount
Texas Instruments LMT84LPM	5.5 mV/°C	150 °C	-50 °C	150 °C	-50 °C	AEC-Q100	Automotive	Analog Local	Analog Voltage	TO-92-3	5.5 V	1.5 V	150 °C	-50 °C	2.7 °C	TO-226-3 TO-92-3	Through Hole

Catalog

1.5V-Capable, 10 uA Analog Output Temperature Sensor in SC70 and TO-92

Key Features

• LMT84-Q1 is AEC-Q100 Qualified for Automotive Applications:Device Temperature Grade 0: –40°C to +150°CDevice HBM ESD Classification Level 2Device CDM ESD Classification Level C6Very Accurate: ±0.4°C TypicalLow 1.5-V OperationAverage Sensor Gain of -5.5 mV/°CLow 5.4-µA Quiescent CurrentWide Temperature Range: –50°C to 150°COutput is Short-Circuit ProtectedPush-Pull Output With ±50-µA Drive CapabilityFootprint Compatible With the Industry-Standard LM20/19 and LM35 Temperature SensorsCost-Effective Alternative to ThermistorsLMT84-Q1 is AEC-Q100 Qualified for Automotive Applications:Device Temperature Grade 0: –40°C to +150°CDevice HBM ESD Classification Level 2Device CDM ESD Classification Level C6Very Accurate: ±0.4°C TypicalLow 1.5-V OperationAverage Sensor Gain of -5.5 mV/°CLow 5.4-µA Quiescent CurrentWide Temperature Range: –50°C to 150°COutput is Short-Circuit ProtectedPush-Pull Output With ±50-µA Drive CapabilityFootprint Compatible With the Industry-Standard LM20/19 and LM35 Temperature SensorsCost-Effective Alternative to Thermistors

Description

The LMT84-Q1 is a precision CMOS temperature sensor with ±0.4°C typical accuracy (±2.7°C maximum) and a linear analog output voltage that is inversely proportional to temperature. The 1.5-V supply voltage operation, 5.4-µA quiescent current, and 0.7-ms power-on time enable effective power-cycling architectures to minimize power consumption for battery-powered applications such as drones and sensor nodes.The LMT84-Q1 device is AEC-Q100 Grade 0 qualified and maintains ±2.7°C maximum accuracy over the full operating temperature range without calibration; this makes the LMT84-Q1 suitable for automotive applications such as infotainment, cluster, and powertrain systems. The accuracy over the wide operating range and other features make the LMT84-Q1 an excellent alternative to thermistors. For devices with different average sensor gains and comparable accuracy, refer toComparable Alternative Devicesfor alternative devices in the LMT8x family. The LMT84-Q1 is a precision CMOS temperature sensor with ±0.4°C typical accuracy (±2.7°C maximum) and a linear analog output voltage that is inversely proportional to temperature. The 1.5-V supply voltage operation, 5.4-µA quiescent current, and 0.7-ms power-on time enable effective power-cycling architectures to minimize power consumption for battery-powered applications such as drones and sensor nodes.The LMT84-Q1 device is AEC-Q100 Grade 0 qualified and maintains ±2.7°C maximum accuracy over the full operating temperature range without calibration; this makes the LMT84-Q1 suitable for automotive applications such as infotainment, cluster, and powertrain systems. The accuracy over the wide operating range and other features make the LMT84-Q1 an excellent alternative to thermistors. For devices with different average sensor gains and comparable accuracy, refer toComparable Alternative Devicesfor alternative devices in the LMT8x family.
