HE-006 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

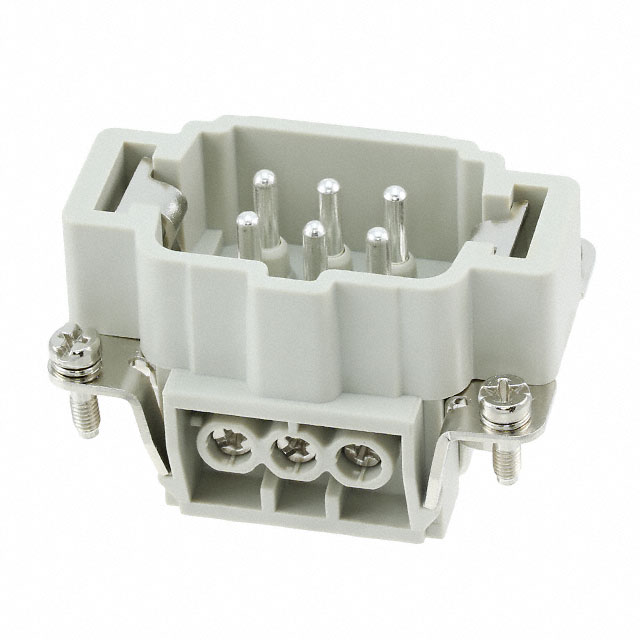

INSERT MALE 6POS CRIMP
| Part | Housing Material | Material Flammability Rating | Termination Style | Voltage Rating | Gender | Number of Positions | Current Rating (Amps) | Connector Type | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|

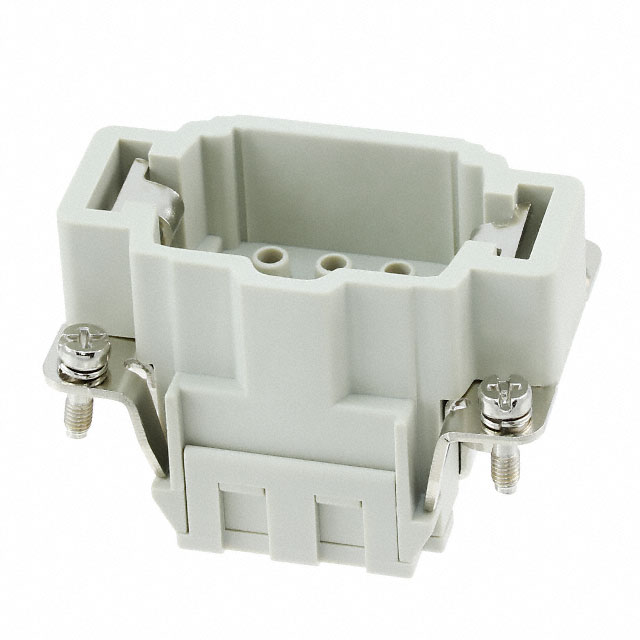

 TE Connectivity AMP Connectors | Polycarbonate (PC) | UL94 V-0 | Crimp | 500 V | Male | 6 | 16 A | Insert without Contacts | 125 °C | -40 C |

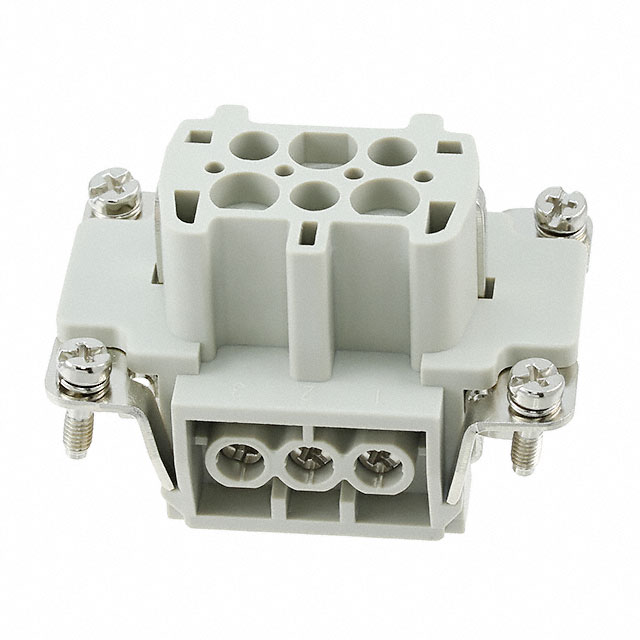

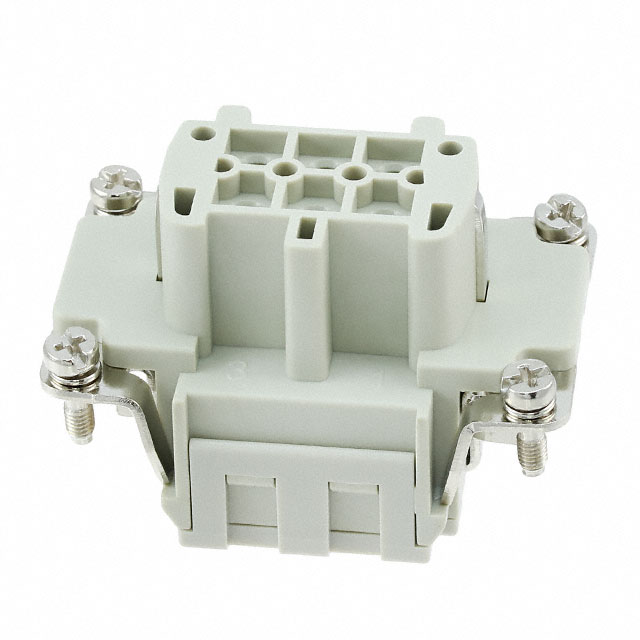

 TE Connectivity AMP Connectors | Polycarbonate (PC) | UL94 V-0 | Crimp | 500 V | Female | 6 | 16 A | Insert without Contacts | 125 °C | -40 C |
 TE Connectivity AMP Connectors | Polycarbonate (PC) | UL94 V-0 | Screw | 500 V | Female | 6 | 16 A | Insert | 125 °C | -40 C |
 TE Connectivity AMP Connectors | Polycarbonate (PC) | UL94 V-0 | Screw | 500 V | Male | 6 | 16 A | Insert | 125 °C | -40 C |
