717-005 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE SGL FMALE 5POS 0.156

Part	Termination Rows	Material - Insulation	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Number of Rows	Color	Termination	Number of Positions/Bay/Row	Card Type	Read Out	Gender	Mounting Type	Contact Finish Thickness	Contact Finish Thickness	Number of Positions	Pitch	Pitch	Card Thickness [Max]	Card Thickness [Min]	Contact Type	Contact Finish

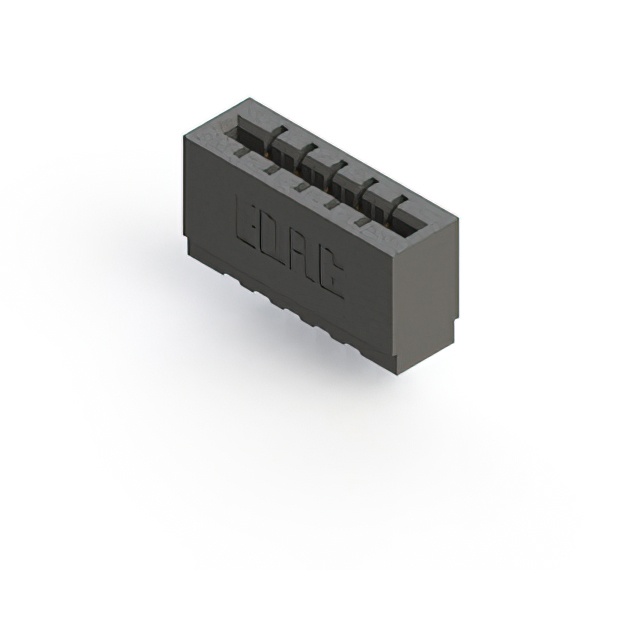

EDAC Inc. 717-005-541-101	1	Polyester Thermoplastic	-40 C	105 ░C	Copper Alloy	1	Black	Press-Fit Wire Wrap	5	Non Specified - Single Edge	Single	Female	Through Hole	30 Áin	0.76 Ám	5	3.96 mm	0.156 in	0.07 in 1.78 mm	0.054 in 1.37 mm	Cantilever	Gold
EDAC Inc. 717-005-540-101	1	Polyester Thermoplastic	-40 C	105 ░C	Copper Alloy	1	Black	Press-Fit Wire Wrap	5	Non Specified - Single Edge	Single	Female	Through Hole	30 Áin	0.76 Ám	5	3.96 mm	0.156 in	0.07 in 1.78 mm	0.054 in 1.37 mm	Cantilever	Gold

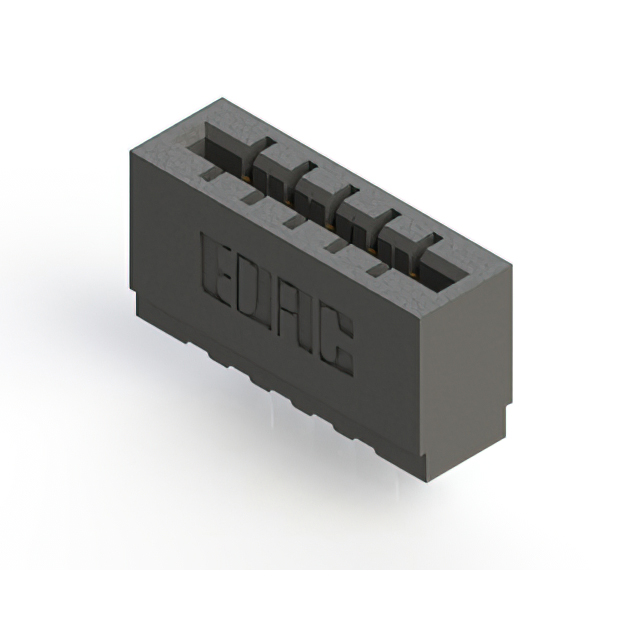

EDAC Inc. 717-005-520-101	1	Polyester Thermoplastic	-40 C	105 ░C	Copper Alloy	1	Black	Press-Fit	5	Non Specified - Single Edge	Single	Female	Through Hole	30 Áin	0.76 Ám	5	3.96 mm	0.156 in	0.07 in 1.78 mm	0.054 in 1.37 mm	Cantilever	Gold
EDAC Inc. 717-005-525-101	1	Polyester Thermoplastic	-40 C	105 ░C	Copper Alloy	1	Black	Press-Fit	5	Non Specified - Single Edge	Single	Female	Through Hole	30 Áin	0.76 Ám	5	3.96 mm	0.156 in	0.07 in 1.78 mm	0.054 in 1.37 mm	Cantilever	Gold

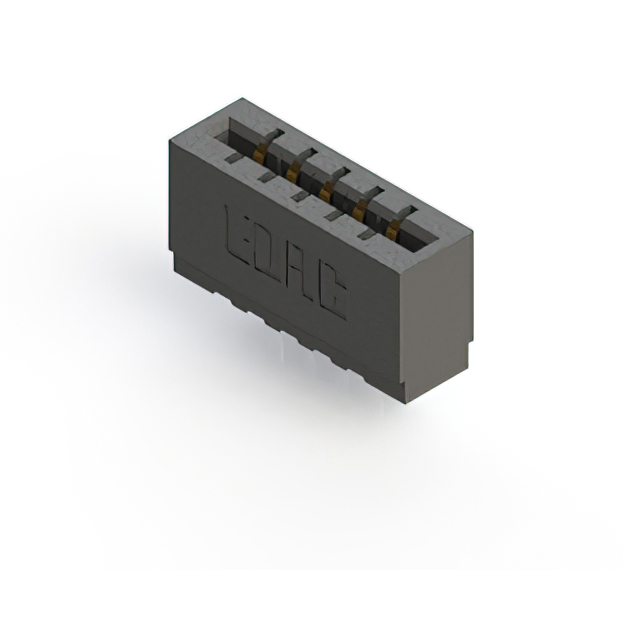

EDAC Inc. 717-005-545-101	1	Polyester Thermoplastic	-40 C	105 ░C	Copper Alloy	1	Black	Press-Fit Wire Wrap	5	Non Specified - Single Edge	Single	Female	Through Hole	30 Áin	0.76 Ám	5	3.96 mm	0.156 in	0.07 in 1.78 mm	0.054 in 1.37 mm	Cantilever	Gold

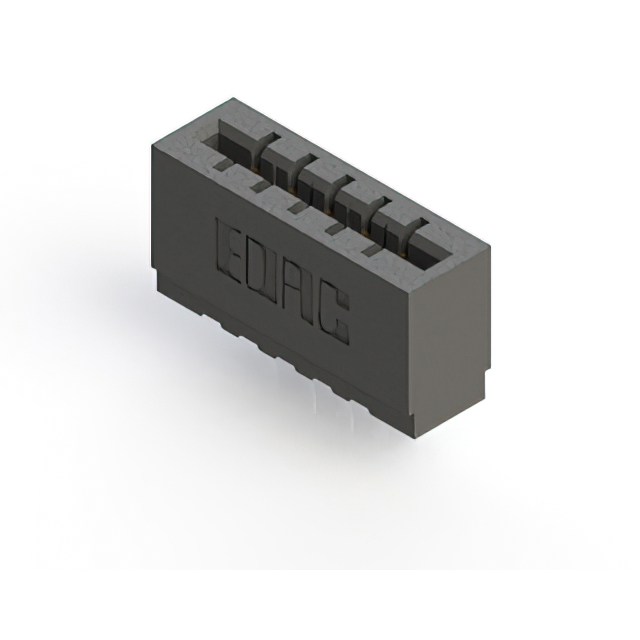

EDAC Inc. 717-005-522-101	1	Polyester Thermoplastic	-40 C	105 ░C	Copper Alloy	1	Black	Press-Fit	5	Non Specified - Single Edge	Single	Female	Through Hole	30 Áin	0.76 Ám	5	3.96 mm	0.156 in	0.07 in 1.78 mm	0.054 in 1.37 mm	Cantilever	Gold
