31880 Series

Catalog

RING TONGUE TERMINAL, M2.5, #4, 16 AWG, 1.65 MM², PIDG SERIES, RED

Part	Thickness	Thickness	Mounting Type	Contact Finish	Length - Overall [x]	Length - Overall	Insulation Diameter [Max] [diameter]	Insulation Diameter [Min] [diameter]	Insulation Diameter [Max] [diameter]	Insulation Diameter [Min] [diameter]	Wire Gauge [Max]	Wire Gauge [Min]	Terminal Type	Material - Insulation	Contact Material	Termination	Stud/Tab Size	Width - Outer Edges [x]	Width - Outer Edges [x]	Insulation	Features	Color
TE Connectivity Raychem Cable Protection 2-31880-1	0.031 in	0.79 mm	Free Hanging (In-Line)	Tin	0.672 "	17.07 mm	0.14 in	0.105 in	3.56 mm	2.67 mm	22 AWG	16 AWG	Circular	Nylon Polyamide (PA)	Copper	Crimp	4 Stud	5.54 mm	0.218 in	Insulated	Serrated Termination	Red

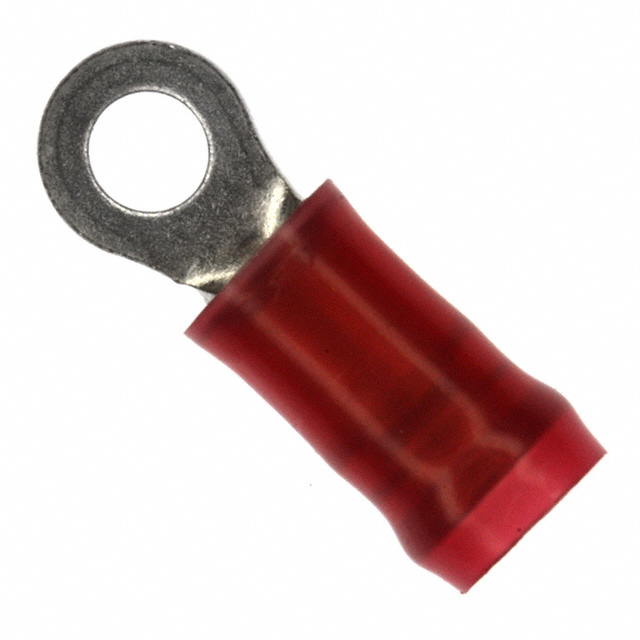

TE Connectivity Raychem Cable Protection 8-31880-1	0.031 in	0.79 mm	Free Hanging (In-Line)	Tin	0.672 "	17.07 mm	0.14 in	0.105 in	3.56 mm	2.67 mm	22 AWG	16 AWG	Circular	Nylon Polyamide (PA)	Copper	Crimp	4 Stud	5.54 mm	0.218 in	Insulated	Serrated Termination	Red
