RUMC32 Series
Manufacturer: SCHNEIDER ELECTRIC
Beta
⌘K

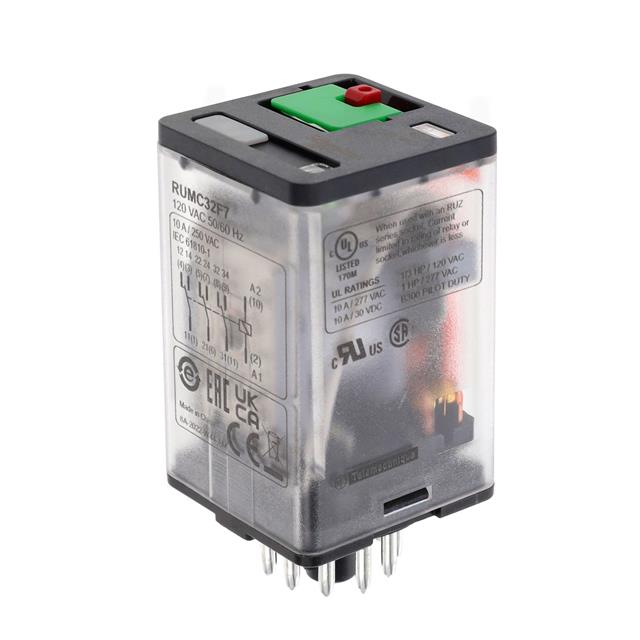

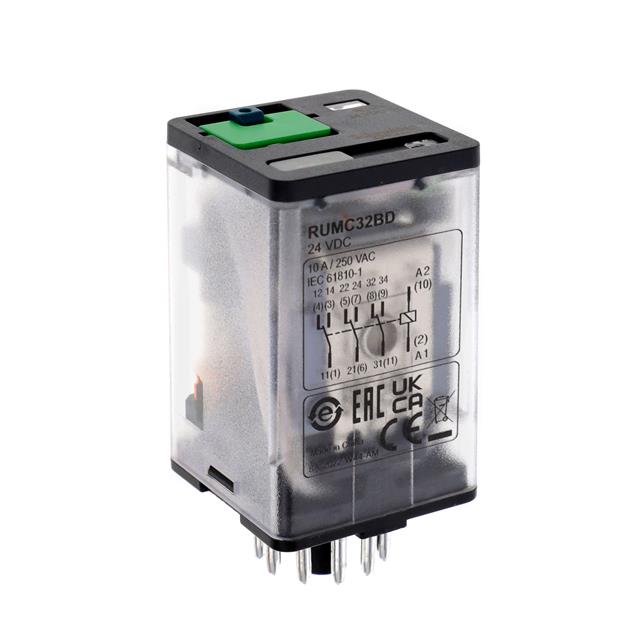

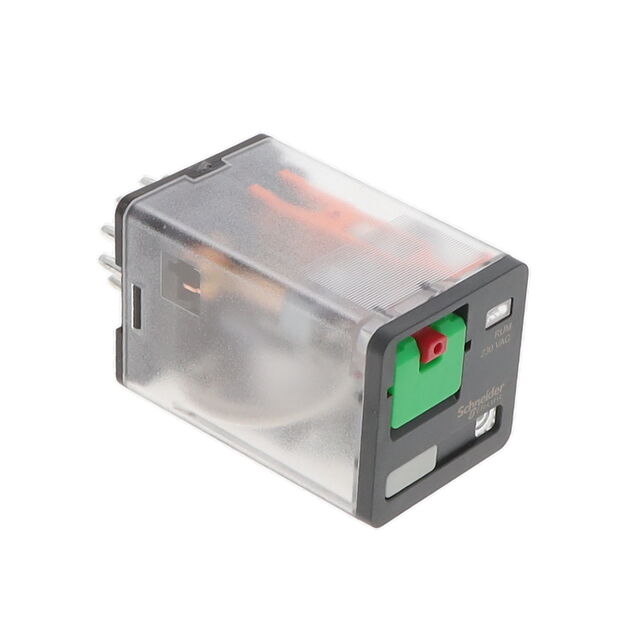

RELAY 3CO CYL PIN 10A@250V 230VA
| Part | Coil Resistance | Approval Agency | Features | Coil Type | Switching Voltage [Max] | Termination Style | Contact Material | Relay Type | Contact Form | Contact Rating (Current) | Coil Current | Coil Voltage | Load - Max Switching | Must Release Voltage | Release Time | Operate Time | Must Operate Voltage | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SCHNEIDER ELECTRIC | 6.8 kOhms | CSA EAC UL | Lighted Indicator Test Button | Non Latching | 28 VDC 250 VAC | Plug In | Silver Nickel (AgNi) | General Purpose | 3PDT (3 Form C) | 10 A | 33.8 mA | 230 VAC | 280 W 2500 VA | 34.5 VAC | 20 ms | 20 ms | 184 VAC | 55 °C | -40 C | Socketable |
 SCHNEIDER ELECTRIC | 7.3 kOhms | CSA EAC UL | Lighted Indicator Test Button | Non Latching | 28 VDC 250 VAC | Plug In | Silver Nickel (AgNi) | General Purpose | 3PDT (3 Form C) | 10 A | 15.1 mA | 110 VDC | 280 W 2500 VA | 11 VDC | 20 ms | 20 ms | 88 VDC | 55 °C | -40 C | Socketable |
SCHNEIDER ELECTRIC | 7.3 kOhms | CSA EAC UL | Lighted Indicator Test Button | Non Latching | 28 VDC 250 VAC | Plug In | Silver Nickel (AgNi) | General Purpose | 3PDT (3 Form C) | 10 A | 17.1 mA | 125 VDC | 280 W 2500 VA | 12.5 VDC | 20 ms | 20 ms | 100 VDC | 55 °C | -40 C | Socketable |
SCHNEIDER ELECTRIC | CSA EAC UL | Lighted Indicator Test Button | Non Latching | 28 VDC 250 VAC | Plug In | Silver Nickel (AgNi) | General Purpose | 3PDT (3 Form C) | 10 A | 26.7 mA | 48 VDC | 280 W 2500 VA | 4.8 VDC | 20 ms | 20 ms | 38.4 VDC | 55 °C | -40 C | Socketable | |
 SCHNEIDER ELECTRIC | 470 Ohms | CSA EAC UL | Lighted Indicator Test Button | Non Latching | 28 VDC 250 VAC | Plug In | Silver Nickel (AgNi) | General Purpose | 3PDT (3 Form C) | 10 A | 51.1 mA | 24 VDC | 280 W 2500 VA | 2.4 VDC | 20 ms | 20 ms | 19.2 VDC | 55 °C | -40 C | Socketable |
 SCHNEIDER ELECTRIC | 120 Ohms | CSA EAC UL | Lighted Indicator Test Button | Non Latching | 28 VDC 250 VAC | Plug In | Silver Nickel (AgNi) | General Purpose | 3PDT (3 Form C) | 10 A | 0.1 A | 12 VDC | 280 W 2500 VA | 1.2 VDC | 20 ms | 20 ms | 9.6 VDC | 55 °C | -40 C | Chassis Mount |
 SCHNEIDER ELECTRIC | 1.7 kOhms | CSA EAC UL | Lighted Indicator Test Button | Non Latching | 28 VDC 250 VAC | Plug In | Silver Nickel (AgNi) | General Purpose | 3PDT (3 Form C) | 10 A | 70.6 mA | 120 VAC | 280 W 2500 VA | 18 VAC | 20 ms | 20 ms | 96 VAC | 55 °C | -40 C | Socketable |
 SCHNEIDER ELECTRIC | 72 Ohms | CSA EAC UL | Lighted Indicator Test Button | Non Latching | 28 VDC 250 VAC | Plug In | Silver Nickel (AgNi) | General Purpose | 3PDT (3 Form C) | 10 A | 333.3 mA | 24 VAC | 280 W 2500 VA | 3.6 VAC | 20 ms | 20 ms | 19.2 VAC | 55 °C | -40 C | Socketable |
