423-83 Series

Manufacturer: Preci-Dip

Catalog

CONN SOCKET 62POS 0.1 GOLD PCB

Part	Contact Shape	Insulation Material	Contact Material	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Finish - Mating	Material Flammability Rating	Insulation Color	Fastening Type	Connector Type	Contact Finish - Post	Insulation Height	Insulation Height	Number of Positions	Contact Type	Contact Length - Post	Contact Length - Post	Operating Temperature [Min]	Operating Temperature [Max]	Pitch - Mating	Pitch - Mating	Number of Positions Loaded	Contact Finish Thickness - Mating [custom]	Contact Finish Thickness - Mating [custom]	Termination	Current Rating (Amps)	Mounting Type	Number of Rows [custom]
Preci-Dip 423-83-262-41-001101	Circular	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Beryllium Copper	0.1 in	2.54 mm	Gold	UL94 V-0	Black	Push-Pull	Socket	Tin	4.9 mm	0.193 "	62	Female Socket	0.51 in	12.95 mm	-55 C	125 °C	0.1 "	2.54 mm	All	29.5 µin	0.75 µm	Wire Wrap	3 A	Through Hole	2
Preci-Dip 423-83-238-41-001101	Circular	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Beryllium Copper	0.1 in	2.54 mm	Gold	UL94 V-0	Black	Push-Pull	Socket	Tin	4.9 mm	0.193 "	38	Female Socket	0.51 in	12.95 mm	-55 C	125 °C	0.1 "	2.54 mm	All	29.5 µin	0.75 µm	Wire Wrap	3 A	Through Hole	2
Preci-Dip 423-83-212-41-001101	Circular	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Beryllium Copper	0.1 in	2.54 mm	Gold	UL94 V-0	Black	Push-Pull	Socket	Tin	4.9 mm	0.193 "	12	Female Socket	0.51 in	12.95 mm	-55 C	125 °C	0.1 "	2.54 mm	All	29.5 µin	0.75 µm	Wire Wrap	3 A	Through Hole	2
Preci-Dip 423-83-256-41-001101	Circular	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Beryllium Copper	0.1 in	2.54 mm	Gold	UL94 V-0	Black	Push-Pull	Socket	Tin	4.9 mm	0.193 "	56	Female Socket	0.51 in	12.95 mm	-55 C	125 °C	0.1 "	2.54 mm	All	29.5 µin	0.75 µm	Wire Wrap	3 A	Through Hole	2

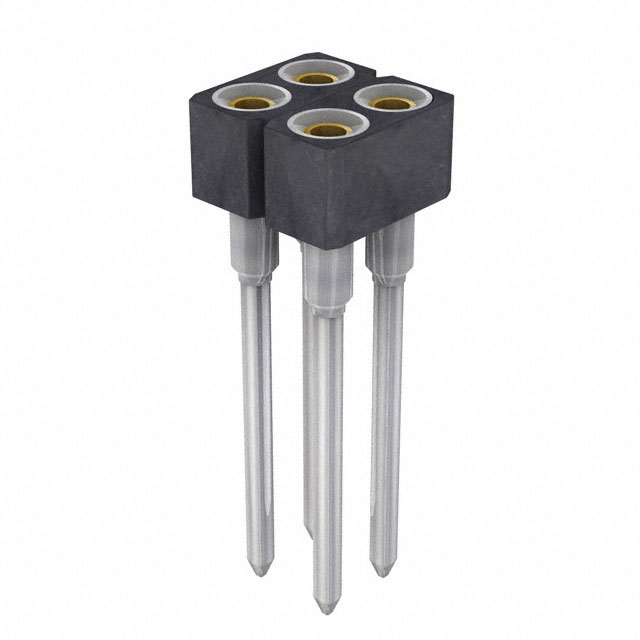

Preci-Dip 423-83-204-41-001101	Circular	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Beryllium Copper	0.1 in	2.54 mm	Gold	UL94 V-0	Black	Push-Pull	Socket	Tin	4.9 mm	0.193 "	4	Female Socket	0.51 in	12.95 mm	-55 C	125 °C	0.1 "	2.54 mm	All	29.5 µin	0.75 µm	Wire Wrap	3 A	Through Hole	2
Preci-Dip 423-83-222-41-001101	Circular	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Beryllium Copper	0.1 in	2.54 mm	Gold	UL94 V-0	Black	Push-Pull	Socket	Tin	4.9 mm	0.193 "	22	Female Socket	0.51 in	12.95 mm	-55 C	125 °C	0.1 "	2.54 mm	All	29.5 µin	0.75 µm	Wire Wrap	3 A	Through Hole	2
Preci-Dip 423-83-252-41-001101	Circular	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Beryllium Copper	0.1 in	2.54 mm	Gold	UL94 V-0	Black	Push-Pull	Socket	Tin	4.9 mm	0.193 "	52	Female Socket	0.51 in	12.95 mm	-55 C	125 °C	0.1 "	2.54 mm	All	29.5 µin	0.75 µm	Wire Wrap	3 A	Through Hole	2
Preci-Dip 423-83-242-41-001101	Circular	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Beryllium Copper	0.1 in	2.54 mm	Gold	UL94 V-0	Black	Push-Pull	Socket	Tin	4.9 mm	0.193 "	42	Female Socket	0.51 in	12.95 mm	-55 C	125 °C	0.1 "	2.54 mm	All	29.5 µin	0.75 µm	Wire Wrap	3 A	Through Hole	2

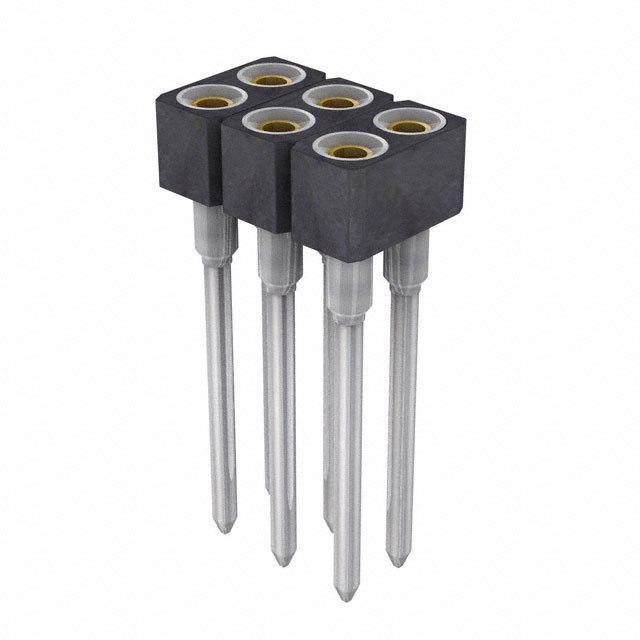

Preci-Dip 423-83-206-41-001101	Circular	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Beryllium Copper	0.1 in	2.54 mm	Gold	UL94 V-0	Black	Push-Pull	Socket	Tin	4.9 mm	0.193 "	6	Female Socket	0.51 in	12.95 mm	-55 C	125 °C	0.1 "	2.54 mm	All	29.5 µin	0.75 µm	Wire Wrap	3 A	Through Hole	2

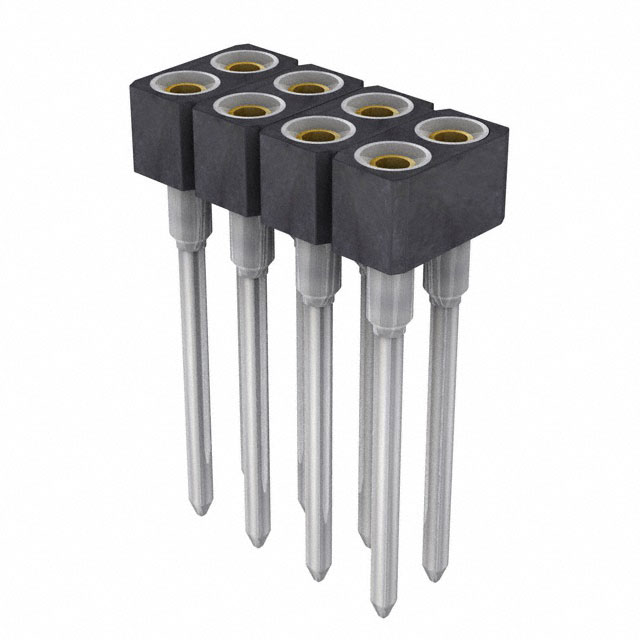

Preci-Dip 423-83-208-41-001101	Circular	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Beryllium Copper	0.1 in	2.54 mm	Gold	UL94 V-0	Black	Push-Pull	Socket	Tin	4.9 mm	0.193 "	8	Female Socket	0.51 in	12.95 mm	-55 C	125 °C	0.1 "	2.54 mm	All	29.5 µin	0.75 µm	Wire Wrap	3 A	Through Hole	2
