GB215A Series

Catalog

SWITCH PUSH SPST-NO 0.4VA 28V

Part	Electrical Life	Mechanical Life	Switch Function	Voltage Rating - DC	Features	Color - Actuator/Cap	Termination Style	Actuator Type	Actuator Marking	Voltage Rating - AC	Operating Temperature [Min]	Operating Temperature [Max]	Type	Current Rating (Amps)	Mounting Type	Circuit

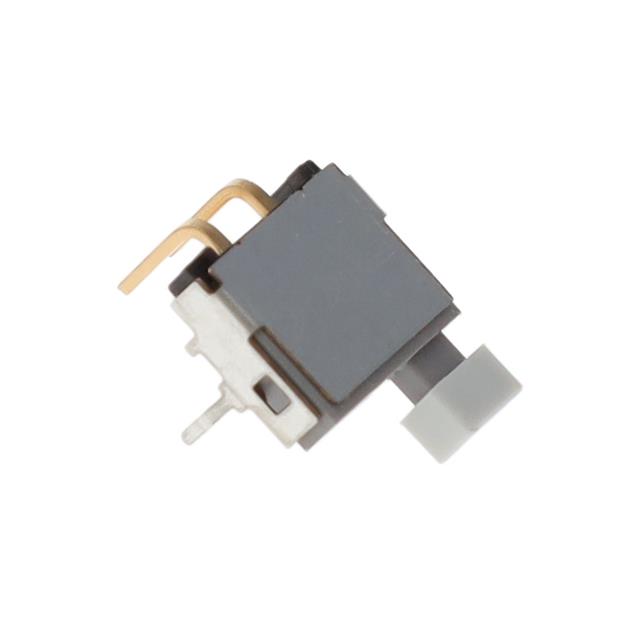

NKK Switches GB215AH-B	50000 Cycles	50000 Cycles	Off-Mom	28 V	Epoxy Sealed Terminals	White	PC Pin	Button Rectangular	No Marking	28 V	-25 °C	70 °C	Standard	0.4 VA	Right Angle Through Hole	SPST-NO
NKK Switches GB215AP-A	50000 Cycles	50000 Cycles	Off-Mom	28 V	Epoxy Sealed Terminals	Black	PC Pin	Button Rectangular	No Marking	28 V	-25 °C	70 °C	Standard	0.4 VA	Through Hole	SPST-NO

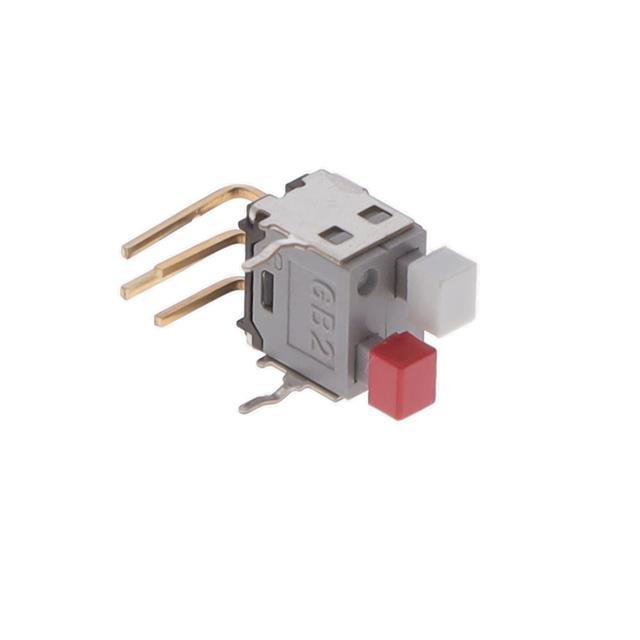

NKK Switches GB215A2H-BC	50000 Cycles	50000 Cycles	Off-Mom	28 V	Epoxy Sealed Terminals	Red White	PC Pin	Button Rectangular	No Marking	28 V	-25 °C	70 °C	Standard	0.4 VA	Right Angle Through Hole	SPST-NO x 2

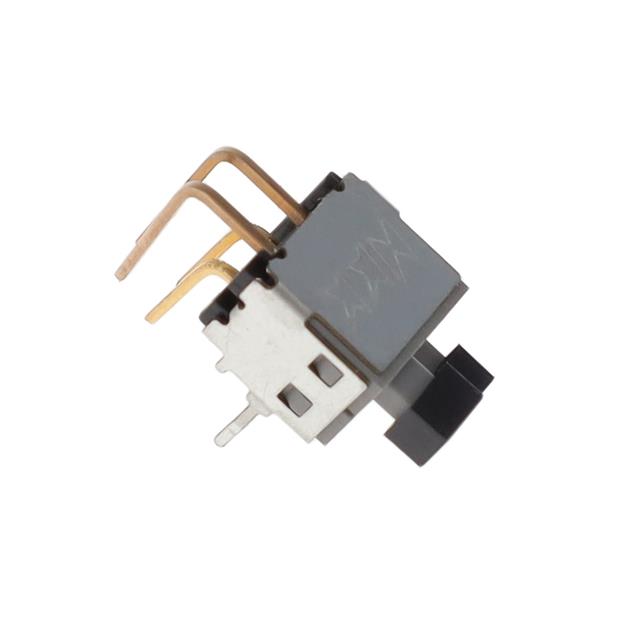

NKK Switches GB215A2H-AA	50000 Cycles	50000 Cycles	Off-Mom	28 V	Epoxy Sealed Terminals	Black	PC Pin	Button Rectangular	No Marking	28 V	-25 °C	70 °C	Standard	0.4 VA	Right Angle Through Hole	SPST-NO x 2

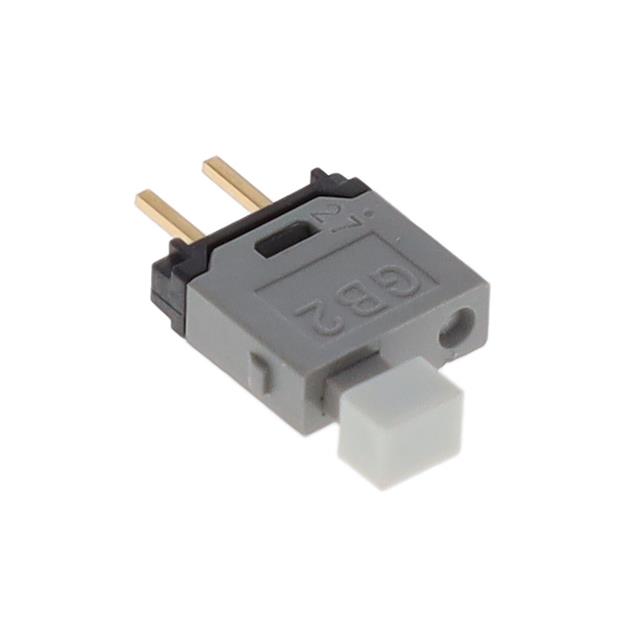

NKK Switches GB215AP-B	50000 Cycles	50000 Cycles	Off-Mom	28 V	Epoxy Sealed Terminals	White	PC Pin	Button Rectangular	No Marking	28 V	-25 °C	70 °C	Standard	0.4 VA	Through Hole	SPST-NO

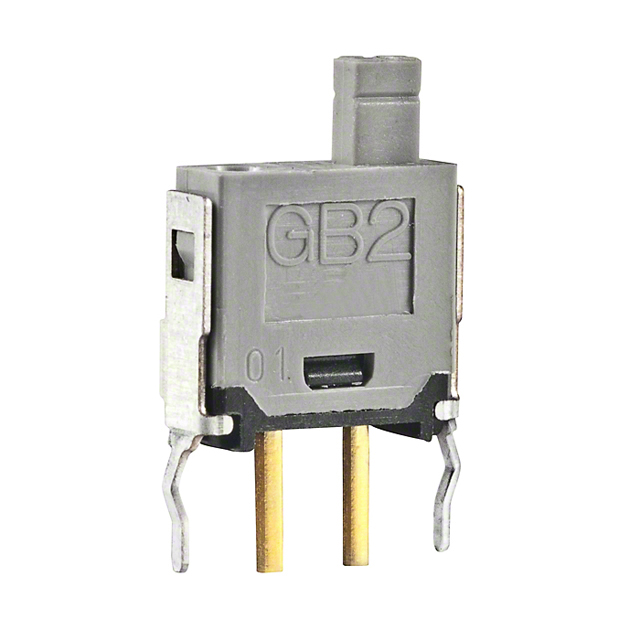

NKK Switches GB215AB	50000 Cycles	50000 Cycles	Off-Mom	28 V	Epoxy Sealed Terminals		PC Pin	Plunger for Cap	No Marking	28 V	-25 °C	70 °C	Standard	0.4 VA	Through Hole	SPST-NO

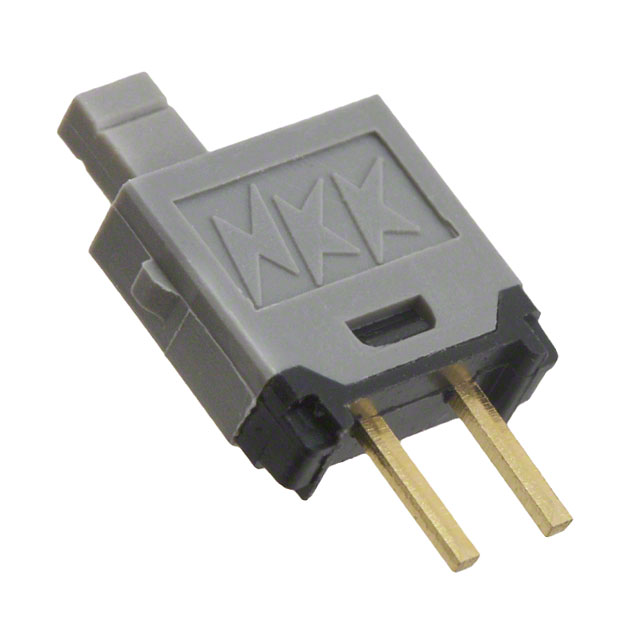

NKK Switches GB215AP	50000 Cycles	50000 Cycles	Off-Mom	28 V	Epoxy Sealed Terminals		PC Pin	Plunger for Cap	No Marking	28 V	-25 °C	70 °C	Standard	0.4 VA	Through Hole	SPST-NO

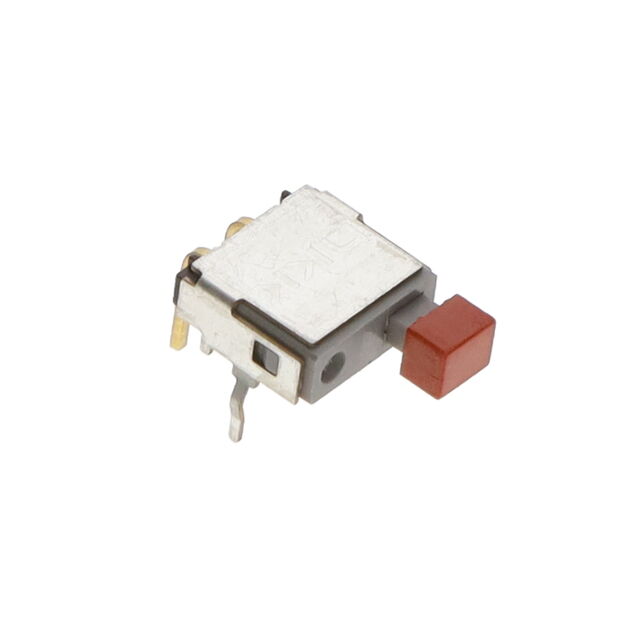

NKK Switches GB215AH-C	50000 Cycles	50000 Cycles	Off-Mom	28 V	Epoxy Sealed Terminals	Red	PC Pin	Button Rectangular	No Marking	28 V	-25 °C	70 °C	Standard	0.4 VA	Right Angle Through Hole	SPST-NO

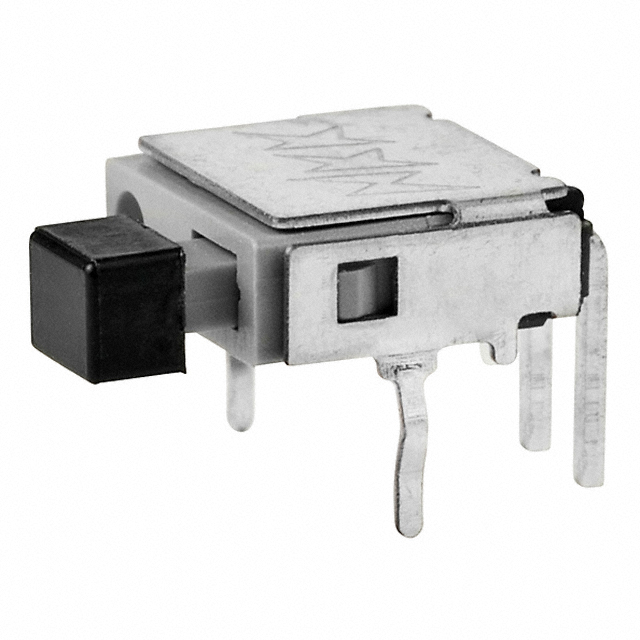

NKK Switches GB215AH-A	50000 Cycles	50000 Cycles	Off-Mom	28 V	Epoxy Sealed Terminals	Black	PC Pin	Button Rectangular	No Marking	28 V	-25 °C	70 °C	Standard	0.4 VA	Right Angle Through Hole	SPST-NO

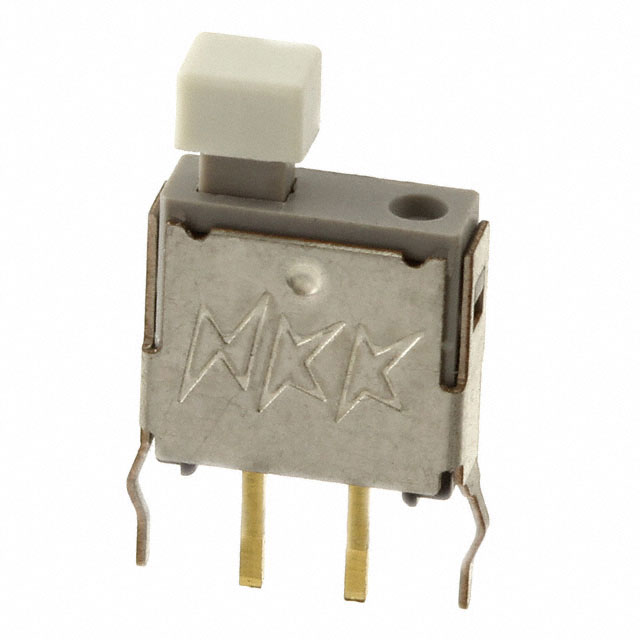

NKK Switches GB215AB-B	50000 Cycles	50000 Cycles	Off-Mom	28 V	Epoxy Sealed Terminals	White	PC Pin	Button Rectangular	No Marking	28 V	-25 °C	70 °C	Standard	0.4 VA	Through Hole	SPST-NO
