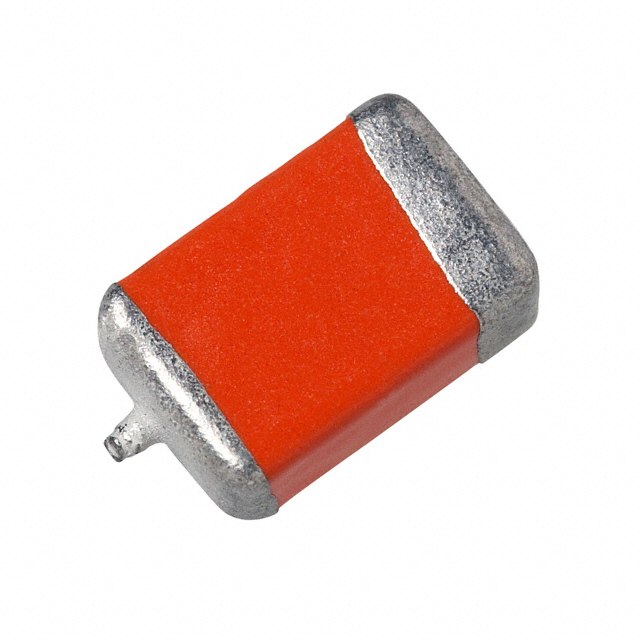

594D Series

Catalog

TANTALUM CAPACITORS - SOLID SMD 22UF 25VOLTS 10% C CASE CONFORMAL

Part	Package / Case	Height - Seated (Max)	Features	Tolerance	Type	Manufacturer Size Code	ESR (Equivalent Series Resistance)	Size / Dimension Width	Size / Dimension Length	Voltage - Rated	Capacitance	Operating Temperature (Max)	Operating Temperature (Min)	Mounting Type
Vishay Dale 594D226X9025C2T	2812 (7132 Metric)	0.11 in	General Purpose	10 %	Conformal Coated	C	200 mOhm	0.126 in	0.28 in	25 VAC	22 µF	125 °C	-55 °C	Surface Mount
Vishay Dale 594D107X0025R2T	2824 (7260 Metric)	0.148 in	General Purpose	20 %	Conformal Coated	R	90 mOhm	0.236 in	0.283 in	25 VAC	100 µF	125 °C	-55 °C	Surface Mount
Vishay Dale 594D476X0016C2W	2812 (7132 Metric)	0.11 in	General Purpose	20 %	Conformal Coated	C	110 mOhm	0.126 in	0.28 in	16 V	47 µF	125 °C	-55 °C	Surface Mount
Vishay Dale 594D226X0020C8T	2812 (7132 Metric)	0.11 in	General Purpose	20 %	Conformal Coated	C	150 mOhm	0.126 in	0.28 in	20 V	22 µF	125 °C	-55 °C	Surface Mount
Vishay Dale 594D686X9010B2T	1611 (4028 Metric)	0.087 in	General Purpose	10 %	Conformal Coated	B	350 mOhm	0.11 in	0.157 in	10 V	68 µF	125 °C	-55 °C	Surface Mount
Vishay Dale 594D226X0035D2T	2917 (7343 Metric)	0.122 in	General Purpose	20 %	Conformal Coated	D	270 mOhm	0.169 in	0.295 in	35 V	22 µF	125 °C	-55 °C	Surface Mount
Vishay Dale 594D127X96R3C8T	2812 (7132 Metric)	0.11 in	General Purpose	10 %	Conformal Coated	C	85 mOhm	0.126 in	0.28 in	6.3 V	120 µF	125 °C	-55 °C	Surface Mount
Vishay Dale 594D686X9025R2T	2824 (7260 Metric)	0.148 in	General Purpose	10 %	Conformal Coated	R	95 mOhm	0.236 in	0.283 in	25 VAC	68 µF	125 °C	-55 °C	Surface Mount
Vishay Dale 594D477X9010R2T	2824 (7260 Metric)	0.148 in	General Purpose	10 %	Conformal Coated	R	45 mOhm	0.236 in	0.283 in	10 V	470 µF	125 °C	-55 °C	Surface Mount
Vishay Dale 594D476X9010B2T	1611 (4028 Metric)	0.087 in	General Purpose	10 %	Conformal Coated	B	400 mOhm	0.11 in	0.157 in	10 V	47 µF	125 °C	-55 °C	Surface Mount
