2514-2 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K
CONN PC PIN CIRC .036DIA TINLEAD
| Part | Mounting Type | Length - Overall [x] | Length - Overall [x] | Terminal Style | Termination | Insulation | Contact Finish Thickness | Contact Finish Thickness | Length - Below Flange [x] | Length - Below Flange [x] | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Terminal Type | Contact Material | Length - Above Flange [x] | Length - Above Flange [x] | Flange Diameter | Flange Diameter [diameter] | Contact Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | Through Hole | 0.296 in | 7.52 mm | Single End | Knurled Press-Fit | Non-Insulated | 200 Áin | 5.08 Ám | 0.078 in | 1.98 mm | 0.07 in | 1.78 mm | PC Pin | Brass Alloy | 4.75 mm | 0.187 in | 3.18 mm | 0.125 in | Tin-Lead |

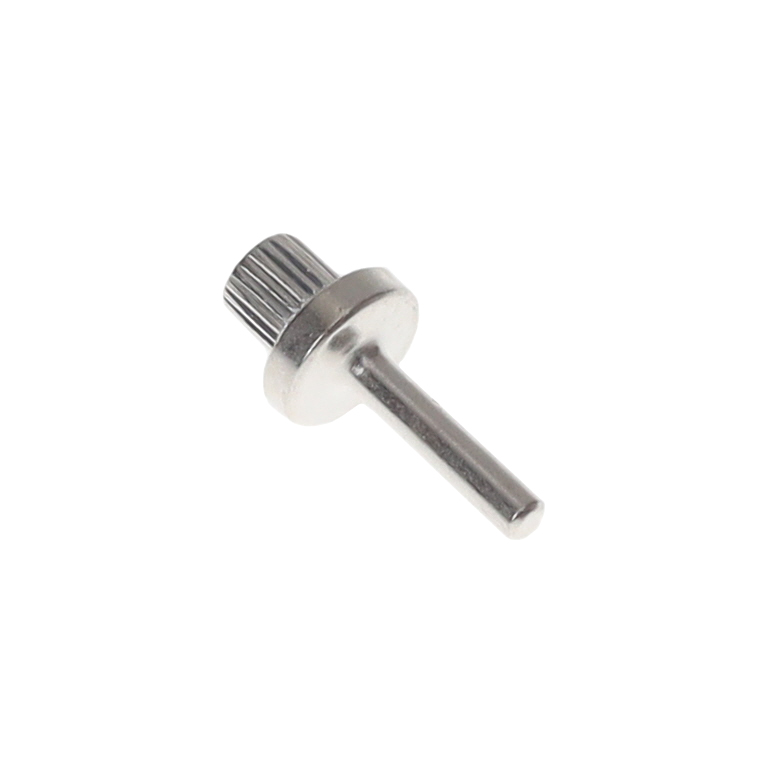

 Mill-Max Manufacturing Corp. | Through Hole | 0.296 in | 7.52 mm | Single End | Knurled Press-Fit | Non-Insulated | 300 µin | 7.62 µm | 0.078 in | 1.98 mm | 0.07 in | 1.78 mm | PC Pin | Brass Alloy | 4.75 mm | 0.187 in | 3.18 mm | 0.125 in | Silver |
