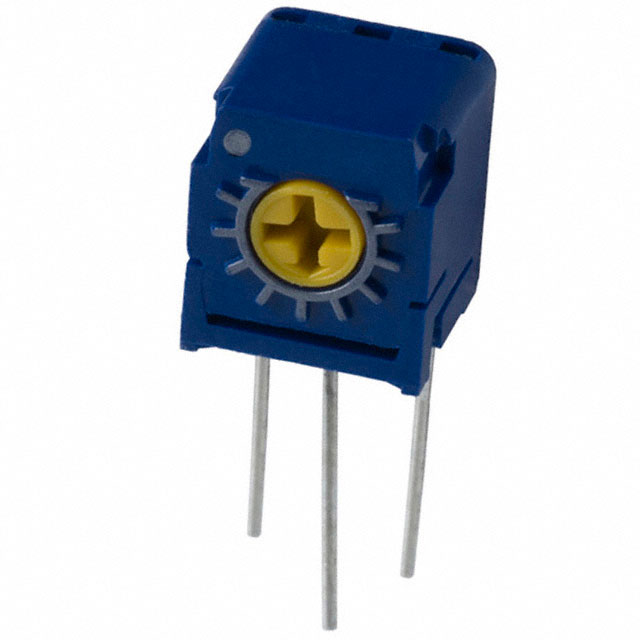

CT6ES Series

Manufacturer: Nidec Components Corporation

Catalog

TRIMMER 10 OHM 0.5W PC PIN SIDE

Part	Termination Style	Resistance	Temperature Coefficient	Mounting Type	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Power (Watts)	Power (Watts)	Adjustment Type	Tolerance	Resistive Material	Number of Turns
Nidec Components Corporation CT-6ES100	PC Pins	10 Ohms	250 ppm/°C	Through Hole	0.276 in	0.323 in	7 mm	8.2 mm	0.5 W	0.5 W	Side Adjustment	10 %	Cermet	1
Nidec Components Corporation CT-6ES503	PC Pins	50 kOhms	100 ppm/°C	Through Hole	0.276 in	0.323 in	7 mm	8.2 mm	0.5 W	0.5 W	Side Adjustment	10 %	Cermet	1
Nidec Components Corporation CT-6ES205	PC Pins	2 MOhms	100 ppm/°C	Through Hole	0.276 in	0.323 in	7 mm	8.2 mm	0.5 W	0.5 W	Side Adjustment	10 %	Cermet	1
Nidec Components Corporation CT-6ES201	PC Pins	200 Ohms	100 ppm/°C	Through Hole	0.276 in	0.323 in	7 mm	8.2 mm	0.5 W	0.5 W	Side Adjustment	10 %	Cermet	1
Nidec Components Corporation CT-6ES501	PC Pins	500 Ohms	100 ppm/°C	Through Hole	0.276 in	0.323 in	7 mm	8.2 mm	0.5 W	0.5 W	Side Adjustment	10 %	Cermet	1
Nidec Components Corporation CT-6ES105	PC Pins	1 MOhms	100 ppm/°C	Through Hole	0.276 in	0.323 in	7 mm	8.2 mm	0.5 W	0.5 W	Side Adjustment	10 %	Cermet	1
Nidec Components Corporation CT-6ES500	PC Pins	50 Ohms	100 ppm/°C	Through Hole	0.276 in	0.323 in	7 mm	8.2 mm	0.5 W	0.5 W	Side Adjustment	10 %	Cermet	1
Nidec Components Corporation CT-6ES101	PC Pins	100 Ohms	100 ppm/°C	Through Hole	0.276 in	0.323 in	7 mm	8.2 mm	0.5 W	0.5 W	Side Adjustment	10 %	Cermet	1
Nidec Components Corporation CT-6ES202	PC Pins	2 kOhms	100 ppm/°C	Through Hole	0.276 in	0.323 in	7 mm	8.2 mm	0.5 W	0.5 W	Side Adjustment	10 %	Cermet	1
Nidec Components Corporation CT-6ES203	PC Pins	20 kOhms	100 ppm/°C	Through Hole	0.276 in	0.323 in	7 mm	8.2 mm	0.5 W	0.5 W	Side Adjustment	10 %	Cermet	1
